74705 (SS 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 403320567 - 404313999) Deck Lift Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

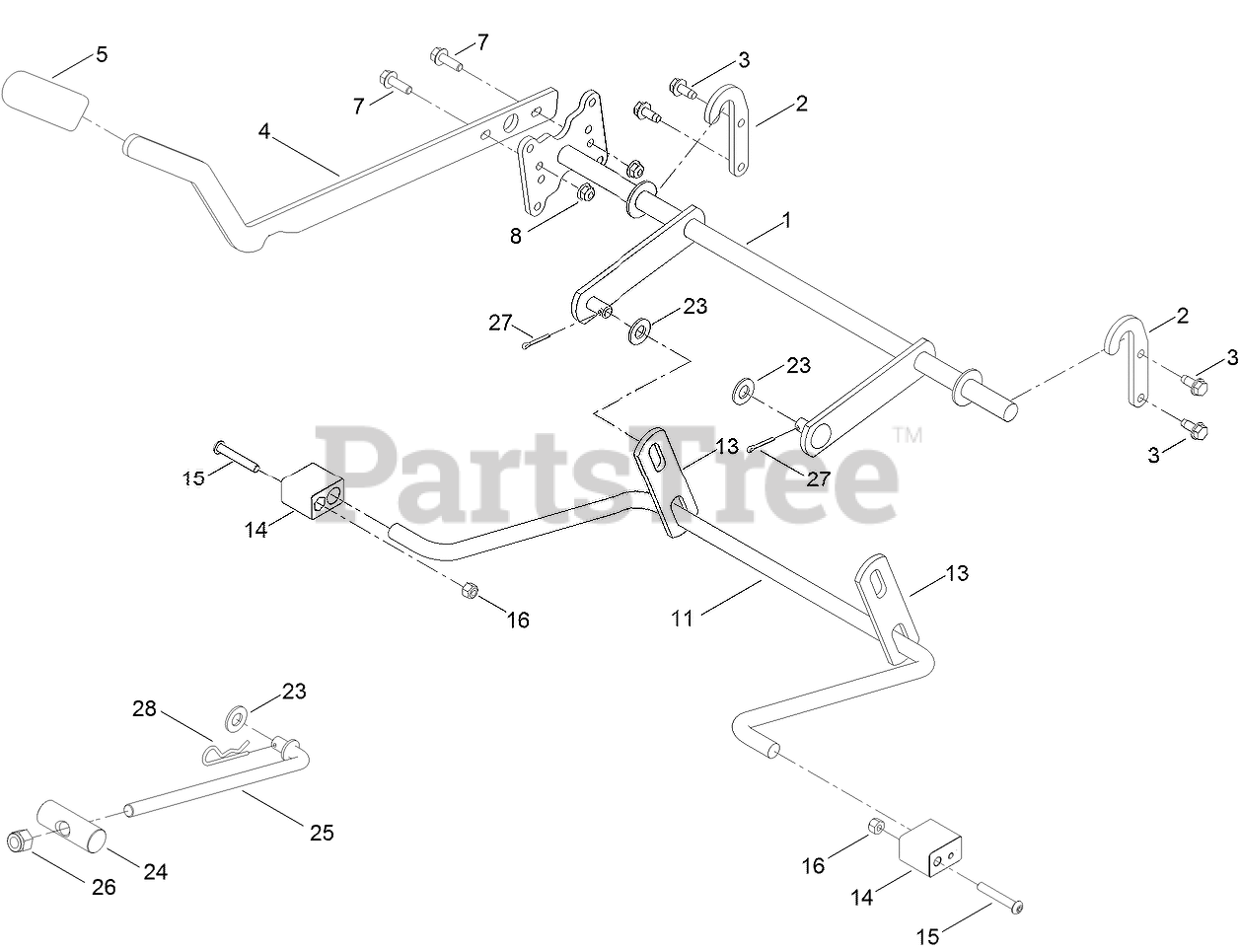

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 132-6872-03

LIFT-DECK, NARROW

$53.99

$

Usually ships in 3-6 days

0

2

Toro 119-8875

BRACKET-LIFT
(Superseded to 138-7233)

$6.49

$

In Stock, only 3 left!

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 119-3427-03

LEVER-LIFT

$25.99

$

Usually ships in 3-6 days

0

5

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

7

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

11

Toro 138-7234

ARM-LIFT, REAR

$35.99

$

Usually ships in 3-6 days

0

13

Toro 108-7840

LINK-LIFT
(Superseded to 138-7235)

$7.99

$

In Stock, Qty 8

0

14

Toro 108-7845

BLOCK-PIVOT

$17.99

$

In Stock, only 2 left!

0

15

Toro 120-5499

SCREW-HSBH

$2.99

$

In Stock, Qty 17

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 119-8810

PIN-PIVOT

$17.99

$

In Stock, only 2 left!

0

25

Toro 133-4319

ROD-MOUNT, DECK

$15.99

$

In Stock, Qty 6

0

26

Toro 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

27

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

28

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0
