74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) HEAD ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

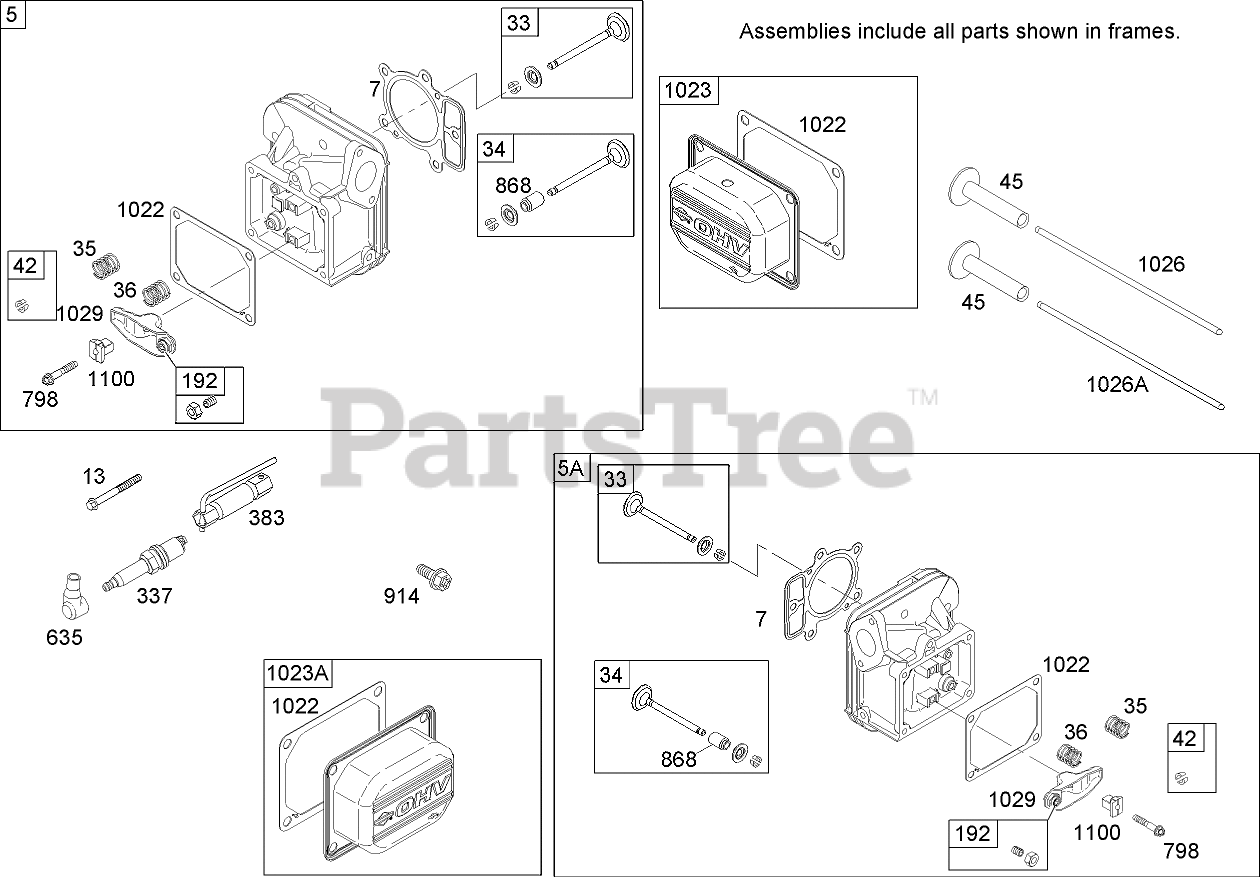

HEAD ASSEMBLY Parts Diagram

  • Title
5

Briggs & Stratton 693998

Head-Cylinder (Cylinder 1)
(Superseded to 796231)

Note: Obtain parts from www.briggsandstratton.com

$235.99

$

In Stock, Qty 20+

0

5A

Briggs & Stratton 693999

Head-Cylinder (Cylinder 2)
(Superseded to 796232)

Note: Obtain parts from www.briggsandstratton.com

$202.99

$

In Stock, Qty 11

0

7

Briggs & Stratton 693997

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 693997

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$24.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 693997

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set (Ref. No. 1095)

$24.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 791130

Screw (Cylinder Head)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

33

Briggs & Stratton 499596

Valve-Exhaust
(Superseded to 697576)

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 697464

Valve-Intake
(Superseded to 792200)

Note: Obtain parts from www.briggsandstratton.com

$25.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 694865

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 2 left!

0

36

Briggs & Stratton 694865

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 2 left!

0

42

Briggs & Stratton 499586

Keeper-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690977

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 690083

Adjuster-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, only 1 left!

0

337

Toro 491055s

Plug-Spark

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

383

Toro 19374s

Wrench-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

635

Toro 66538s

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

798

Briggs & Stratton 697890

Screw (Rocker Arm)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 7

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Engine Gasket Set (Ref. No. 358)

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Valve Gasket Set (Ref. No. 1095)

$10.99

$

In Stock, Qty 20+

0

914

Briggs & Stratton 691127

Screw (Rocker Arm)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 13

0

1022

Briggs & Stratton 690971

Gasket-Cover, Rocker

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 690971

Gasket-Cover, Rocker

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 690971

Gasket-Cover, Rocker

Note: Included in Valve Gasket Set (Ref. No. 1095)

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 499599

Cover-Rocker (Cylinder 1)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1023A

Briggs & Stratton 499600

Cover-Rocker (Cylinder 2)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 690981

Rod-Push (Steel)
(Superseded to 597785)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 690982

Rod-Push (Aluminum)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 690972

Arm-Rocker

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, Qty 13

0

1100

Briggs & Stratton 791959

Pivot-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 2 left!

0
