74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) GOVERNOR ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

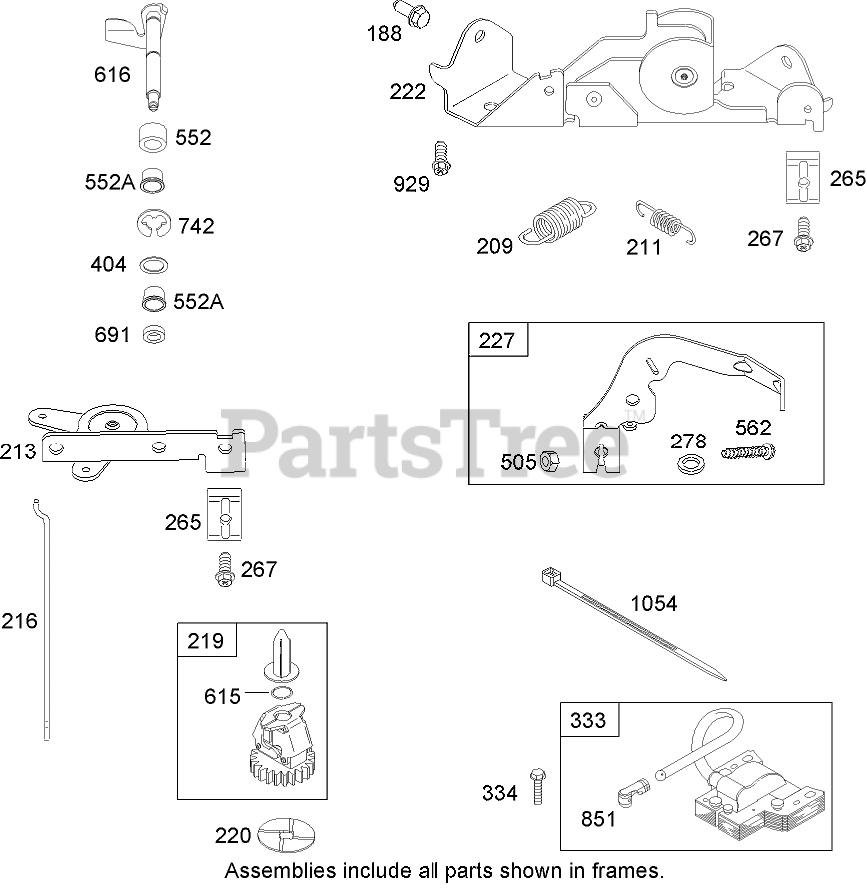

GOVERNOR ASSEMBLY Parts Diagram

  • Title

188

Briggs & Stratton 691108

Screw (Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

209

Briggs & Stratton 791606

Spring-Governor

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 691019

Spring-Idle, Governed

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

213

Briggs & Stratton 691021

Bracket-Control, Choke

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 3 left!

0

216

Briggs & Stratton 691022

Link-Choke

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, only 1 left!

0

219

Briggs & Stratton 698231

Gear-Governor
(Superseded to 793338)

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 690412

Washer (Governor Gear)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

222

Briggs & Stratton 698761

Bracket-Control
(Superseded to 592661)

Note: Obtain parts from www.briggsandstratton.com

$61.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 792492

Lever-Control, Governor
(Superseded to 798856)

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, Qty 9

0

265

Briggs & Stratton 691024

Clamp-Casing

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 4 left!

0

267

Briggs & Stratton 695134

Screw (Casing Clamp)
(Superseded to 792629)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

278

Briggs & Stratton 792651

Washer (Governor Control Lever)
(Superseded to 798856)

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, Qty 9

0

333

Briggs & Stratton 691060

Armature-Magneto
(Superseded to 592846)

Note: Obtain parts from www.briggsandstratton.com

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw (Magneto Armature)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

404

Briggs & Stratton 690442

Washer (Governor Crank)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 5

0

505

Briggs & Stratton 691029

Nut (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 690552

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 9

0

552A

Briggs & Stratton 690553

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 690311

Bolt (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 698290

Retainer-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 9

0

616

Briggs & Stratton 691045

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 790574

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

691

Briggs & Stratton 790574

Seal-Shaft, Governor

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

In Stock, Qty 20+

0

742

Briggs & Stratton 690328

Retainer-E Ring

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 6

0

851

Toro 493880s

Terminal-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

929

Briggs & Stratton 691003

Screw (Choke Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

1054

Briggs & Stratton 280275

Tie-Cable

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0
