74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) FUEL TANK & CONTROL POD ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

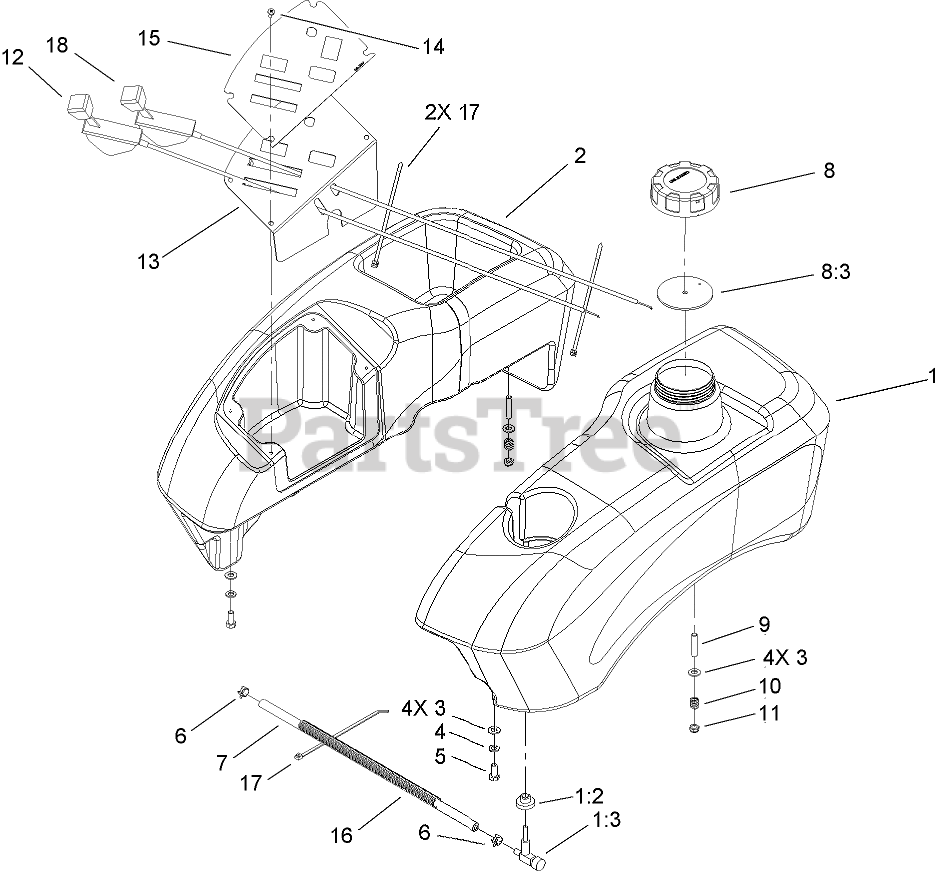

FUEL TANK & CONTROL POD ASSEMBLY Parts Diagram

  • Title

1

Toro 105-3494

Fuel Tank ASM

$512.99

$

Usually ships in 3-6 days

0

1:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

1:3

Toro 110-6565

VALVE-FUEL

$38.99

$

Usually ships in 3-6 days

0

2

Toro 105-1918

Tank-Console

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

6

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

7

Toro 109-0301

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

8

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

8:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

9

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

10

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

11

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

12

Toro 110-1861

CABLE-THROTTLE

$102.99

$

Usually ships in 3-6 days

0

13

Toro 104-8054-03

PANEL-CONTROL

$

$

Not available

14

Toro 3250-14

SCREW-PPH

$6.99

$

Usually ships in 3-6 days

0

15

Toro 108-2338

DECAL-PANEL, CONTROL

$

$

Not available

16

Toro 105-1854

COVER-CONDUIT

$

$

Not available

17

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

18

Toro 107-9108

CABLE-CHOKE

$

$

Not available
