74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) CRANKSHAFT ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

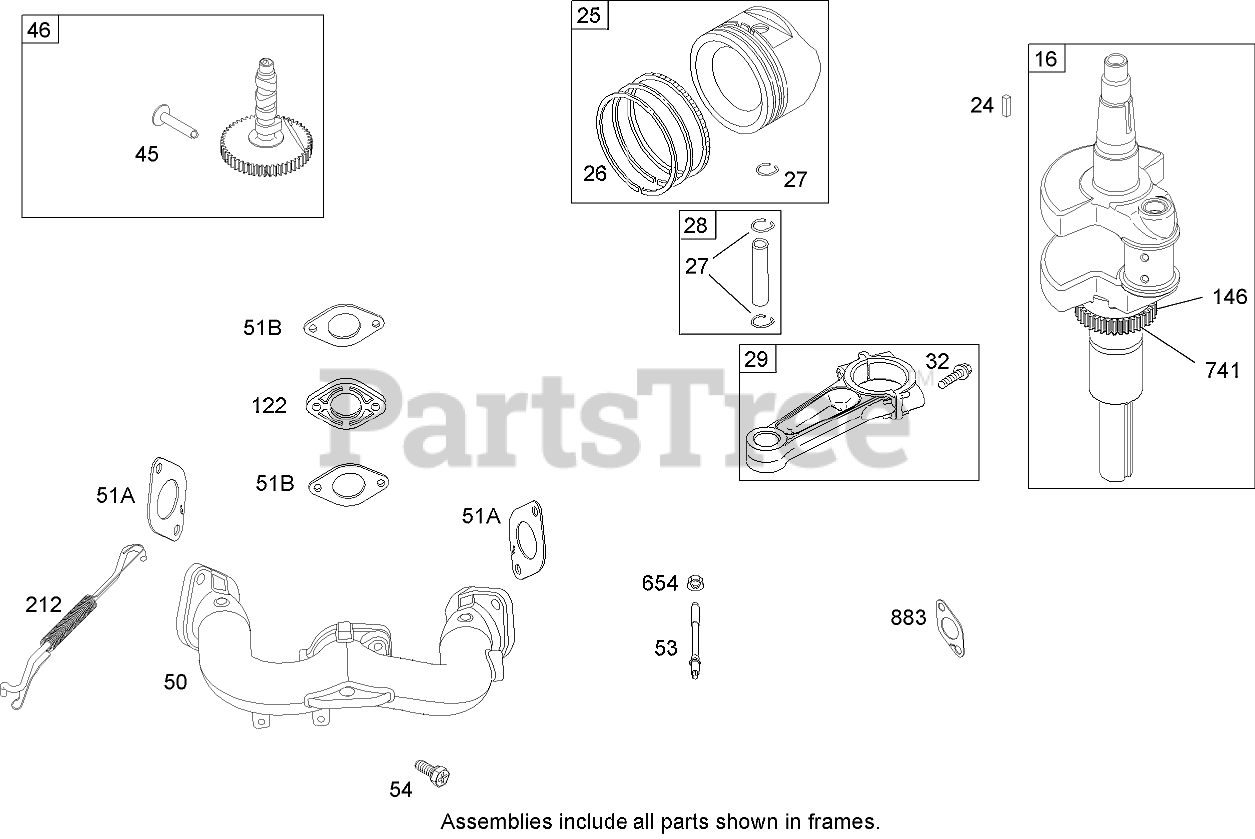

CRANKSHAFT ASSEMBLY Parts Diagram

  • Title

16

Briggs & Stratton 699700

Crankshaft
(Superseded to 595707)

Note: Obtain parts from www.briggsandstratton.com

$385.99

$

Usually ships in 2-12 days

0

24

Toro 222698s

Key-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

25

Briggs & Stratton 792117

Piston ASM (STD)

Note: Obtain parts from www.briggsandstratton.com

$152.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 792144

Piston ASM (.020 O S)

Note: Obtain parts from www.briggsandstratton.com

$132.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 792026

Ring Set (STD)

Note: Obtain parts from www.briggsandstratton.com

$45.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 792073

Ring Set (.020 O S)

Note: Obtain parts from www.briggsandstratton.com

$61.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 690975

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 10

0

28

Briggs & Stratton 690229

Pin-Piston (STD)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 699699

Rod-Connecting
(Superseded to 796209)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, Qty 20+

0

32

Briggs & Stratton 690976

Screw (Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 17

0

45

Briggs & Stratton 690977

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 790562

Camshaft
(Superseded to 797242)

Note: Obtain parts from www.briggsandstratton.com

$122.99

$

In Stock, Qty 15

0

50

Briggs & Stratton 699801

Manifold-Intake

Note: Obtain parts from www.briggsandstratton.com

$102.99

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 699800

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$3.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 699800

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$3.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 699800

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 699800

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, only 3 left!

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.49

$

In Stock, only 2 left!

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.49

$

In Stock, only 2 left!

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$4.49

$

In Stock, only 2 left!

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$4.49

$

In Stock, only 2 left!

0

53

Briggs & Stratton 690951

Stud (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0

54

Briggs & Stratton 699816

Screw (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 7

0

122

Briggs & Stratton 699802

Spacer-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 690979

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 7

0

212

Briggs & Stratton 792265

Link-Throttle
(Superseded to 597429)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

654

Briggs & Stratton 690958

Nut (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 3 left!

0

741

Briggs & Stratton 690980

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 19

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.99

$

In Stock, Qty 19

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Included in Valve Gasket Set (Ref. No. 1095)

$4.99

$

In Stock, Qty 19

0
