74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) CARBURETOR OVERHAUL KIT Parts Diagram

48" TimeCutter Zero-Turn Mower

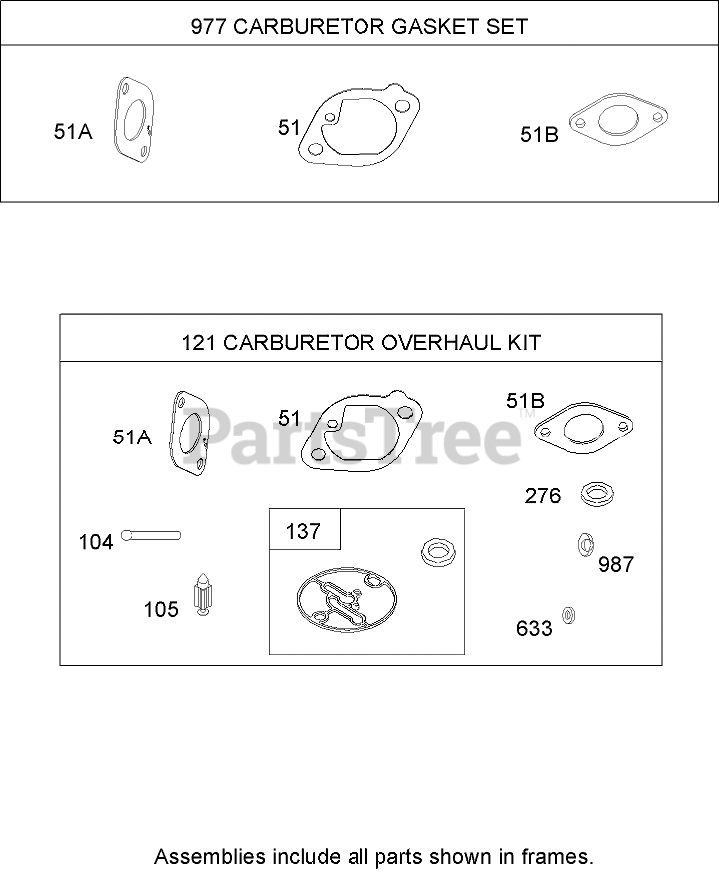

CARBURETOR OVERHAUL KIT Parts Diagram

  • Title

51

Briggs & Stratton 690949

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 690949

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 690949

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 690949

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 699800

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 699800

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$3.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 699800

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 699800

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$3.49

$

In Stock, only 3 left!

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.49

$

In Stock, only 1 left!

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$4.49

$

In Stock, only 1 left!

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$4.49

$

In Stock, only 1 left!

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.49

$

In Stock, only 1 left!

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 2 left!

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 698537

Valve-Needle, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$15.99

$

In Stock, Qty 17

0

105

Briggs & Stratton 698537

Valve-Needle, Float

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, Qty 17

0

121

Briggs & Stratton 699814

Carburetor Overhaul Kit

Note: Obtain parts from www.briggsandstratton.com

$59.99

$

In Stock, only 1 left!

0

137

Briggs & Stratton 698781

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 698781

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$9.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 695410

Washer-Sealing

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

In Stock, Qty 15

0

276

Briggs & Stratton 695410

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 15

0

633

Briggs & Stratton 695414

Seal-Shaft, Choke and Throttle
(Superseded to 806131)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 695414

Seal-Shaft, Choke and Throttle
(Superseded to 806131)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.99

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 699815

Carburetor Gasket Set
(Superseded to 699814)

Note: Obtain parts from www.briggsandstratton.com

$59.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 699813

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 699813

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

In Stock, only 1 left!

0
