74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) AIR CLEANER ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

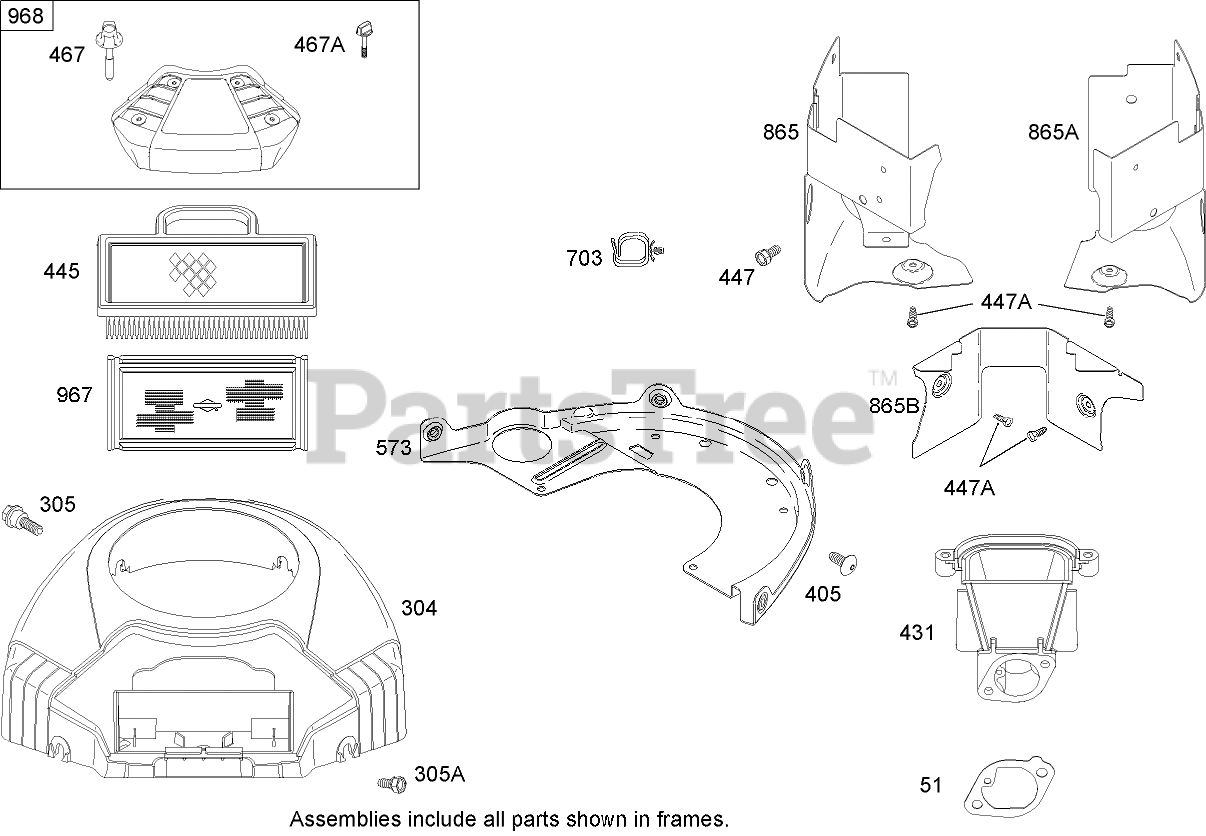

AIR CLEANER ASSEMBLY Parts Diagram

  • Title

51

Briggs & Stratton 690949

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 690949

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 690949

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 690949

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.49

$

In Stock, Qty 20+

0

304

Briggs & Stratton 790688

Housing-Blower

Note: Obtain parts from www.briggsandstratton.com

$202.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691005

Screw (Blower Housing)
(Superseded to 594618)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

305A

Briggs & Stratton 790690

Screw (Blower Housing to Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

405

Briggs & Stratton 697820

Screw (Back Plate)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 3 left!

0

431

Briggs & Stratton 790628

Elbow-Cleaner, Air
(Superseded to 798861)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

445

Toro 499486s

Filter-Cartridge, Air Cleaner

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

447

Briggs & Stratton 691003

Screw (Air Guide Cover)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

447A

Briggs & Stratton 691108

Screw (Air Guide Cover)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

467

Briggs & Stratton 790697

Knob-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 6

0

467A

Briggs & Stratton 691008

Knob-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 2 left!

0

573

Briggs & Stratton 790444

Plate-Back
(Superseded to 594902)

Note: Obtain parts from www.briggsandstratton.com

$59.99

$

Usually ships in 2-12 days

0

703

Briggs & Stratton 691010

Clip

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

865

Briggs & Stratton 691012

Cover-Guide, Air
(Superseded to 796852)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

Usually ships in 2-12 days

0

865A

Briggs & Stratton 691014

Cover-Guide, Air (Cylinder 2)
(Superseded to 591666)

Note: Obtain parts from www.briggsandstratton.com

$47.99

$

Usually ships in 2-12 days

0

865B

Briggs & Stratton 691015

Cover-Guide, Air (Valley)

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

Usually ships in 2-12 days

0

967

Toro 273638s

Filter-Cleaner, Pre

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

968

Briggs & Stratton 790689

Cover-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
