74701 (Z 17-52) - Toro 52" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) RH HYDRO TRANSAXLE ASSEMBLY NO. 100-7360 Parts Diagram

52" TimeCutter Zero-Turn Mower

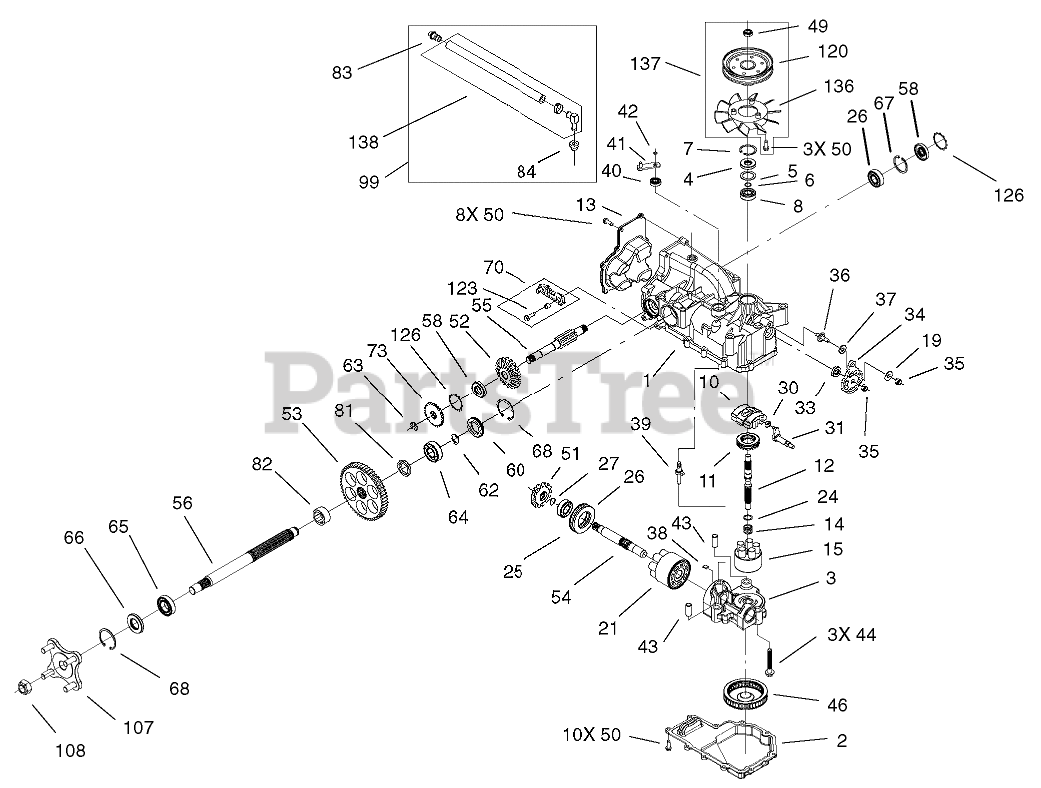

RH HYDRO TRANSAXLE ASSEMBLY NO. 100-7360 Parts Diagram

  • Title
1

Toro 105-1867

Main Housing Kit
(Superseded to 107-1700)

$1783.99

$

Usually ships in 3-6 days

0

2

Toro 105-1868

Housing-Lower

$

$

Not available

3

Toro 105-1869

CENTER SECTION KIT ASM

$

$

Not available

4

Toro 92-6543

SEAL-LIP

$20.99

$

Usually ships in 3-6 days

0

5

Toro 104-2104

SPACER

$10.99

$

Usually ships in 3-6 days

0

6

Toro 94-1902

RING-WIRE, RETAINING

$6.99

$

Usually ships in 3-6 days

0

7

Toro 94-1903

RING-RETAINING

$6.49

$

Usually ships in 3-6 days

0

8

Toro 94-1904

BEARING-SHAFT, BALL

$137.99

$

Usually ships in 3-6 days

0

10

Toro 94-1907

SWASHPLATE-VARIABLE

$517.99

$

Usually ships in 3-6 days

0

11

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

12

Toro 104-5067

Shaft-Input

$

$

Not available

13

Toro 105-1870

COVER-BACK

$

$

Not available

14

Toro 94-1936

SPRING-BLOCK

$8.49

$

Usually ships in 3-6 days

0

15

Toro 104-2106

CYLINDER BLOCK ASM
(Superseded to 103-2666)

$494.99

$

Usually ships in 3-6 days

0

19

Toro 104-2146

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 6

0

21

Toro 94-1913

CYLINDER BLOCK ASM
(Superseded to 127-3867)

$220.99

$

Usually ships in 3-6 days

0

24

Toro 94-1937

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

25

Toro 94-6923

BEARING-THRUST

$119.99

$

Usually ships in 3-6 days

0

26

Toro 104-5311

BEARING-BALL

$44.99

$

In Stock, Qty 5

0

27

Toro 104-5307

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

30

Toro 94-1910

GUIDE-SLOT

$21.99

$

Usually ships in 3-6 days

0

31

Toro 104-2112

TRUNNION ASM

$306.99

$

Usually ships in 3-6 days

0

33

Toro 92-6544

SEAL-LIP

$

$

Not available

34

Toro 105-1871

ARM-CONTROL

$

$

Not available

35

$13.99

$

Usually ships in 3-6 days

0

36

$38.99

$

Usually ships in 3-6 days

0

37

Toro 105-1873

PUCK-FRICTION

$8.99

$

In Stock, only 2 left!

0

38

Toro 94-6925

PLATE-BYPASS

$

$

Not available

39

Toro 94-1914

ACTUATOR-BYPASS

$64.99

$

Usually ships in 3-6 days

0

40

Toro 92-6545

SEAL-LIP

$17.99

$

Usually ships in 3-6 days

0

41

Toro 104-2117

ARM-BYPASS

$96.99

$

Usually ships in 3-6 days

0

42

Toro 936109

RING-RETAINING

$11.99

$

Usually ships in 3-6 days

0

43

$25.99

$

Usually ships in 3-6 days

0

44

$10.99

$

Usually ships in 3-6 days

0

46

Toro 105-1874

FILTER

$

$

Not available

49

Toro 105-1875

NUT-LOCK

$7.99

$

Usually ships in 3-6 days

0

50

$7.99

$

In Stock, only 1 left!

0

51

Toro 105-1876

GEAR-BEVEL, 14T

$

$

Not available

52

Toro 105-1877

GEAR-BEVEL, 19T

$

$

Not available

53

Toro 105-1878

GEAR-BEVEL, 53T

$

$

Not available

54

Toro 105-1879

SHAFT-MOTOR

$

$

Not available

55

Toro 105-1880

SHAFT-BRAKE

$

$

Not available

56

Toro 105-1881

SHAFT-AXLE

$

$

Not available

58

Toro 104-5310

SEAL-LIP

$36.99

$

In Stock, only 1 left!

0

60

Toro 105-1882

PLUG-SIDE SEAL

$

$

Not available

62

Toro 105-1883

RING-AXLE, RETAINING

$

$

Not available

63

Toro 105-1884

RING-RETAINING

$21.99

$

In Stock, only 1 left!

0

64

Toro 105-1885

Bearing-Ball

$68.99

$

Usually ships in 3-6 days

0

65

Toro 105-1886

BEARING-BALL

$68.99

$

In Stock, only 1 left!

0

66

$31.99

$

Usually ships in 3-6 days

0

67

Toro 104-5309

RING-RETAINING

$12.99

$

In Stock, only 1 left!

0

68

Toro 105-1888

RING-RETAINING, AXLE

$

$

Not available

70

Toro 105-1889

LH BRAKE ARM ASM

$89.99

$

In Stock, only 2 left!

0

73

Toro 105-1890

DISC-BRAKE

$87.99

$

Usually ships in 3-6 days

0

81

Toro 105-1891

BUSHING-AXLE

$43.99

$

Usually ships in 3-6 days

0

82

Toro 105-1892

BUSHING-AXLE
(Superseded to 105-1891)

$43.99

$

Usually ships in 3-6 days

0

83

Toro 104-2167

VENT CAP ASM
(Superseded to 93-3817)

$21.99

$

Usually ships in 3-6 days

0

84

Toro 104-2165

BUSHING-RUBBER

$

$

Not available

99

Toro 105-1893

KIT-BREATHER

$

$

Not available

100

Toro 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

107

Toro 105-1894

HUB ASM

$398.99

$

Usually ships in 3-6 days

0

108

$49.99

$

Usually ships in 3-6 days

0

120

Toro 105-1896

PULLEY
(Superseded to 121-5729)

$116.99

$

In Stock, only 1 left!

0

123

$10.99

$

Usually ships in 3-6 days

0

126

Toro 105-1898

RING-RETAINING

$18.99

$

Usually ships in 3-6 days

0

134

Toro 105-1899

SEAL KIT

Note: Not illustrated

$360.99

$

Usually ships in 3-6 days

0

136

Toro 105-1927

FAN
(Superseded to 121-5729)

$116.99

$

In Stock, only 1 left!

0

137

Toro 105-1928

FAN PULLEY KIT
(Superseded to 121-5729)

$116.99

$

In Stock, only 1 left!

0

138

Toro 105-1929

KIT-HOSE

$

$

Not available
