74701 (Z 17-52) - Toro 52" TimeCutter Zero-Turn Mower (SN: 210000001 - 210999999) (2001) OIL PAN / LUBRICATION ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

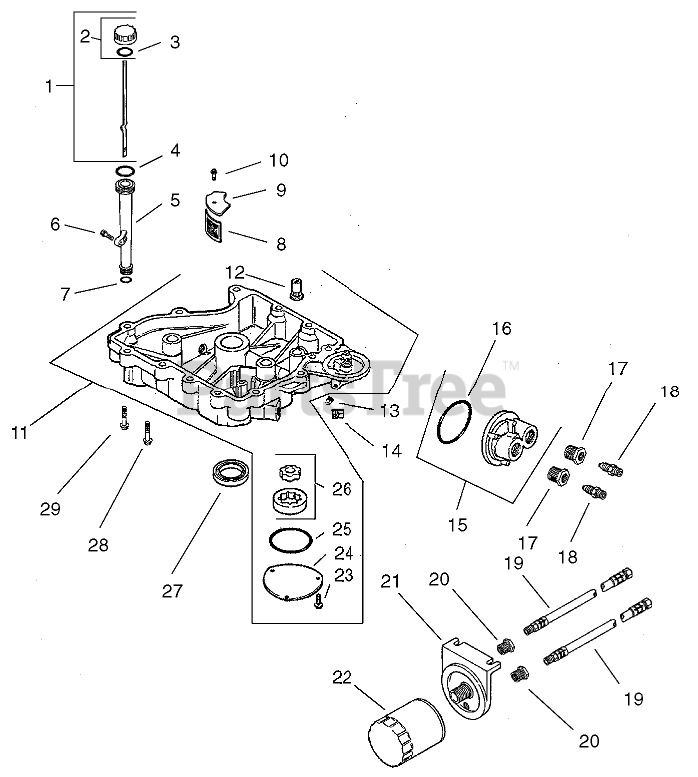

OIL PAN / LUBRICATION ASSEMBLY Parts Diagram

  • Title

1

Kohler 12 038 02-S

Dipstick (Includes 2, 3)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler 24 755 46-S

Kit, oil fill cap (Includes 3)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

In Stock, only 1 left!

0

3

Kohler 12 153 03-S

O-Ring
(Superseded to 25 153 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

4

Kohler 12 153 02-S

O-RING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 8

0

5

Kohler 12 123 04-S

OIL FILL TUBE KIT
(Superseded to 25 123 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

In Stock, only 1 left!

0

6

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

7

Kohler 12 153 01-S

O-RING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 16

0

8

Kohler 25 162 07-S

Screen-Pickup, Oil
(Superseded to 24 162 26-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 1 left!

0

9

Kohler 12 096 03-S

Cover-Screen, Oil Pickup

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, only 1 left!

0

10

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 12 199 50-S

Pan, oil (Includes 12, 23-26)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$581.99

$

Usually ships in 2-5 days

0

12

Kohler 25 462 09-S

Valve-Relief, Oil Pressure

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, only 1 left!

0

13

Kohler 25 139 52-S

Plug-Pipe (1/8in)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 1 left!

0

14

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

15

Kohler 24 029 02-S

Adapter, oil filter (Includes 16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$62.99

$

Usually ships in 2-5 days

0

16

Kohler 24 153 13-S

O-Ring
(Superseded to 24 153 25-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 2 left!

0

17

Kohler 25 158 10-S

Bushing, reducing 7/8x1/4x1/2 N.P.T.F.

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 3 left!

0

18

Kohler 52 136 02-S

Nipple-Metallic

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

Usually ships in 2-5 days

0

Kohler 52 326 11-S

Hose, oil (red tracer) (2) 1/8-27 N.P.T.F. male coupling, 1/4-18 N.P.S.M. female coupling x 23in long

Note: Call PartsTree Customer Service for more information on Kohler Parts

$83.99

$

In Stock, only 3 left!

0

20

Kohler 25 158 15-S

Bushing, reducing 1/8x1/4 N.P.T.F.

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 4 left!

0

21

Kohler 12 029 02-S

Adapter, oil filter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

22

Kohler 12 050 01-S

FILTER-OIL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, Qty 20+

0

23

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

24

Kohler 12 096 34-S

Cover-Pump, Oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

In Stock, only 1 left!

0

25

Kohler 12 153 06-S

O-Ring (Oil Pump Cover)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 4 left!

0

26

Kohler 12 393 01-S

Oil Pump ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

27

Kohler 12 032 03-S

Seal-Oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.99

$

Usually ships in 2-5 days

0

28

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

29

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0
