74701 (17-52 ZX) - Toro 52" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

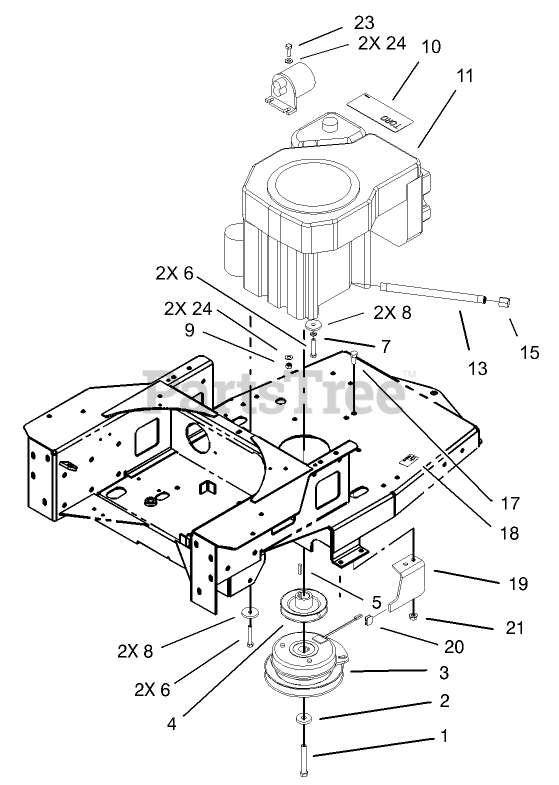

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3212-12

SCREW-HH

$3.49

$

In Stock, Qty 14

0

2

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

3

Toro 104-3624

CLUTCH
(Superseded to 109-7035)

$485.99

$

Usually ships in 3-6 days

0

4

Toro 100-7314

PUMP DRIVE PULLEY ASM

$218.99

$

Usually ships in 3-6 days

0

5

Toro 5-7280

KEY

$5.99

$

In Stock, only 1 left!

0

6

Toro 33114-030

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 62-7190

SPACER-STEEL

$5.49

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 105-7034

Decal-Engine, Kohler

$

$

Not available

11

Engine-Kohler, Cv490s-27503

Note: Not serviced separately

$

$

Not available

13

Toro 104-8018

NIPPLE-PIPE

$

$

Not available

15

Toro 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days

0

17

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

18

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

19

Toro 104-3613-03

STOP-CLUTCH

$

$

Not available

20

Toro 98-5023

BUMPER

$8.49

$

Usually ships in 3-6 days

0

21

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
