74701 (17-52 ZX) - Toro 52" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) 52IN DECK BELT DRIVE AND LIFT ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

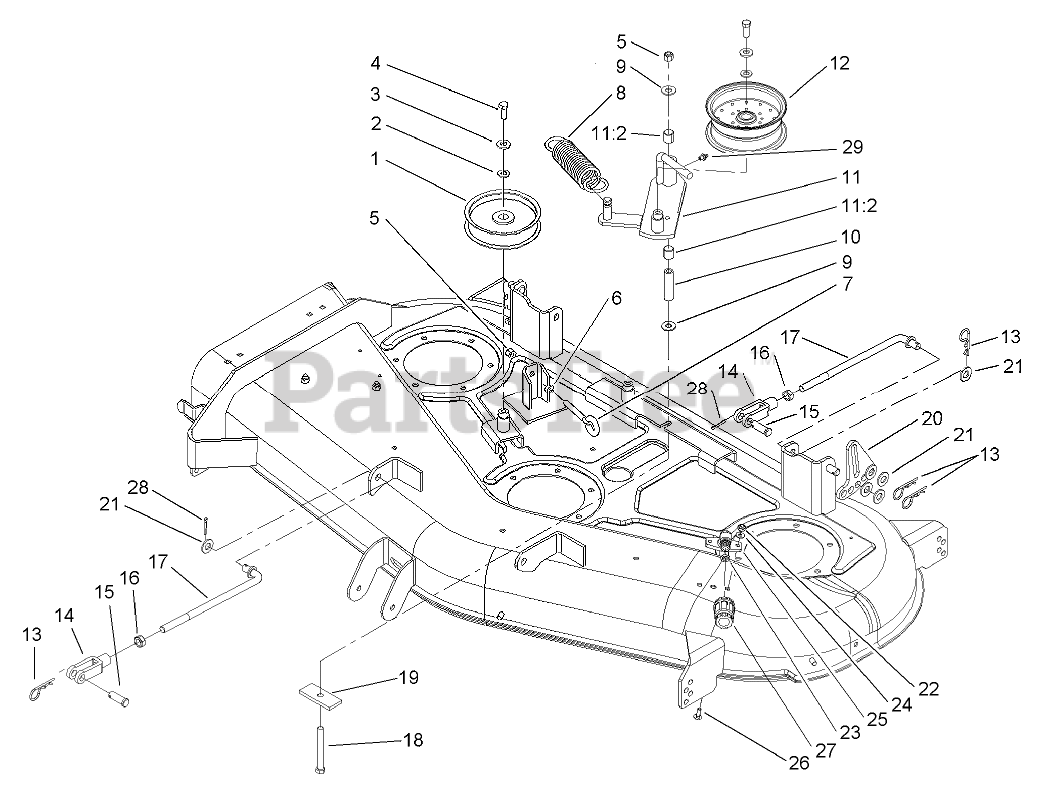

52IN DECK BELT DRIVE AND LIFT ASSEMBLY Parts Diagram

  • Title
1

Toro 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 6

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

3

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

6

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

7

Toro 94-2547

BOLT-EYE

$27.99

$

Usually ships in 3-6 days

0

8

Toro 1-633151

SPRING-EXTENSION
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

9

Toro 1-809107

WASHER-HARDENED

$5.49

$

In Stock, only 2 left!

0

10

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

11

Toro 99-3879

IDLER ARM ASM

$

$

Not available

11:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

12

Toro 1-413099

PULLEY-IDLER
(Superseded to 116-4666)

$67.99

$

In Stock, Qty 17

0

13

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

14

Toro 100-7338

CLEVIS

$60.99

$

In Stock, only 3 left!

0

15

Toro 104-3634

PIN-CLEVIS

$20.99

$

In Stock, only 2 left!

0

16

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

17

Toro 104-8047

ROD-TRUNION
(Superseded to 131-3945)

$43.99

$

In Stock, only 2 left!

0

18

Toro 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

19

Toro 104-8037-01

PLATE-BOLT, RETAINER

$5.49

$

In Stock, only 1 left!

0

20

Toro 104-3699-01

LINK-HOC, ADJUSTING

$72.99

$

In Stock, only 2 left!

0

21

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

23

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

24

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

26

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

27

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

28

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

29

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0
