74695 (MX 5075 T) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400000000 - 412699999) Engine Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

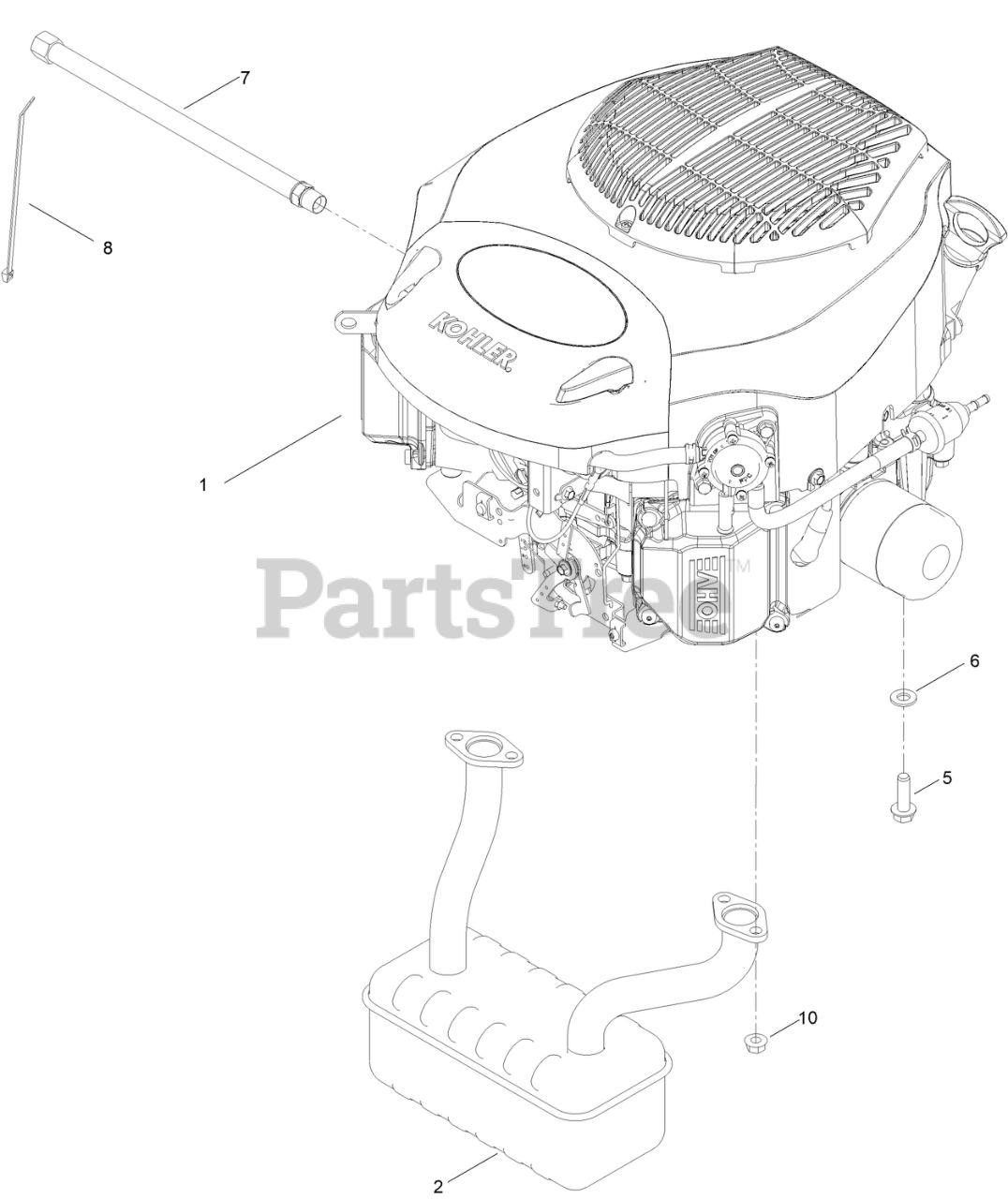

Engine Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER, KT735 LOW SPEED

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, KT735 LOW SPEED

Note: This is a Kohler part. Please use the Kohler Engine catalog.

$

$

Not available

1:1

Toro 110-6697

GASKET-EXHAUST

Note: Not illustrated

$

$

Not available

1:3

Toro 281-2

PLUG-PIPE, SQH

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0

2

Toro 139-5868

MUFFLER

$120.99

$

Usually ships in 3-6 days

0

5

Toro 139-2576

SCREW-HWH, THD ROLL

$2.99

$

Usually ships in 3-6 days

0

6

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

7

Toro 117-1261

HOSE-DRAIN, OIL

$29.99

$

In Stock, only 3 left!

0

8

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

10

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 11

0
