74694 (MX 5075 T) - Toro 50" TimeCutter Zero-Turn Mower (SN: 407700000 - 409479999) Frame Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

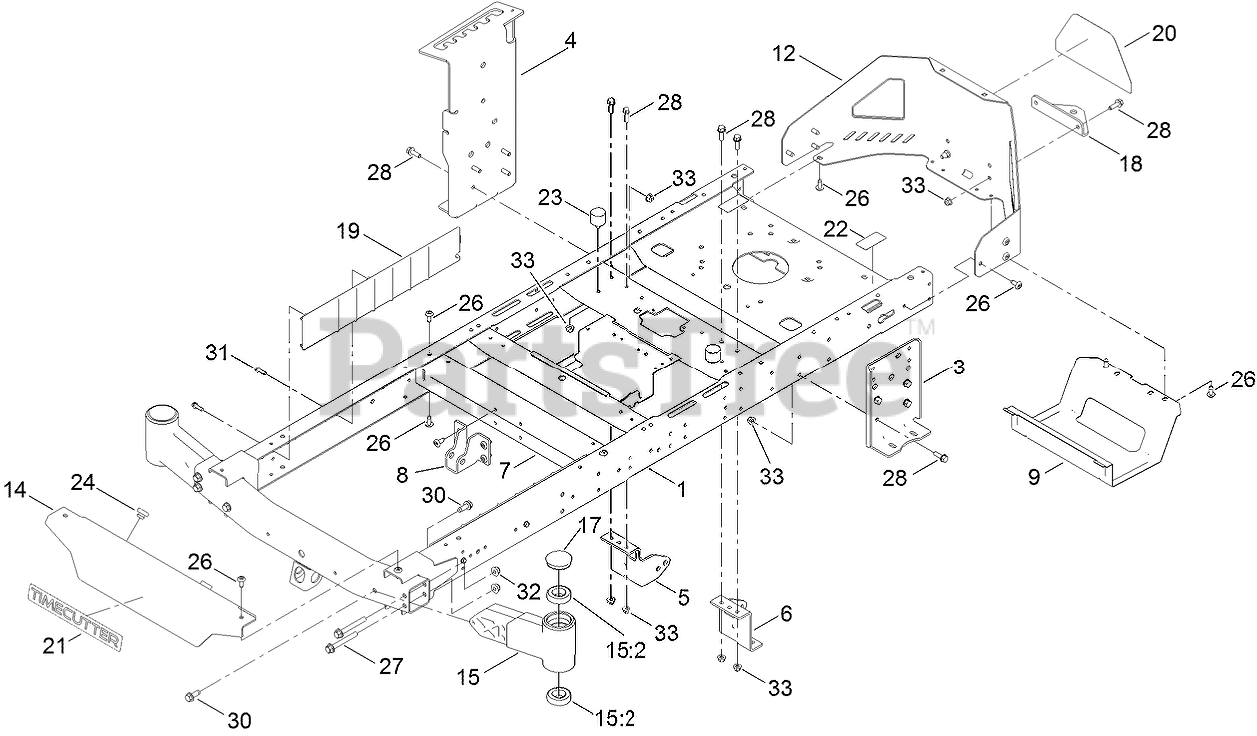

Frame Assembly Parts Diagram

  • Title
1

Toro 137-9820-01

FRAME ASSEMBLY

$568.99

$

Usually ships in 3-6 days

0

3

Toro 138-7520-01

PLATE-MOUNT, HYDRO

$26.99

$

Usually ships in 3-6 days

0

4

Toro 139-2352-01

PLATE-MOUNT HYDRO, RH

$58.99

$

Usually ships in 3-6 days

0

5

Toro 137-7020-01

MOUNT-HYDRO, FRONT (RIGHT)

$15.99

$

Usually ships in 3-6 days

0

6

Toro 139-3211-01

MOUNT-HYDRO, FRONT (LEFT)

$14.99

$

In Stock, only 1 left!

0

7

Toro 138-2527-01

BRACE-CROSS, LOWER

$38.99

$

Usually ships in 3-6 days

0

8

Toro 139-3260-01

BRACKET-MOUNT DAMPER, LOWER

$13.99

$

Usually ships in 3-6 days

0

9

Toro 138-0867-03

GUARD-MUFFLER

$33.99

$

Usually ships in 3-6 days

0

12

Toro 138-9820-03

GUARD-ENGINE

$88.99

$

Usually ships in 3-6 days

0

14

Toro 138-7596-01

FOOTREST

$56.99

$

Usually ships in 3-6 days

0

15

Toro 140-2097

AXLE STUB ASM

$93.99

$

Usually ships in 3-6 days

0

15:2

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

17

Toro 138-7200

CAP-GREASE

$5.49

$

In Stock, only 1 left!

0

18

Toro 117-1232-03

BRACKET-HITCH

$29.99

$

In Stock, only 1 left!

0

19

Toro 138-7516

GUARD-RAIL

$14.99

$

Usually ships in 3-6 days

0

20

Toro 139-5890

DECAL-TIMECUTTER

$6.49

$

In Stock, only 3 left!

0

21

Toro 139-2387

DECAL-TIMECUTTER

$3.99

$

Usually ships in 3-6 days

0

22

Toro 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

23

Toro 137-4803

BUMPER-RUBBER

$4.49

$

Usually ships in 3-6 days

0

24

Toro 140-3460

BUMPER-RUBBER

$1.49

$

Usually ships in 3-6 days

0

26

$1.49

$

In Stock, Qty 6

0

27

Toro 139-2429

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

28

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

30

Toro 139-2428

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

31

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

32

Toro 139-2430

NUT-HF, NI

$1.49

$

Usually ships in 3-6 days

0

33

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0
