74694 (MX 5075 T) - Toro 50" TimeCutter Zero-Turn Mower (SN: 407700000 - 409479999) Caster, Wheel and Tire Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

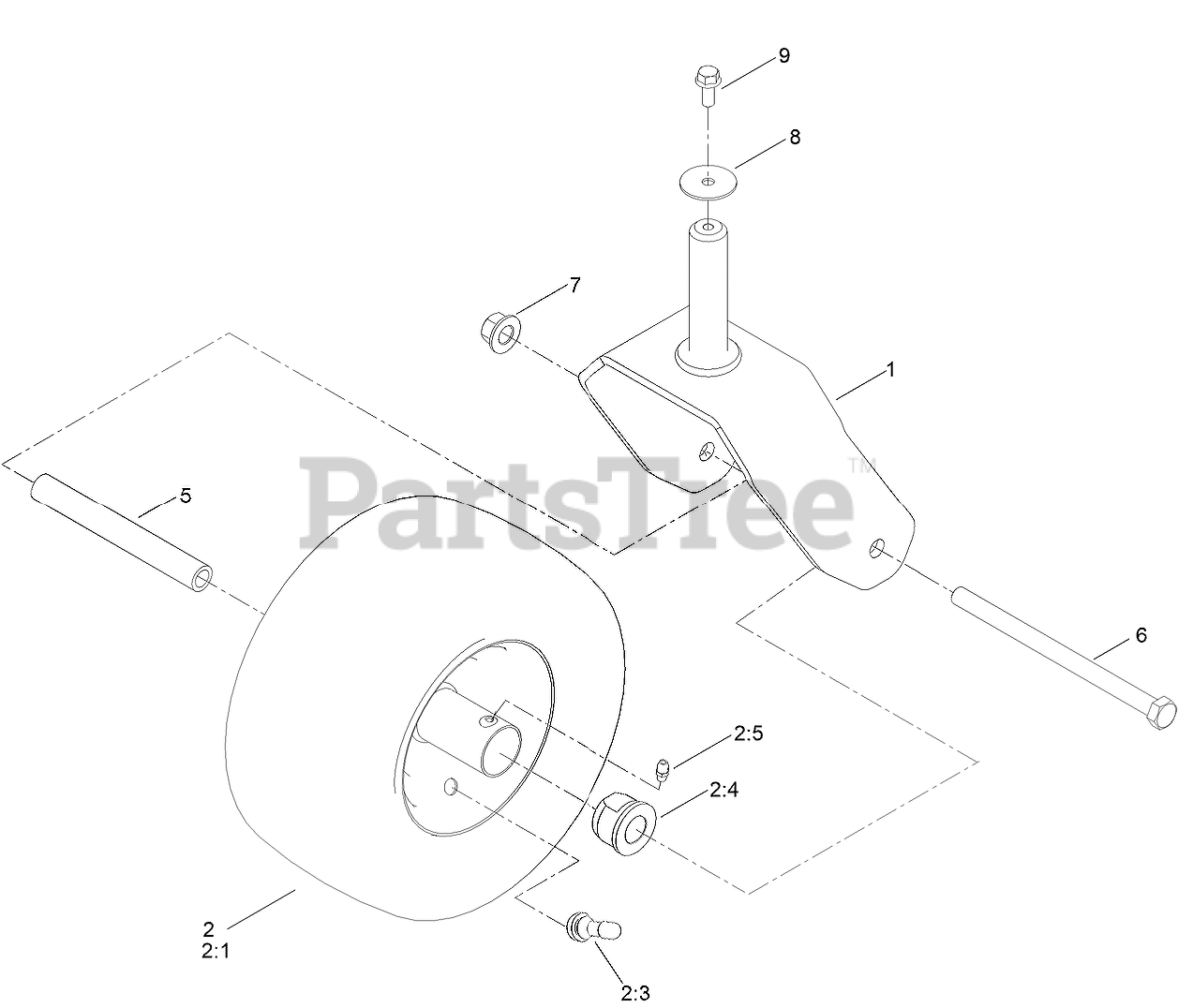

Caster, Wheel and Tire Assembly Parts Diagram

  • Title
1

Toro 138-9839-01

FORK ASM

$67.99

$

In Stock, Qty 12

0

2

Toro 139-5843

TIRE ASM

$93.99

$

In Stock, Qty 18

0

2:1

$67.99

$

In Stock, only 2 left!

0

2:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

2:4

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

2:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5

Toro 138-9803

SPACER-SPANNER

$9.49

$

In Stock, Qty 13

0

6

Toro 139-2608

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

7

Toro 139-1689

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

8

Toro 115-1151

WASHER-FLAT

$3.49

$

Usually ships in 3-6 days

0

9

Toro 139-2598

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0
