74690 (MX 4275 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 411000000 - 411699999) Deck Lift Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

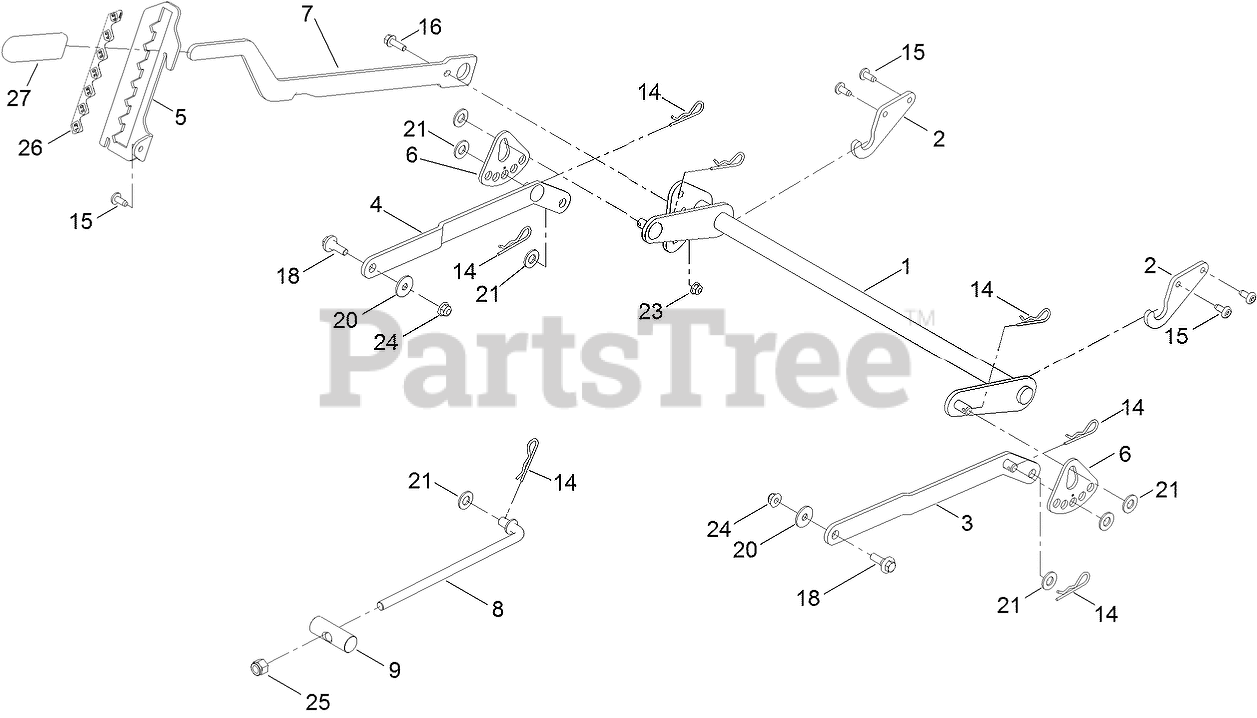

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 137-7093-03

DECK LIFT ASM

$62.99

$

Usually ships in 3-6 days

0

2

Toro 138-6021

BRACKET-PIVOT, DECKLIFT

$11.99

$

Usually ships in 3-6 days

0

3

Toro 137-9844

LH ARM ASM

$18.99

$

Usually ships in 3-6 days

0

4

Toro 137-9846

RH ARM ASM

$18.99

$

Usually ships in 3-6 days

0

5

Toro 139-2350-01

BRACKET-HOC

$17.99

$

Usually ships in 3-6 days

0

6

Toro 138-2564

PLATE-ADJUSTMENT, HOC

$8.49

$

Usually ships in 3-6 days

0

7

Toro 137-7087-03

LEVER-LIFT

$23.99

$

Usually ships in 3-6 days

0

8

Toro 138-6050

ROD-MOUNT, DECK

$13.99

$

In Stock, only 1 left!

0

9

Toro 119-8810

PIN-PIVOT

$17.99

$

In Stock, only 2 left!

0

14

Toro 139-2562

PIN-HAIR

$1.49

$

In Stock, Qty 9

0

15

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

16

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

18

Toro 137-9847

SCREW-SHOULDER

$1.49

$

In Stock, only 4 left!

0

20

Toro 140-5063

WASHER-HARDENED, CZ

$2.99

$

In Stock, only 1 left!

0

21

Toro 139-2611

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

23

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

25

Toro 139-1725

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

26

Toro 140-2748

DECAL-HOC

$6.49

$

Usually ships in 3-6 days

0

27

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0
