74688 (ZS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) Motion Control Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

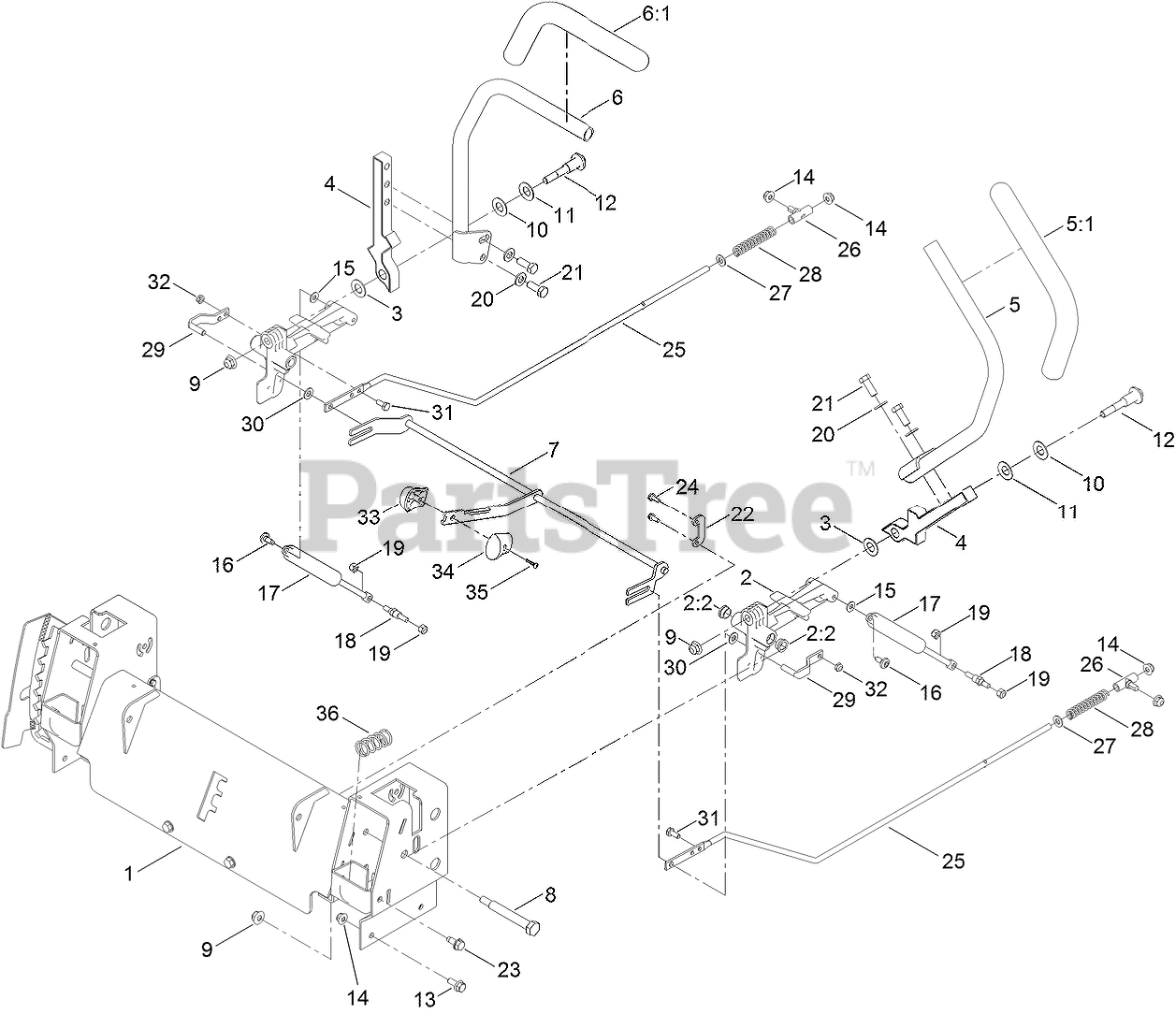

Motion Control Assembly Parts Diagram

  • Title
1

Toro 137-7038-03

CONTROL BOX ASM

$187.99

$

Usually ships in 3-6 days

0

2

Toro 119-3470

ACTUATOR ARM ASM

$27.99

$

In Stock, Qty 16

0

2:2

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

3

Toro 120-2273

WASHER-NYLON

$2.99

$

In Stock, Qty 14

0

4

Toro 133-9299-05

ARM-CONTROL

$49.99

$

In Stock, Qty 20+

0

5

Toro 133-7055

HANDLE-CONTROL, LH

$63.99

$

In Stock, Qty 7

0

5:1

$14.99

$

In Stock, only 4 left!

0

6

Toro 133-7057

HANDLE-CONTROL, RH

$63.99

$

In Stock, Qty 8

0

6:1

$14.99

$

In Stock, only 4 left!

0

7

Toro 133-9301

SPEED CONTROL ASM

$79.99

$

Usually ships in 3-6 days

0

8

Toro 115-5099

BOLT-PIVOT

$5.49

$

Usually ships in 3-6 days

0

9

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

10

Toro 117-1240

WASHER

$2.99

$

In Stock, Qty 20+

0

11

Toro 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

12

Toro 139-2556

BOLT-PIVOT

$5.49

$

Usually ships in 3-6 days

0

13

Toro 139-2598

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

14

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

16

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

17

Toro 131-4132

DAMPER

$69.99

$

In Stock, Qty 12

0

18

Toro 138-7215

STUD-DAMPER

$2.99

$

In Stock, Qty 12

0

19

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

20

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

21

Toro 139-2600

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

22

Toro 138-7216

RETAINER

$6.49

$

Usually ships in 3-6 days

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 139-1713

SCREW-TAPTITE

$1.49

$

Usually ships in 3-6 days

0

25

Toro 138-7217

ROD-HYDRO

$12.99

$

In Stock, only 2 left!

0

26

Toro 138-7218

MOUNT-ROD, HYDRO

$12.99

$

In Stock, Qty 6

0

27

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

28

Toro 138-7252

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

29

Toro 121-1753

PIN-ROD, HYDRO

$6.49

$

Usually ships in 3-6 days

0

30

Toro 93-6079

SPACER-NYLON

$2.49

$

Usually ships in 3-6 days

0

31

Toro 137-3041

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

32

Toro 137-3091

NUT-HEX

$1.49

$

In Stock, Qty 10

0

33

Toro 132-9368

KNOB-RH

$2.99

$

In Stock, only 1 left!

0

34

Toro 132-9369

KNOB-LH

$2.99

$

In Stock, only 2 left!

0

35

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

36

Toro 138-7219

SPRING-RETURN

$1.99

$

In Stock, Qty 5

0
