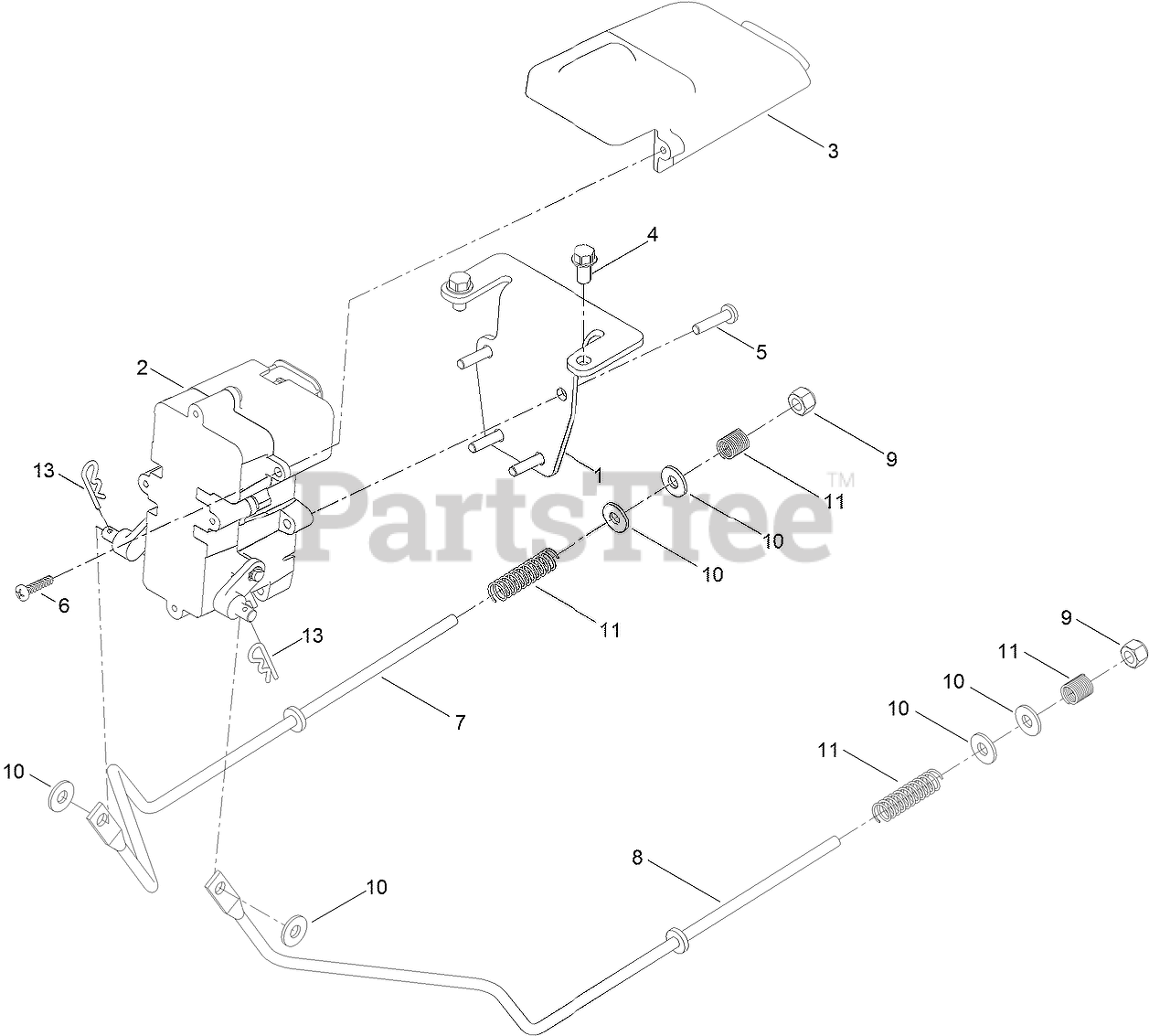

74688 (ZS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) Brake Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

Brake Assembly Parts Diagram

  • Title
1

Toro 130-0790-03

BRACKET-MOUNT, BRAKE

$10.99

$

In Stock, only 2 left!

0

2

Toro 136-4213

BRAKE BOX ASM

$143.99

$

In Stock, Qty 14

0

3

Toro 132-6949

COVER-CONNECTOR

$13.99

$

In Stock, only 2 left!

0

4

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

5

Toro 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Toro 121-2976

ROD-BRAKE, WIDE (RH)

$9.49

$

In Stock, Qty 8

0

8

Toro 121-2977

ROD-BRAKE, WIDE (LH)

$9.49

$

In Stock, Qty 10

0

9

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

10

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

11

Toro 117-1169

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 20+

0

13

Toro 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 13

0
