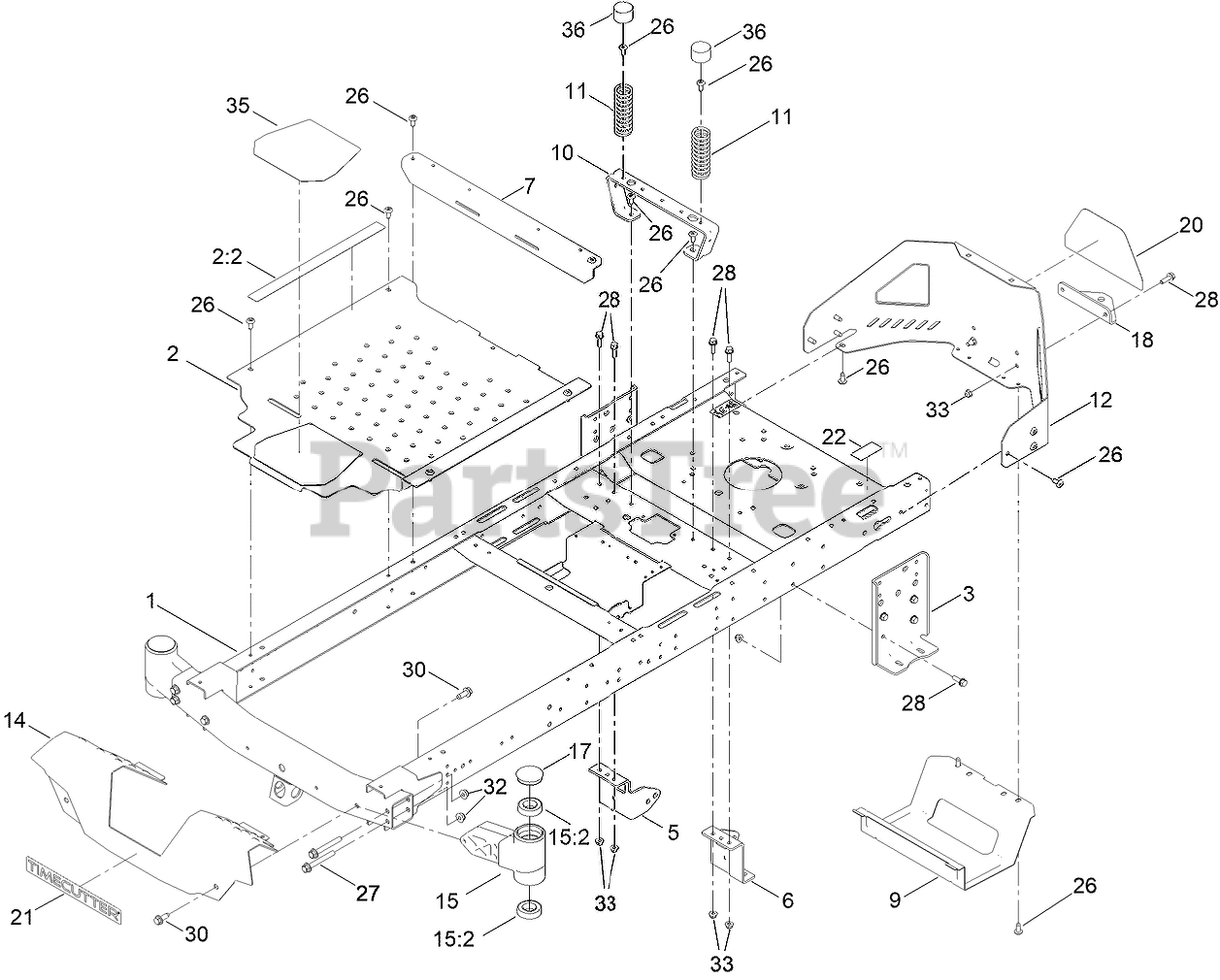

74687 (ZS 4200 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 412456714 - 412456763) Frame Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

Frame Assembly Parts Diagram

  • Title

1

Toro 137-9820-01

FRAME ASSEMBLY

$568.99

$

Usually ships in 3-6 days

0

2

Toro 140-5045

PAN-FLOOR ASM

$147.99

$

Usually ships in 3-6 days

0

2:2

Toro 144-5288

DECAL-WARNING

$4.49

$

Usually ships in 3-6 days

0

3

Toro 138-7520-01

PLATE-MOUNT, HYDRO

$26.99

$

Usually ships in 3-6 days

0

5

Toro 137-7020-01

MOUNT-HYDRO, FRONT (RIGHT)

$15.99

$

Usually ships in 3-6 days

0

6

Toro 139-3211-01

MOUNT-HYDRO, FRONT (LEFT)

$14.99

$

In Stock, only 1 left!

0

7

Toro 138-9791-01

BRACE-CROSS

$29.99

$

Usually ships in 3-6 days

0

9

Toro 138-0867-03

GUARD-MUFFLER

$33.99

$

Usually ships in 3-6 days

0

10

Toro 138-6036-03

SUPPORT-SEAT

$20.99

$

Usually ships in 3-6 days

0

11

Toro 138-2548

SPRING-COMPRESSION

$7.99

$

Usually ships in 3-6 days

0

12

Toro 138-9820-03

GUARD-ENGINE

$88.99

$

Usually ships in 3-6 days

0

14

Toro 138-9827-01

FOOTREST

$67.99

$

Usually ships in 3-6 days

0

15

Toro 140-2098

AXLE STUB ASM

$59.99

$

Usually ships in 3-6 days

0

15:2

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 16

0

17

Toro 138-7200

CAP-GREASE

$5.49

$

In Stock, only 1 left!

0

18

Toro 117-1232-03

BRACKET-HITCH

$29.99

$

In Stock, only 1 left!

0

20

Toro 139-5890

DECAL-TIMECUTTER

$6.49

$

In Stock, Qty 6

0

21

Toro 139-2387

DECAL-TIMECUTTER

$3.99

$

In Stock, only 1 left!

0

22

Toro 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

26

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 8

0

27

Toro 139-2429

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

28

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

30

Toro 139-2428

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

32

Toro 139-2430

NUT-HF, NI

$1.49

$

Usually ships in 3-6 days

0

33

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

35

Toro 139-3220

TREAD-STEP

$8.49

$

Usually ships in 3-6 days

0

36

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0
