74687 (ZS 4200 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 408976622 - 410149999) Motion Control Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

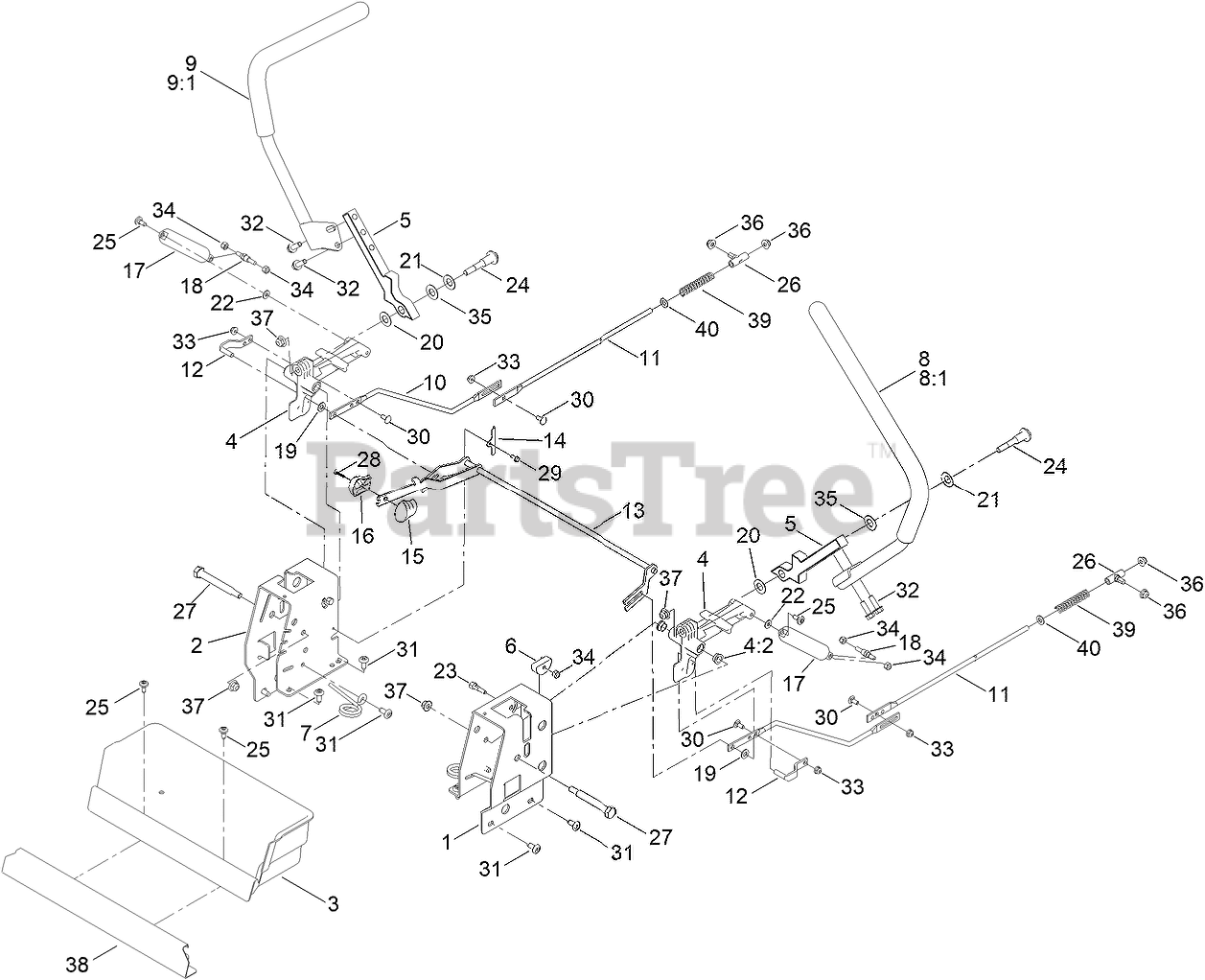

Motion Control Assembly Parts Diagram

  • Title

1

Toro 138-7598-03

PLATE-CONTROL BOX, LH

$33.99

$

Usually ships in 3-6 days

0

2

Toro 138-7599-03

PLATE-CONTROL BOX, RH

$33.99

$

Usually ships in 3-6 days

0

3

Toro 139-3279

BOX-STORAGE

$16.99

$

Usually ships in 3-6 days

0

4

Toro 119-3470

ACTUATOR ARM ASM

$27.99

$

In Stock, only 1 left!

0

4:2

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

5

Toro 133-9299-05

ARM-CONTROL

$49.99

$

In Stock, Qty 5

0

6

Toro 139-5803

ECCENTRIC

$1.49

$

Usually ships in 3-6 days

0

7

Toro 138-7539

SPRING-TORSION

$6.99

$

Usually ships in 3-6 days

0

8

Toro 133-7055

HANDLE-CONTROL, LH

$63.99

$

In Stock, only 1 left!

0

8:1

Toro 121-0726

GRIP

$14.99

$

In Stock, only 2 left!

0

9

Toro 133-7057

HANDLE-CONTROL, RH

$63.99

$

In Stock, only 1 left!

0

9:1

Toro 121-0726

GRIP

$14.99

$

In Stock, only 2 left!

0

10

Toro 138-2580

ROD-HYDRO, FRONT

$9.49

$

Usually ships in 3-6 days

0

11

Toro 144-1818

ROD-HYDRO, REAR

$8.49

$

Usually ships in 3-6 days

0

12

Toro 121-1753

PIN-ROD, HYDRO

$6.49

$

Usually ships in 3-6 days

0

13

Toro 138-9750

SPEED CONTROL ASM

$35.99

$

Usually ships in 3-6 days

0

14

Toro 138-7541

PLATE-RETAINER

$1.99

$

Usually ships in 3-6 days

0

15

Toro 132-9368

KNOB-RH

$2.99

$

In Stock, only 1 left!

0

16

Toro 132-9369

KNOB-LH

$2.99

$

In Stock, only 2 left!

0

17

Toro 132-6853

DAMPER-NON CAVITATING

$35.99

$

Usually ships in 3-6 days

0

18

Toro 138-7215

STUD-DAMPER

$2.99

$

In Stock, only 2 left!

0

19

Toro 93-6079

SPACER-NYLON

$2.49

$

Usually ships in 3-6 days

0

20

Toro 120-2273

WASHER-NYLON

$2.99

$

In Stock, only 4 left!

0

21

Toro 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

22

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

23

Toro 139-5811

BOLT-PIVOT, ECCENTRIC

$1.99

$

Usually ships in 3-6 days

0

24

Toro 139-2556

BOLT-PIVOT

$5.49

$

Usually ships in 3-6 days

0

25

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

26

Toro 138-7218

MOUNT-ROD, HYDRO

$12.99

$

In Stock, only 1 left!

0

27

Toro 115-5099

BOLT-PIVOT

$5.49

$

In Stock, only 2 left!

0

28

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

29

Toro 139-1713

SCREW-TAPTITE

$1.49

$

Usually ships in 3-6 days

0

30

Toro 100-1445

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

31

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

32

Toro 139-2597

SCREW-HHF

$1.49

$

In Stock, Qty 6

0

33

Toro 137-3005

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

34

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

35

Toro 117-1240

WASHER

$2.99

$

In Stock, Qty 20+

0

36

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

38

Toro 139-3280-01

PLATE-KICK

$21.99

$

Usually ships in 3-6 days

0

39

Toro 138-7252

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

40

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0
