74687 (ZS 4200 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 408976622 - 410149999) 42 Inch Deck and Decal Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

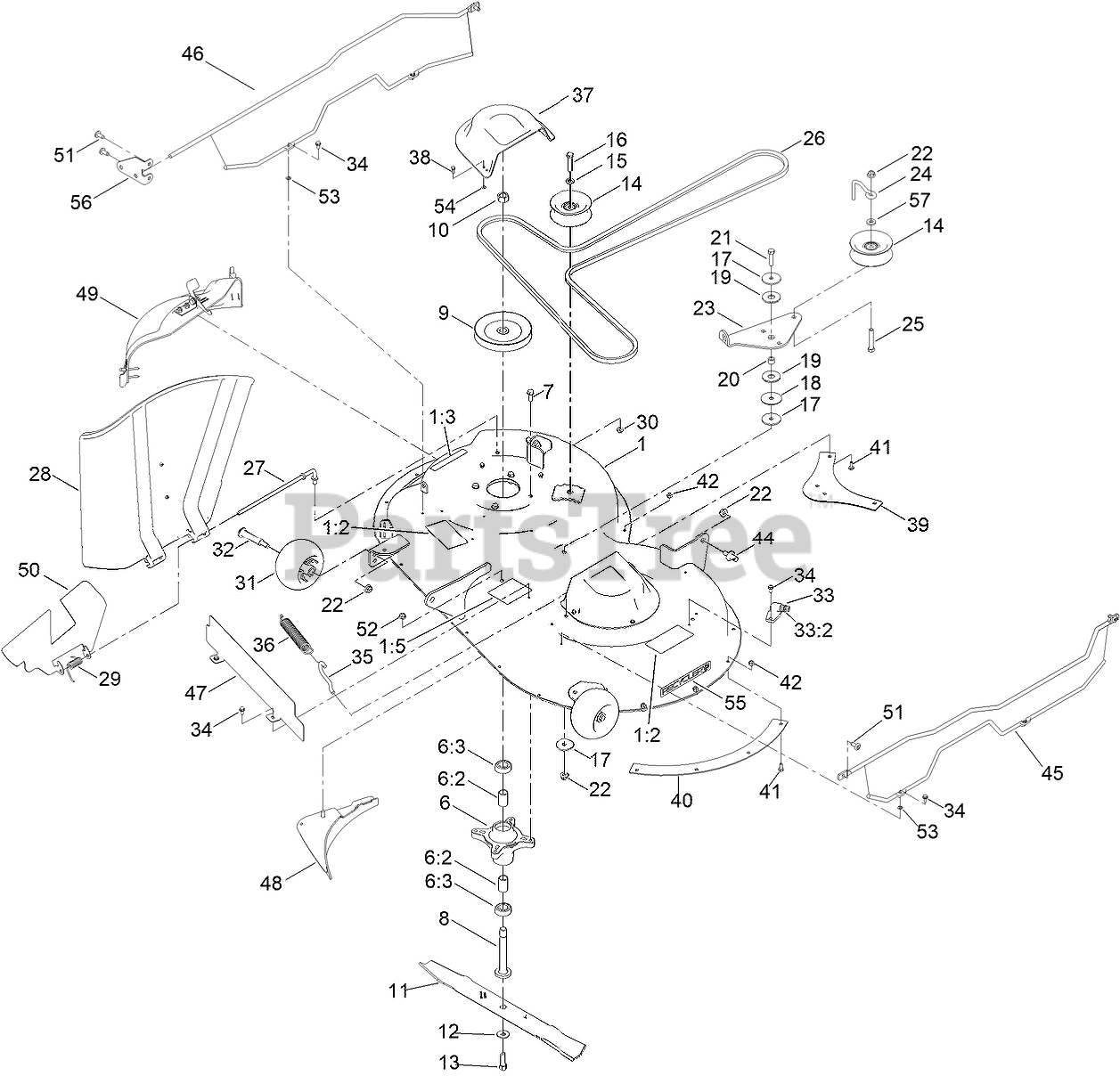

42 Inch Deck and Decal Assembly Parts Diagram

  • Title

1

Toro 138-9761

42 INCH DECK AND DECAL ASM

$681.99

$

Usually ships in 3-6 days

0

1:2

Toro 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, Qty 12

0

1:3

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, Qty 20+

0

1:5

Toro 105-7015

DECAL-ROUTING, BELT

$5.49

$

In Stock, Qty 15

0

6

Toro 139-3214

SPINDLE ASM

$78.99

$

In Stock, Qty 20+

0

6:2

Toro 120-7935

SPACER

$2.49

$

In Stock, Qty 20+

0

6:3

Toro 138-9770

BEARING-BALL

$7.99

$

In Stock, Qty 20+

0

7

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

8

Toro 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 20+

0

9

Toro 139-2433

Pulley

$37.99

$

In Stock, Qty 20+

0

10

Toro 139-2578

Nut-Hex

$1.49

$

In Stock, only 1 left!

0

11

Toro 117-5376-03

BLADE-MULCH

$30.99

$

In Stock, Qty 17

0

12

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

14

Toro 132-9420

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

0

15

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

16

Toro 138-0722

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

17

Toro 139-1726

Washer

$2.99

$

Usually ships in 3-6 days

0

18

Toro 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

20

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0

21

Toro 137-3070

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

22

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

23

Toro 138-7262

ARM-IDLER

$18.99

$

In Stock, only 1 left!

0

24

Toro 138-7270

BELT GUIDE - IDLER

$2.99

$

In Stock, Qty 20+

0

25

Toro 139-2589

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

26

Toro 119-8819

V-BELT
(Superseded to 147-2924)

$

$

Not available

27

Toro 137-2019

ROD-PIVOT

$12.99

$

In Stock, Qty 14

0

28

Toro 137-7046

DEFLECTOR

$85.99

$

In Stock, Qty 20+

0

29

Toro 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

0

30

Toro 121-4600

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

31

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

32

Toro 139-2551

BOLT-SHOULDER

$6.49

$

In Stock, only 1 left!

0

33

Toro 133-9289

FITTING-WASHOUT

$6.49

$

In Stock, Qty 20+

0

33:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 20+

0

34

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

35

Toro 138-7267

HOOK-RETURN SPRING

$2.99

$

In Stock, Qty 20+

0

36

Toro 138-7265

SPRING-EXTENSION

$7.99

$

In Stock, only 1 left!

0

37

Toro 108-7889

COVER-BELT

$34.99

$

In Stock, only 3 left!

0

38

Toro 139-1713

SCREW-TAPTITE

$1.49

$

Usually ships in 3-6 days

0

39

Toro 137-2036-03

BAFFLE-BLOWOUT, REAR

$18.99

$

In Stock, only 1 left!

0

40

Toro 137-2037-03

BAFFLE-BLOWOUT, SIDE

$11.99

$

In Stock, only 1 left!

0

41

Toro 137-3041

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

42

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

44

Toro 139-5871

PIN-DECK

$2.99

$

In Stock, Qty 20+

0

45

Toro 140-0368

LEFT GUARD ASM

$55.99

$

Usually ships in 3-6 days

0

46

Toro 140-0369

RIGHT GUARD ASM

$55.99

$

Usually ships in 3-6 days

0

47

Toro 137-2039-03

SHIELD-FROUNT

$22.99

$

Usually ships in 3-6 days

0

48

Toro 137-7034-03

BAFFLE-CLIPPING

$56.99

$

Usually ships in 3-6 days

0

49

Toro 137-5034

42 INCH MULCH PLUG ASM

$130.99

$

In Stock, only 1 left!

0

50

Toro 138-2555-03

DEFLECTOR-INSERT

$26.99

$

Usually ships in 3-6 days

0

51

Toro 138-9753

SCREW

$1.49

$

In Stock, only 2 left!

0

52

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

53

Toro 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0

54

Toro 132-0900

NUT-RETAINING

$0.99

$

Usually ships in 3-6 days

0

55

Toro 119-2368

DECAL-RECYCLER

$6.49

$

In Stock, only 2 left!

0

56

Toro 140-5183-01

PLATE-MOUNT, GUARD

$14.99

$

Usually ships in 3-6 days

0

57

Toro 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 9

0
