74686 (ZS 4200 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) Traction Drive Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

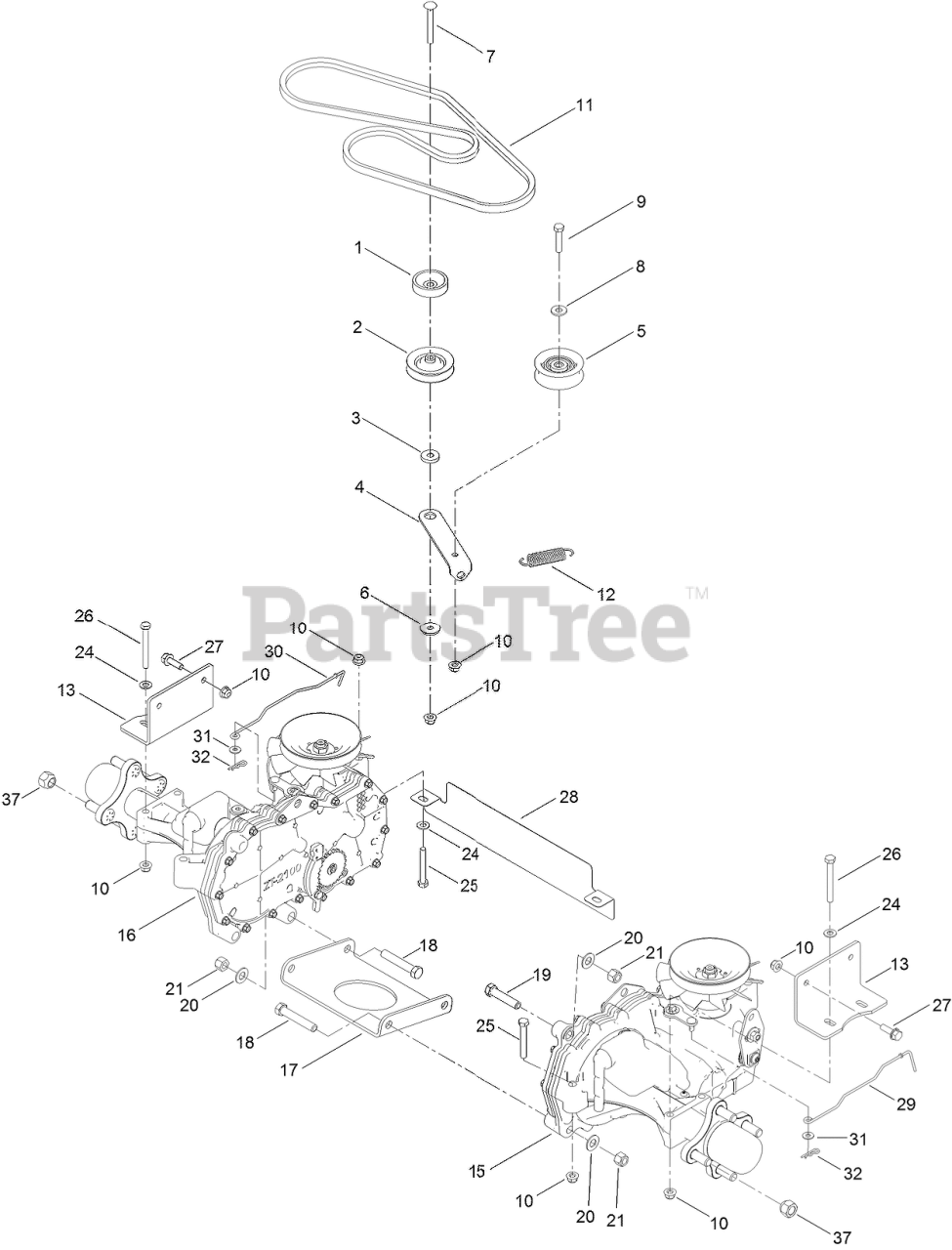

Traction Drive Assembly Parts Diagram

  • Title
1

Toro 119-3353

SPACER

$11.99

$

In Stock, Qty 20+

0

2

Toro 119-8822

PULLEY-IDLER

$25.99

$

In Stock, Qty 20+

0

3

Toro 138-7277

SPACER-IDLER ARM

$1.99

$

In Stock, Qty 8

0

4

Toro 138-7276

ARM-IDLER

$6.49

$

In Stock, Qty 20+

0

5

Toro 138-7597

PULLEY-IDLER, FLAT

$15.99

$

In Stock, Qty 20+

0

6

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

7

Toro 139-2588

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

8

Toro 139-1723

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

9

Toro 120-2779

SCREW-HH

$

$

Currently unavailable

10

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 130-6975

V-BELT
(Superseded to 130-6975-SL)

$36.99

$

Usually ships in 3-6 days

0

12

Toro 137-7040

SPRING-PEDAL, RETURN

$5.49

$

In Stock, Qty 20+

0

13

Toro 117-7264-03

MOUNT-HYDRO

$9.49

$

Usually ships in 3-6 days

0

15

Toro 119-3330

LH HYDRO TRANSAXLE ASM

$1340.99

$

Usually ships in 3-6 days

0

16

Toro 119-3331

RH HYDRO TRANSAXLE ASM

$1472.99

$

Usually ships in 3-6 days

0

17

Toro 119-3339-03

PLATE-CROSS, HYDRO

$25.99

$

Usually ships in 3-6 days

0

18

Toro 139-2603

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

19

Toro 139-2605

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

20

Toro 139-2610

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

21

Toro 119-4039

NUT-HEX, NI

$

$

Currently unavailable

24

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

25

Toro 120-9738

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 139-2583

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

28

Toro 131-3668-03

GUARD REAR, NARROW

$15.99

$

Usually ships in 3-6 days

0

29

Toro 138-7243

ROD-BYPASS, LH

$8.49

$

In Stock, only 1 left!

0

30

Toro 138-7245

ROD-BYPASS, RH

$8.49

$

Usually ships in 3-6 days

0

31

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

32

Toro 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

37

Toro 139-2564

NUT-LUG

$1.49

$

In Stock, only 4 left!

0
