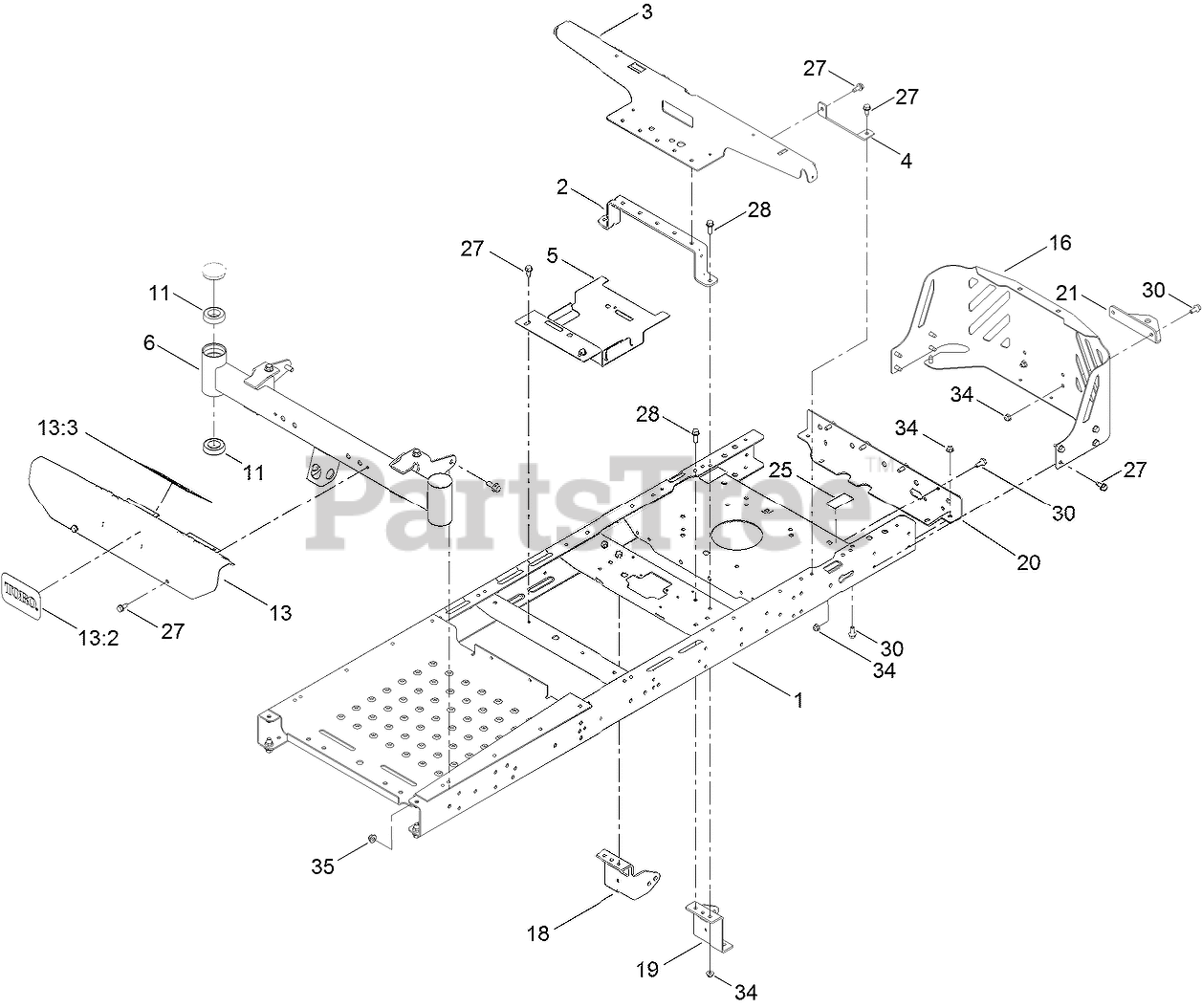

74686 (ZS 4200 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) Frame Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

Frame Assembly Parts Diagram

  • Title

1

Toro 135-0509-01

FRAME ASM

$397.99

$

Usually ships in 3-6 days

0

2

Toro 135-0686-03

BRACE-SEAT, REAR (NARROW)

$19.99

$

Usually ships in 3-6 days

0

3

Toro 131-1040-03

SUPPORT-POD

$102.99

$

Usually ships in 3-6 days

0

4

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.49

$

Usually ships in 3-6 days

0

5

Toro 135-0507-03

BRACKET-BATTERY

$27.99

$

Usually ships in 3-6 days

0

6

Toro 125-1742-01

AXLE-FRONT, NARROW

$319.99

$

Usually ships in 3-6 days

0

11

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

13

Toro 132-0890

FOOTREST ASM

$217.99

$

Usually ships in 3-6 days

0

13:2

Toro 105-8278

DECAL

$11.99

$

In Stock, only 2 left!

0

13:3

Toro 132-0869

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

16

Toro 127-3353-03

GUARD-ENGINE, NARROW

$122.99

$

Usually ships in 3-6 days

0

18

Toro 137-7020-01

MOUNT-HYDRO, FRONT (RIGHT)

$15.99

$

Usually ships in 3-6 days

0

19

Toro 137-7021-01

MOUNT-HYDRO, FRONT (LEFT)
(Superseded to 139-3211-01)

$15.99

$

In Stock, only 1 left!

0

20

Toro 130-6950-01

CROSSMEMBER-REAR, NARROW

$41.99

$

Usually ships in 3-6 days

0

21

Toro 117-1232-03

BRACKET-HITCH

$29.99

$

In Stock, only 2 left!

0

25

Toro 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

27

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

30

Toro 139-2598

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

34

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

35

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0
