74686 (ZS 4200 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) Engine Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

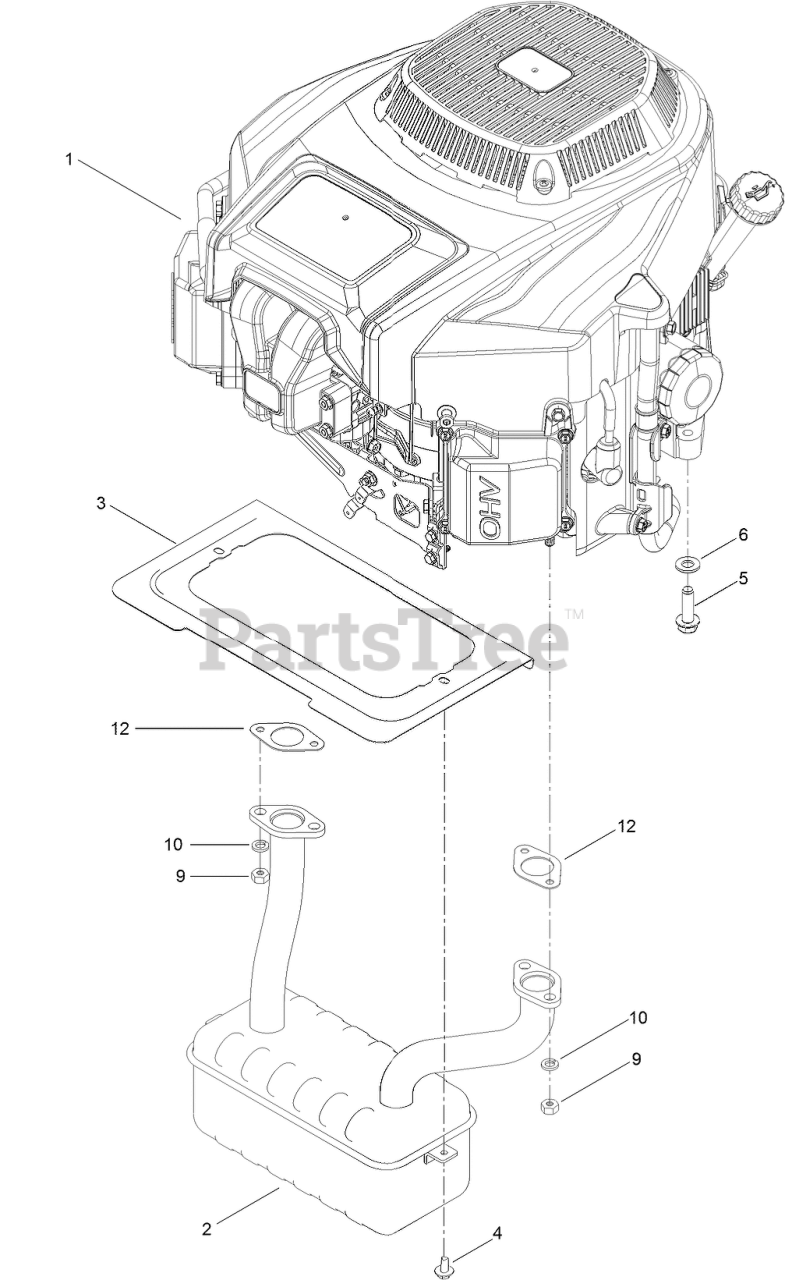

Engine Assembly Parts Diagram

  • Title
1

Toro 136-7816

ENGINE-2P77F

$

$

Not available

2

Toro 130-6851

MUFFLER

$133.99

$

In Stock, only 1 left!

0

3

Toro 131-1071-03

SHIELD-HEAT

$12.99

$

In Stock, only 1 left!

0

4

Toro 139-1700

SCREW-HWH, THD ROLL

$1.49

$

Usually ships in 3-6 days

0

5

Toro 139-2576

SCREW-HWH, THD ROLL

$2.99

$

Usually ships in 3-6 days

0

6

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

9

Toro 121-0199

NUT-HH

$1.49

$

Usually ships in 3-6 days

0

10

Toro 127-9279

WASHER-LOCK, SPLIT

$2.99

$

Usually ships in 3-6 days

0

12

Toro 120-4317

GASKET-EXHAUST

$5.49

$

In Stock, Qty 6

0
