74686 (ZS 4200 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) 42 Inch Deck Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

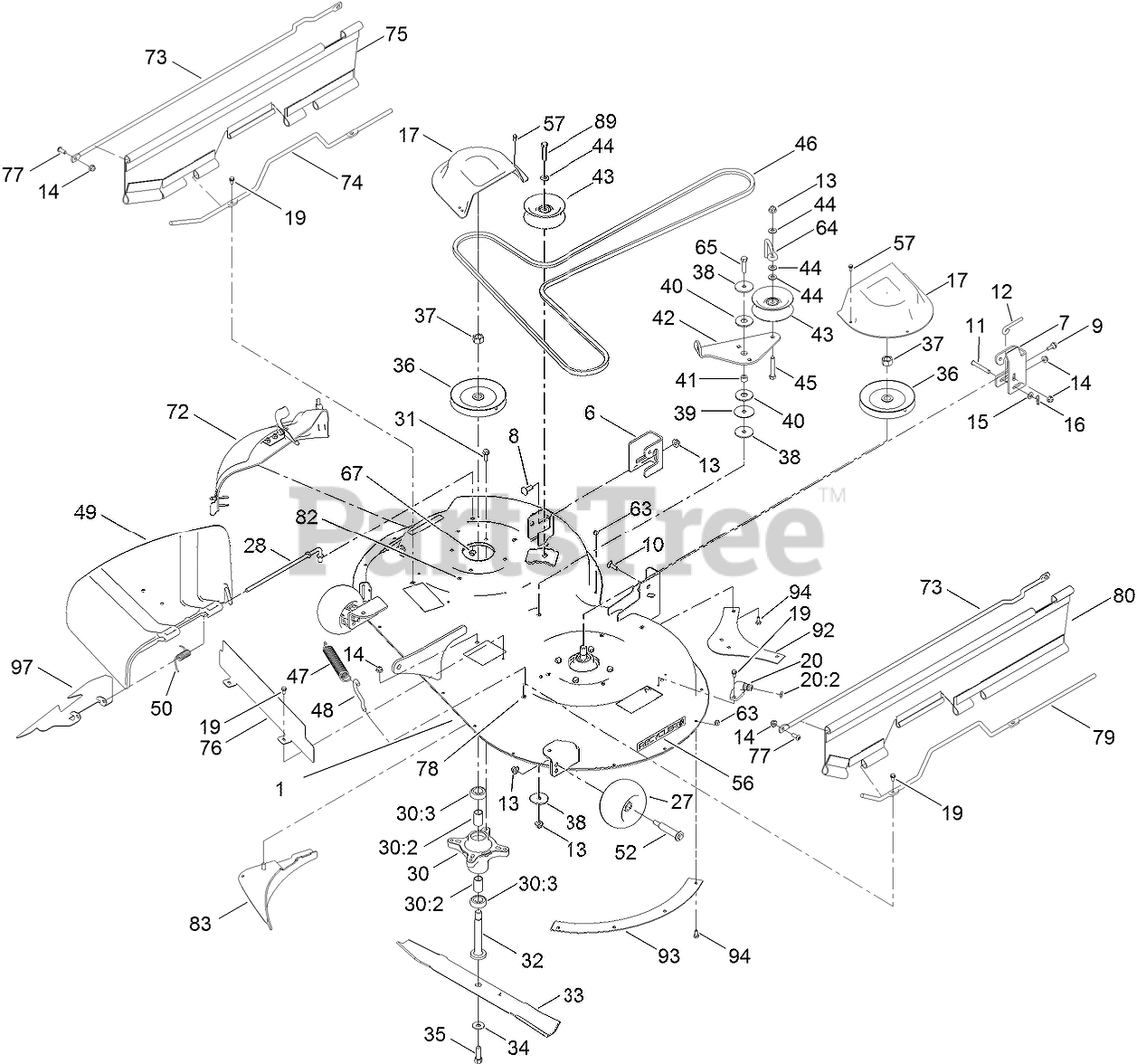

42 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 137-7041

42 INCH DECK AND DECAL ASM

$634.99

$

Usually ships in 3-6 days

0

6

Toro 138-7253

Bracket-Hanger, RIGHT REAR

$12.99

$

Usually ships in 3-6 days

0

7

Toro 138-7254

Bracket-Hanger, LEFT REAR

$15.99

$

Usually ships in 3-6 days

0

8

Toro 139-2590

Screw

$1.49

$

Usually ships in 3-6 days

0

9

Toro 139-1730

Screw

$1.99

$

In Stock, only 4 left!

0

10

Toro 139-2587

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

11

Toro 139-2550

Pin-Clevis

$2.99

$

Usually ships in 3-6 days

0

12

Toro 138-7255

Rod

$5.99

$

Usually ships in 3-6 days

0

13

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 13

0

14

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

16

Toro 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 16

0

17

Toro 108-7889

COVER-BELT

$33.99

$

In Stock, only 2 left!

0

19

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Toro 133-9289

FITTING-WASHOUT

$6.49

$

In Stock, Qty 5

0

20:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 20+

0

27

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

28

Toro 137-2019

ROD-PIVOT

$12.99

$

In Stock, only 1 left!

0

30

SPINDLE ASM

Note: Not serviced separately

$

$

Not available

30:2

Toro 120-7935

SPACER

$2.99

$

In Stock, Qty 20+

0

30:3

Toro 136-5441

BEARING-BALL

$7.99

$

In Stock, only 4 left!

0

31

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

32

Toro 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 20+

0

33

Toro 117-5376-03

BLADE-MULCH

$30.99

$

In Stock, Qty 17

0

34

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

36

Toro 125-5575

PULLEY

$63.99

$

In Stock, Qty 20+

0

37

Toro 139-2578

Nut-Hex

$1.49

$

In Stock, only 1 left!

0

38

Toro 139-1726

Washer

$2.99

$

Usually ships in 3-6 days

0

39

Toro 139-2558

Washer

$7.99

$

Usually ships in 3-6 days

0

40

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 9

0

41

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 10

0

42

Toro 138-7262

ARM-IDLER

$18.99

$

In Stock, only 1 left!

0

43

Toro 132-9420

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

0

44

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

45

Toro 139-2602

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

46

Toro 119-8819

V-BELT
(Superseded to 147-2924)

$54.99

$

Usually ships in 3-6 days

0

47

Toro 138-7265

SPRING-EXTENSION

$7.99

$

In Stock, only 1 left!

0

48

Toro 138-7267

HOOK-RETURN SPRING

$2.99

$

In Stock, Qty 10

0

49

Toro 137-7046

DEFLECTOR

$76.99

$

Usually ships in 3-6 days

0

50

Toro 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 9

0

52

Toro 139-2551

BOLT-SHOULDER

$6.49

$

In Stock, only 1 left!

0

56

Toro 119-2368

DECAL-RECYCLER

$5.49

$

In Stock, only 2 left!

0

57

Toro 139-1713

SCREW-TAPTITE

$1.49

$

Usually ships in 3-6 days

0

63

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

64

Toro 138-7270

BELT GUIDE - IDLER

$2.99

$

In Stock, Qty 6

0

65

Toro 137-3070

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

67

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

72

Toro 137-5034

42 INCH MULCH PLUG ASM

$126.99

$

In Stock, only 1 left!

0

73

Toro 138-7272

ROD SUPPORT, UPPER

$17.99

$

Usually ships in 3-6 days

0

74

Toro 137-5020

ROD-SUPPORT, LOWER (RH)

$27.99

$

Usually ships in 3-6 days

0

75

Toro 137-5026

RIGHT GUARD ASM

$21.99

$

Usually ships in 3-6 days

0

76

Toro 137-2039-03

SHIELD-FROUNT

$22.99

$

Usually ships in 3-6 days

0

77

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

78

Toro 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0

79

Toro 137-5019

ROD-SUPPORT, LOWER (LH)

$27.99

$

Usually ships in 3-6 days

0

80

Toro 137-5025

LEFT GUARD ASM

$21.99

$

Usually ships in 3-6 days

0

82

Toro 132-0900

NUT-RETAINING

$0.99

$

Usually ships in 3-6 days

0

83

Toro 137-7034-03

BAFFLE-CLIPPING

$55.99

$

Usually ships in 3-6 days

0

89

Toro 139-2602

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

92

Toro 137-2036-03

BAFFLE-BLOWOUT, REAR

$18.99

$

In Stock, only 1 left!

0

93

Toro 137-2037-03

BAFFLE-BLOWOUT, SIDE

$11.99

$

In Stock, only 1 left!

0

94

Toro 137-3041

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

97

Toro 138-2555-03

DEFLECTOR-INSERT

$25.99

$

Usually ships in 3-6 days

0
