74685 (ZS 4200 S) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 407149999) Engine and Muffler Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

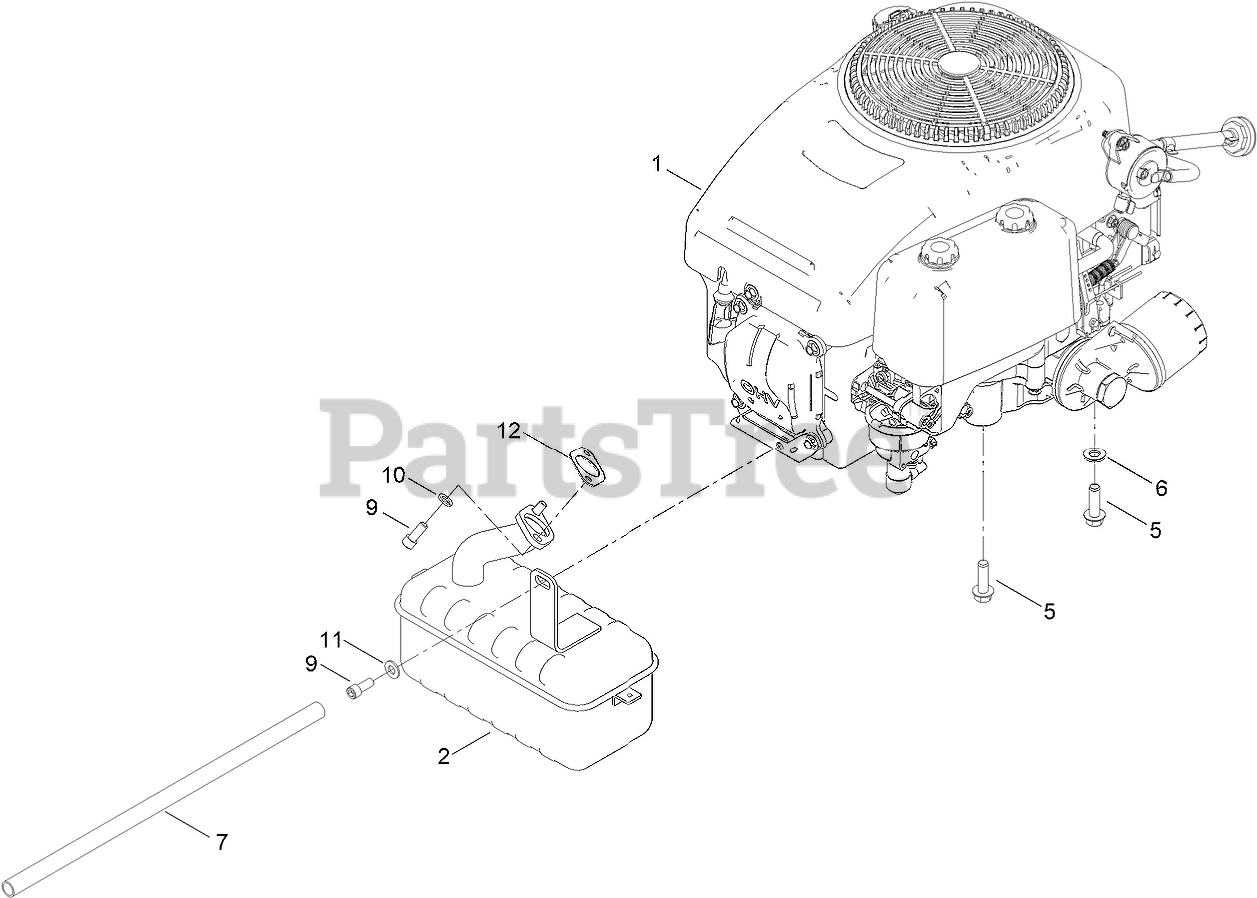

Engine and Muffler Assembly Parts Diagram

  • Title
1

Toro 139-0605

ENGINE-1P92F-1

$2153.99

$

Usually ships in 3-6 days

0

2

Toro 130-0691

MUFFLER

$122.99

$

In Stock, only 1 left!

0

5

Toro 139-2576

SCREW-HWH, THD ROLL

$2.99

$

Usually ships in 3-6 days

0

6

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

7

Toro 106-7022

TUBE-DRAIN, OIL

$8.99

$

In Stock, only 1 left!

0

9

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

10

Toro 136-8682

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

11

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

12

Toro 120-4317

GASKET-EXHAUST

$5.49

$

In Stock, Qty 6

0
