74684 (ZS 4200 S) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) Caster Wheel Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

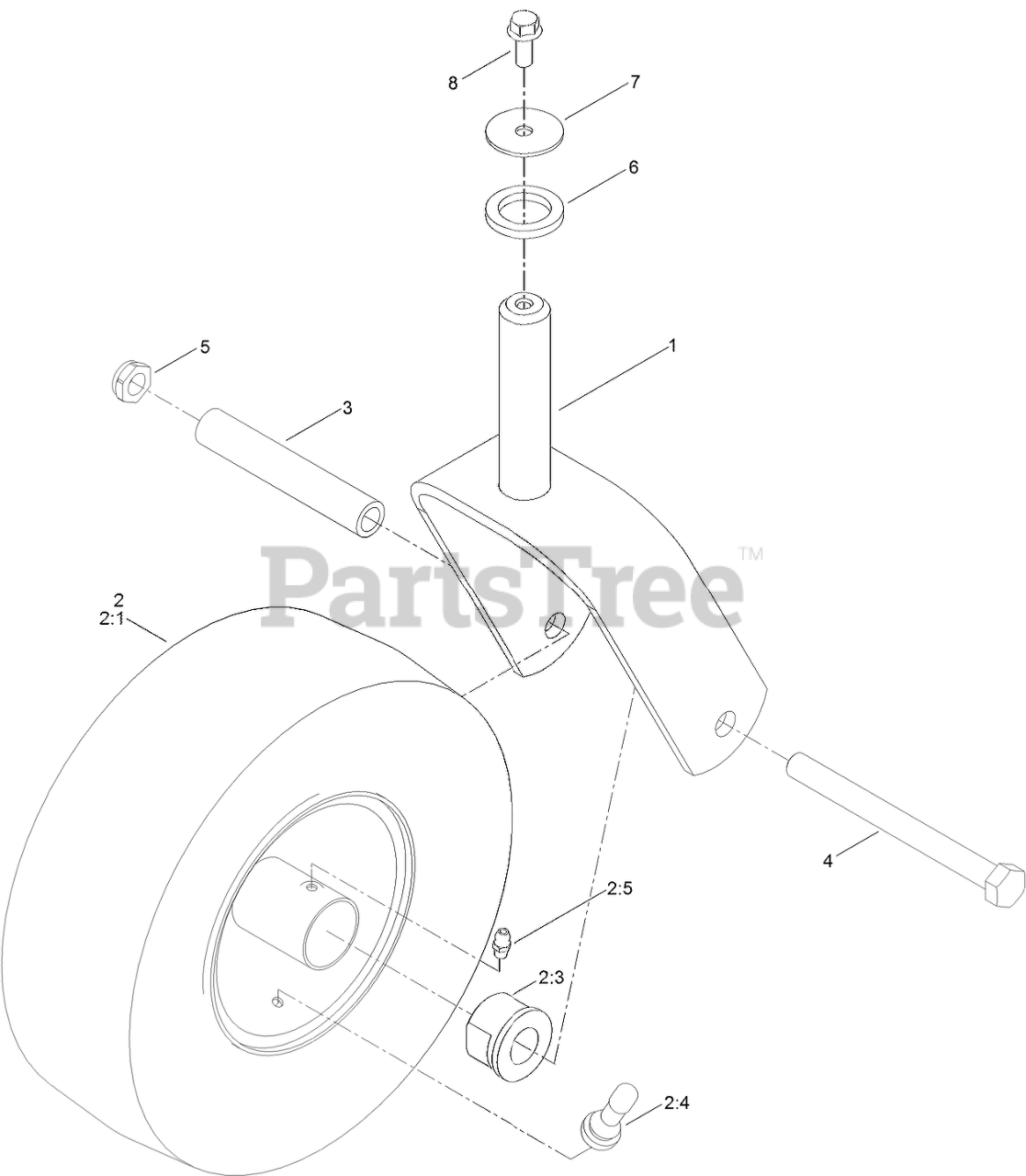

Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 120-7964-01

CASTER FORK ASM

$70.99

$

In Stock, only 1 left!

0

2

Toro 130-0736

CASTER WHEEL ASM

$87.99

$

In Stock, only 4 left!

0

2:1

Toro 130-0735

TIRE

$49.99

$

Usually ships in 3-6 days

0

2:3

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

2:4

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

2:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2:6

Toro 105-0844

TUBE-INNER

Note: Not illustrated

$46.99

$

In Stock, only 1 left!

0

2:6

Toro 105-0844

TUBE-INNER

Note: Optional Equipment

$46.99

$

In Stock, only 1 left!

0

3

Toro 138-7240

BUSHING-SPANNER

$10.99

$

In Stock, only 2 left!

0

4

Toro 139-2607

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

5

Toro 139-2617

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

6

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

7

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

8

Toro 139-2598

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0
