74682 (ZS 3200 S) - Toro 32" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) Deck Lift Assembly Parts Diagram

32" TimeCutter Zero-Turn Mower

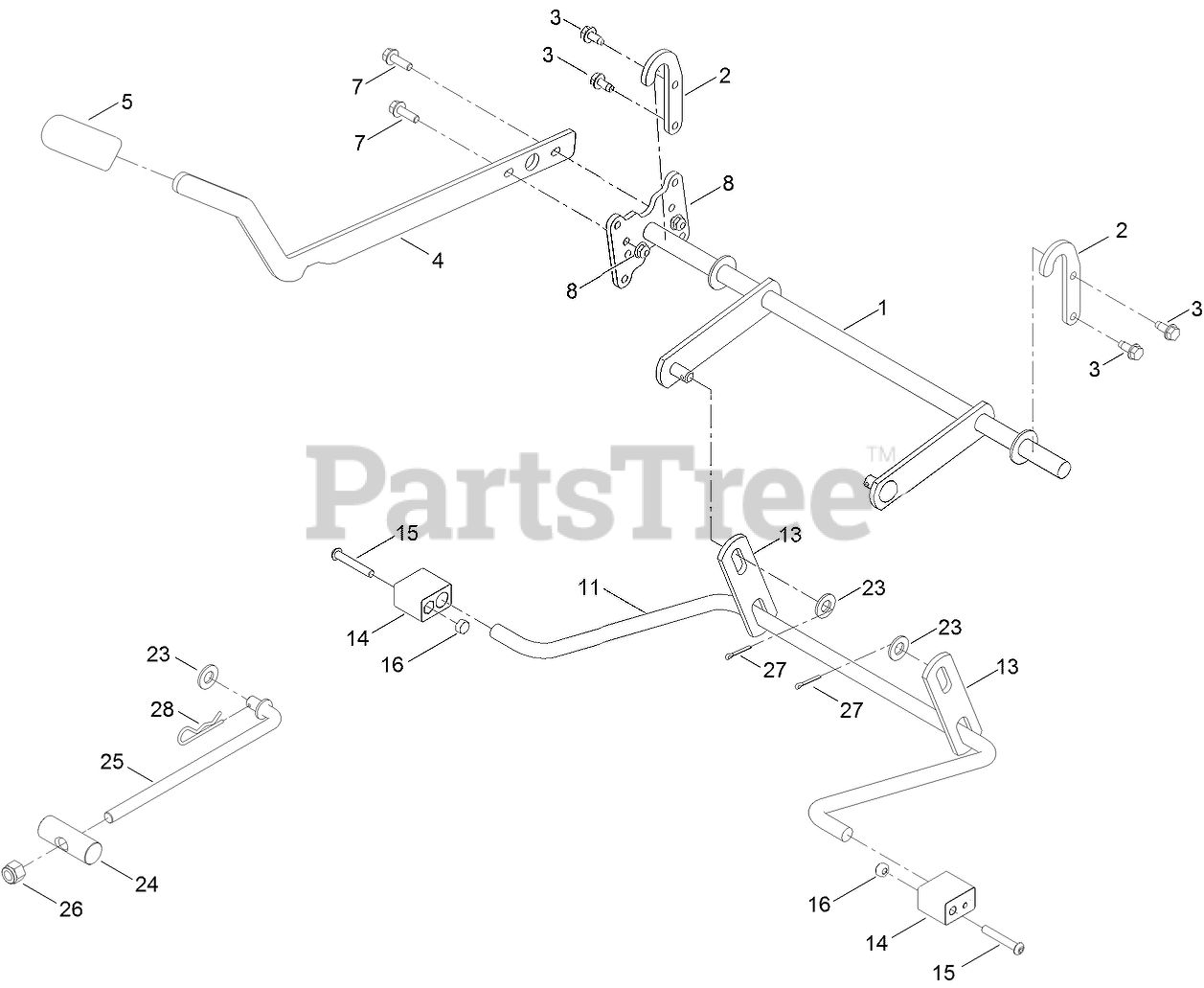

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 132-6872-03

LIFT-DECK, NARROW

$52.99

$

Usually ships in 3-6 days

0

2

Toro 138-7233

BRACKET-LIFT

$6.49

$

In Stock, only 3 left!

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 119-3427-03

LEVER-LIFT

$23.99

$

Usually ships in 3-6 days

0

5

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 5

0

7

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

8

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 138-7234

ARM-LIFT, REAR

$34.99

$

In Stock, only 1 left!

0

13

Toro 138-7235

LINK-LIFT

$7.99

$

In Stock, Qty 9

0

14

Toro 108-7845

BLOCK-PIVOT

$17.99

$

In Stock, only 1 left!

0

15

Toro 120-5499

SCREW-HSBH

$2.99

$

In Stock, Qty 17

0

16

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

23

Toro 139-2611

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

24

Toro 119-8810

PIN-PIVOT

$17.99

$

In Stock, only 3 left!

0

25

Toro 133-4319

ROD-MOUNT, DECK

$15.99

$

In Stock, Qty 6

0

26

Toro 139-1725

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

27

Toro 139-2614

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0

28

Toro 139-2562

PIN-HAIR

$1.49

$

In Stock, Qty 9

0
