74682 (ZS 3200 S) - Toro 32" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) Body Styling and Fuel Tank Assembly Parts Diagram

32" TimeCutter Zero-Turn Mower

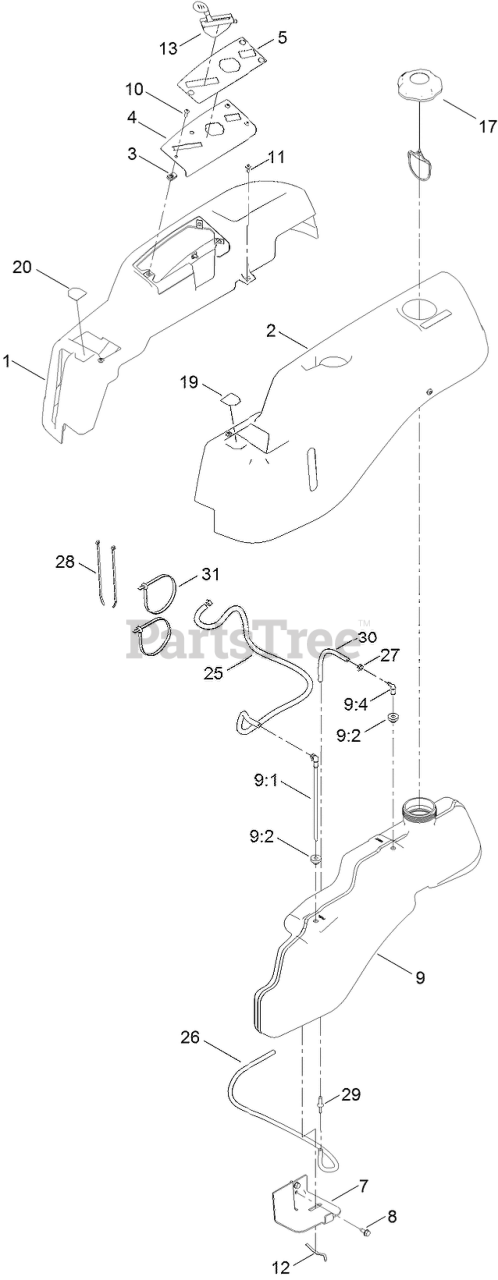

Body Styling and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 119-3335

POD-RH

$77.99

$

Usually ships in 3-6 days

0

2

Toro 137-7008

POD-LH

$77.99

$

In Stock, only 1 left!

0

3

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

4

Toro 119-3378-03

PLATE-CONTROL

$9.49

$

Usually ships in 3-6 days

0

5

Toro 121-0771

DECAL-PANEL, CONTROL

$12.99

$

Usually ships in 3-6 days

0

7

Toro 119-3476-03

SUPPORT-TANK, FRONT

$13.99

$

Usually ships in 3-6 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 119-3324

FUEL TANK ASM

$322.99

$

In Stock, only 4 left!

0

9:1

Toro 121-0793

CONNECTOR-ELBOW, 90 DEG

$11.99

$

In Stock, only 3 left!

0

9:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

9:4

Toro 117-7400

FITTING-PLASTIC

$6.49

$

In Stock, only 3 left!

0

10

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

12

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

13

Toro 121-0767

CABLE-THROTTLE AND CHOKE

$51.99

$

Usually ships in 3-6 days

0

17

Toro 137-4119

CAP-FUEL, RATCHETING

$27.99

$

In Stock, Qty 6

0

19

Toro 119-8814

DECAL-LEVER, CONTROL (LH)

$2.99

$

In Stock, only 1 left!

0

20

Toro 119-8815

DECAL-LEVER, CONTROL (RH)

$2.99

$

In Stock, only 2 left!

0

25

Toro 109-0307

HOSE-FUEL

$21.99

$

In Stock, only 1 left!

0

26

Toro 110-3254

HOSE-FUEL

$20.99

$

Usually ships in 3-6 days

0

27

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

28

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

29

Toro 117-5399

ADAPTOR-ORIFICE

$3.49

$

In Stock, only 1 left!

0

30

Toro 110-1876

HOSE-FUEL

$12.99

$

In Stock, only 1 left!

0

31

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
