74680 (SW 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400220000 - 999999999) FRAME ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

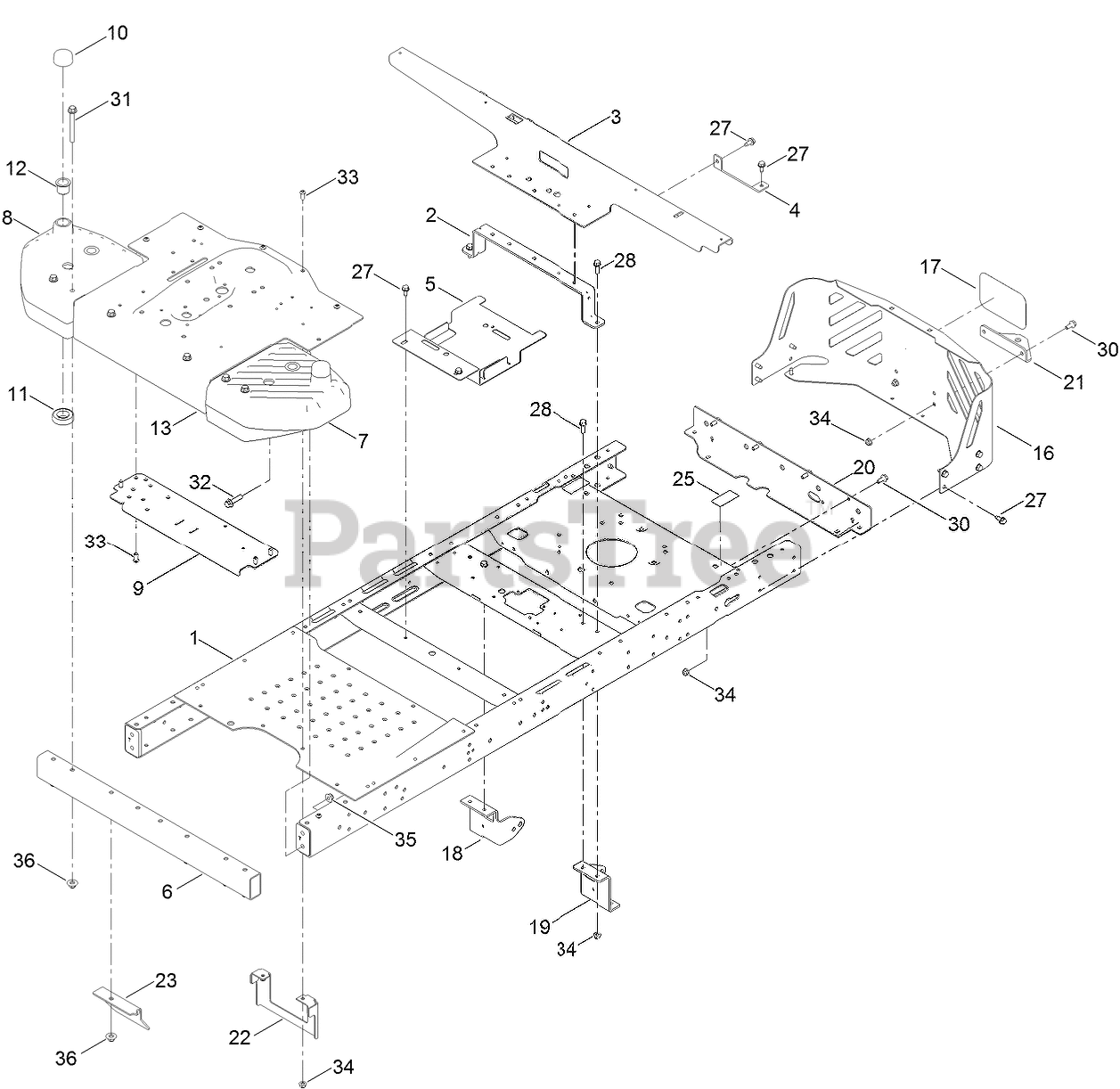

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 130-0805-01

FRAME ASM (WIDE)

$470.99

$

Usually ships in 3-6 days

0

2

Toro 135-0687-03

BRACE-SEAT, REAR (WIDE)

$20.99

$

Usually ships in 3-6 days

0

3

Toro 131-1039-03

SUPPORT-POD, WIDE

$120.99

$

Usually ships in 3-6 days

0

4

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.49

$

Usually ships in 3-6 days

0

5

Toro 135-0507-03

BRACKET-BATTERY

$26.99

$

Usually ships in 3-6 days

0

6

Toro 130-0829-03

TUBE-FRONT, WIDE

$85.99

$

Usually ships in 3-6 days

0

7

Toro 130-0748-05

HOUSING-SPINDLE, LH

$320.99

$

Usually ships in 3-6 days

0

8

Toro 130-0746-05

HOUSING-SPINDLE, RH

$320.99

$

Usually ships in 3-6 days

0

9

Toro 130-6979-03

PLATE-BRIDGE, WIDE

$58.99

$

Usually ships in 3-6 days

0

10

Toro 130-7015

CAP-CASTER

$1.99

$

Usually ships in 3-6 days

0

11

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Toro 126-1963

BUSHING-PIVOT

$7.49

$

In Stock, Qty 20+

0

13

Toro 132-9346-05

PAN-STEER, FRONT

$133.99

$

Usually ships in 3-6 days

0

16

Toro 130-0701-03

GUARD-ENGINE, WIDE

$131.99

$

Usually ships in 3-6 days

0

17

Toro 99-4693

DECAL

$22.99

$

In Stock, only 2 left!

0

18

Toro 137-7020-01

MOUNT-HYDRO, FRONT (RIGHT)

$15.99

$

Usually ships in 3-6 days

0

19

Toro 137-7021-01

MOUNT-HYDRO, FRONT (LEFT)
(Superseded to 139-3211-01)

$14.99

$

In Stock, only 1 left!

0

20

Toro 130-6946-01

CROSSMEMBER-REAR, WIDE

$42.99

$

Usually ships in 3-6 days

0

21

Toro 117-1232-03

BRACKET-HITCH

$28.99

$

In Stock, only 1 left!

0

22

Toro 132-0941-03

BRACKET-UPSTOP

$19.99

$

Usually ships in 3-6 days

0

23

Toro 132-0868-03

GUARD-FRONT

$11.99

$

Usually ships in 3-6 days

0

25

Toro 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

27

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

30

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

31

Toro 115-7660

SCREW-HHF

$7.49

$

In Stock, only 2 left!

0

32

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

33

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

34

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

36

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, only 4 left!

0
