74680 (SW 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 316000001 - 316999999) (2016) STEERING CABLE ASSEMBLY Parts Diagram
50" TimeCutter Zero-Turn Mower

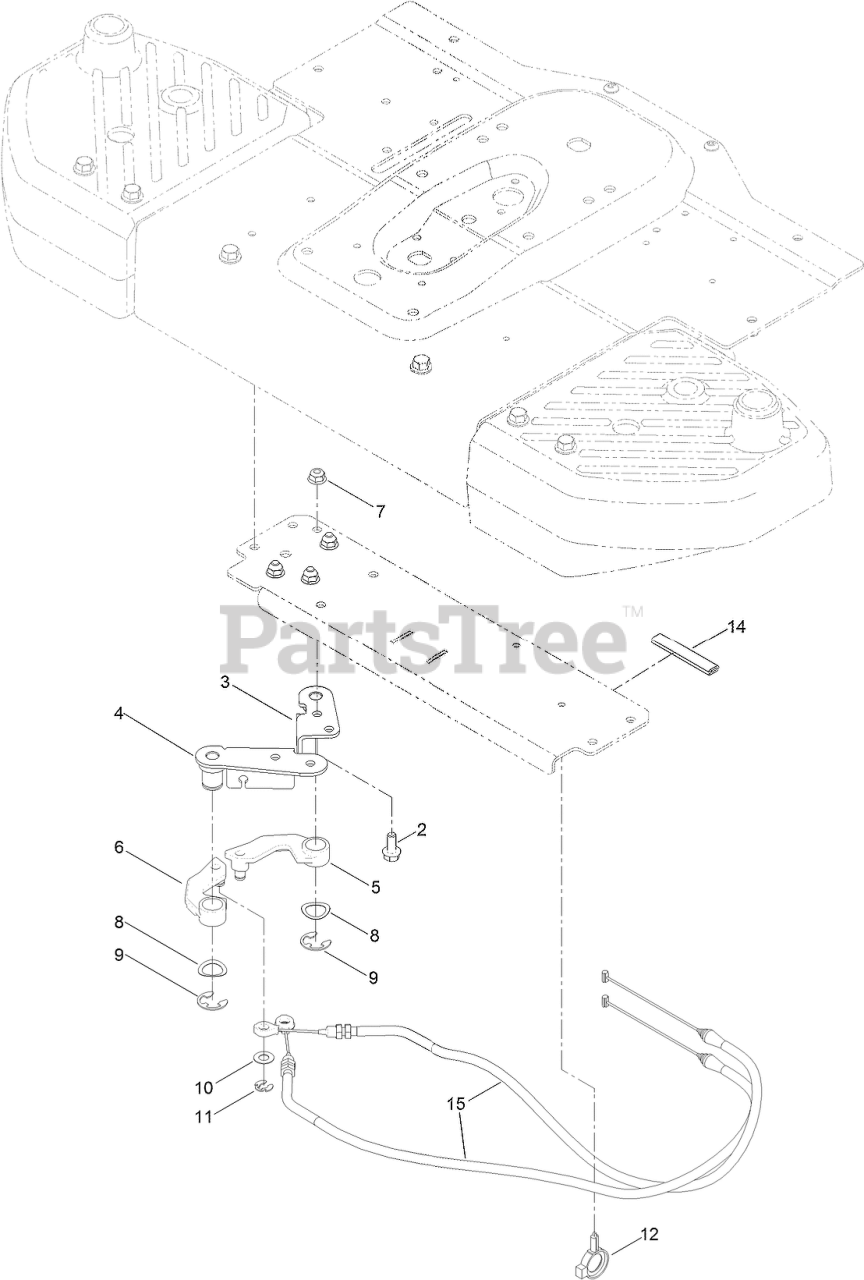

STEERING CABLE ASSEMBLY Parts Diagram
Toro 3234-47
SCREW-HHF
$2.99
$
In Stock, Qty 20+
Toro 132-6943
CABLE BRACKET ASM
$
$
Not available
Toro 132-6944
CABLE BRACKET ASM
$10.99
$
Usually ships in 3-6 days
Toro 131-3623
ARM-CABLE, RH
$41.99
$
Usually ships in 3-6 days
Toro 131-3647
ARM-CABLE, LH
$41.99
$
Usually ships in 3-6 days
Toro 104-8300
NUT-HF, NI
$1.49
$
In Stock, Qty 20+
Toro 7896
WASHER-BOWED
$1.49
$
In Stock, Qty 5
Toro 32151-48
E-RING
$1.99
$
In Stock, Qty 14
Toro 37-8080
WASHER-THRUST
$6.49
$
Usually ships in 3-6 days
Toro 32151-47
RING-RETAINING
$2.99
$
In Stock, Qty 20+
Toro 105-1853
CLAMP-HOSE
$5.49
$
In Stock, only 4 left!
Toro 105-7699
STRIP-SEAL
$9.99
$
In Stock, Qty 20+
Toro 127-0118
CABLE-STEERING
$44.99
$
In Stock, Qty 7
