74680 (SW 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

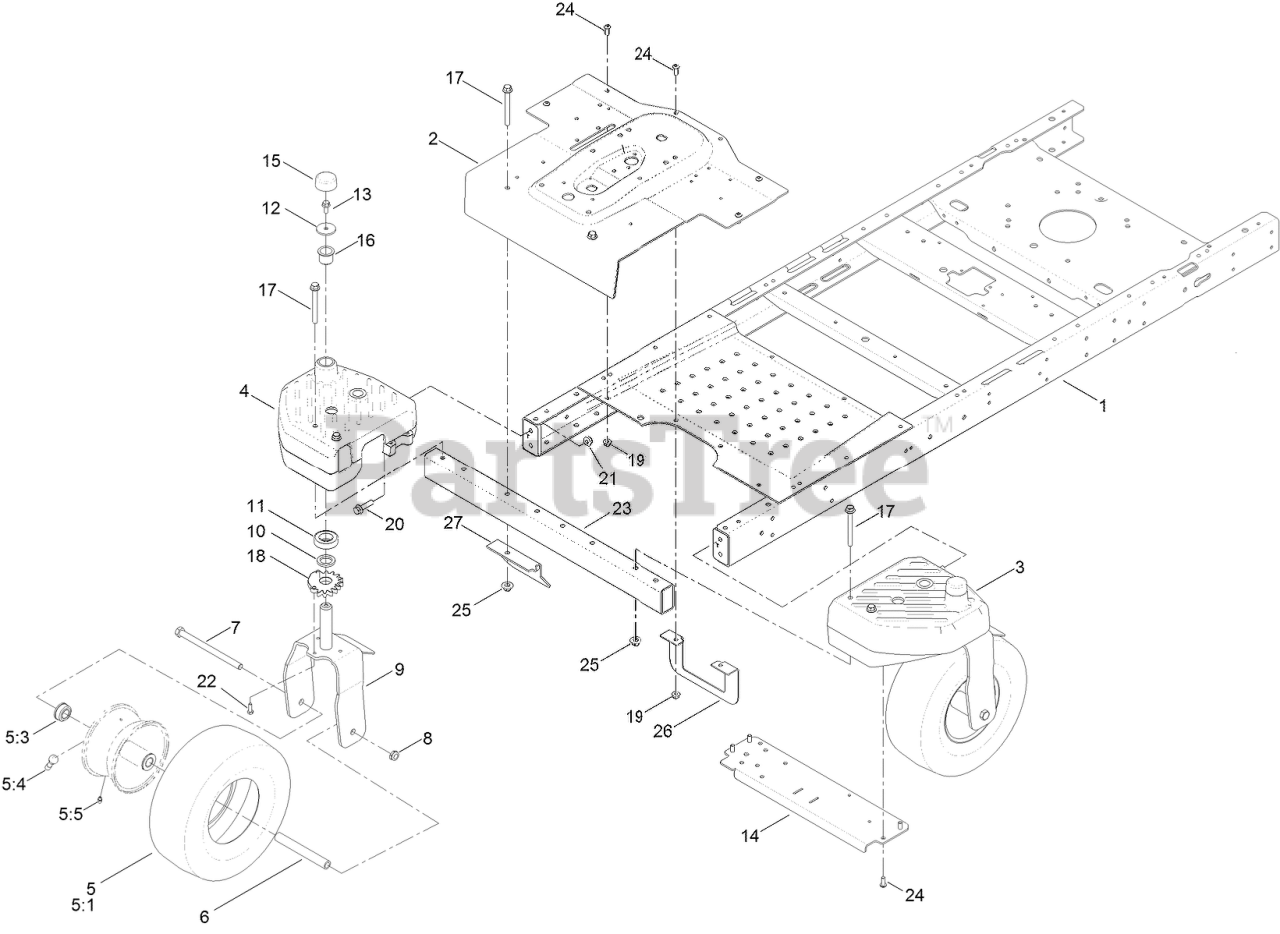

FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 130-0805-01

FRAME ASM (WIDE)

$471.99

$

Usually ships in 3-6 days

0

2

Toro 130-6930-05

PAN-STEER, FRONT (WIDE)

$144.99

$

Usually ships in 3-6 days

0

3

Toro 130-0748-05

HOUSING-SPINDLE, LH

$328.99

$

Usually ships in 3-6 days

0

4

Toro 130-0746-05

HOUSING-SPINDLE, RH

$328.99

$

Usually ships in 3-6 days

0

5

Toro 119-3473

13 INCH WHEEL AND TIRE ASM

$117.99

$

In Stock, only 3 left!

0

5:1

Toro 119-3471

TIRE-13 Inch

$84.99

$

In Stock, only 2 left!

0

5:3

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

5:4

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

5:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5:99

Toro 232-46

TUBE-INNER

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

6

Toro 119-3475

SPANNER

$11.99

$

In Stock, Qty 9

0

7

Toro 325-37

SCREW-HH

$6.99

$

In Stock, Qty 8

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 130-0670-03

CASTER FORK ASM

$96.99

$

Usually ships in 3-6 days

0

10

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

11

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 14

0

12

Toro 131-1032

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

14

Toro 130-6979-03

PLATE-BRIDGE, WIDE

$60.99

$

Usually ships in 3-6 days

0

15

Toro 130-7015

CAP-CASTER

$1.99

$

Usually ships in 3-6 days

0

16

Toro 126-1963

BUSHING-PIVOT

$7.49

$

In Stock, Qty 20+

0

17

Toro 115-7660

SCREW-HHF

$7.49

$

In Stock, only 2 left!

0

18

Toro 130-0689

GEAR-WHEEL, 15 TEETH

$26.99

$

Usually ships in 3-6 days

0

19

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

20

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 130-0829-03

TUBE-FRONT, WIDE

$87.99

$

Usually ships in 3-6 days

0

24

Toro 131-4080

SCREW-HSBH

$1.49

$

Usually ships in 3-6 days

0

25

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 131-7745-03

BRACKET-UPSTOP
(Superseded to 132-0941-03)

$19.99

$

Usually ships in 3-6 days

0

27

Toro 132-0868-03

GUARD-FRONT

$11.99

$

Usually ships in 3-6 days

0
