74680 (SW 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) 50 INCH DECK ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

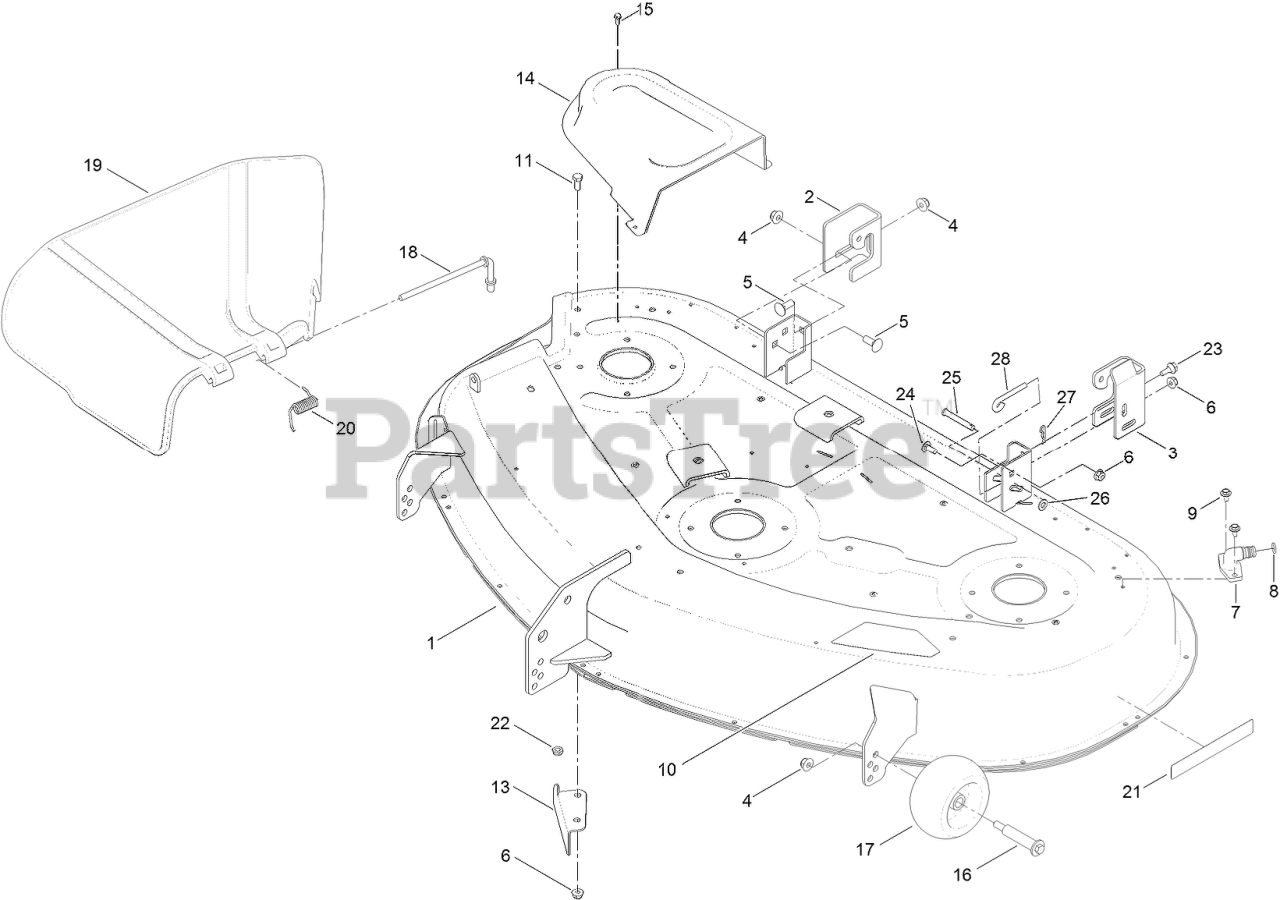

50 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 131-3606

50 INCH DECK AND DECAL ASM

$1365.99

$

Usually ships in 3-6 days

0

2

Toro 131-4138

BRACKET-HANGER, RH

$13.99

$

In Stock, only 2 left!

0

3

Toro 131-1091

BRACKET-HANGER, LH

$14.99

$

In Stock, Qty 12

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

8

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

9

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

10

Toro 117-1223

DECAL

$12.99

$

In Stock, only 4 left!

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

13

Toro 112-3983-03

BAFFLE-CUTOFF

$26.99

$

Usually ships in 3-6 days

0

14

Toro 108-7890

COVER-BELT

$21.99

$

In Stock, only 2 left!

0

15

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

16

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

17

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

18

Toro 112-3950

ROD-PIVOT

$19.99

$

In Stock, only 1 left!

0

19

Toro 108-7895

DEFLECTOR

$67.99

$

In Stock, Qty 20+

0

20

Toro 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 7

0

21

Toro 119-2368

DECAL-RECYCLER

$6.49

$

In Stock, only 2 left!

0

22

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

23

Toro 120-7024

SCREW-SHOULDER, HHF

$2.99

$

In Stock, Qty 18

0

24

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

25

Toro 110-0618

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

28

Toro 131-0955

ROD-LEVEL, DECK

$7.99

$

In Stock, only 1 left!

0
