74679 (ZX 4275 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 414699999) Tire and Caster Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

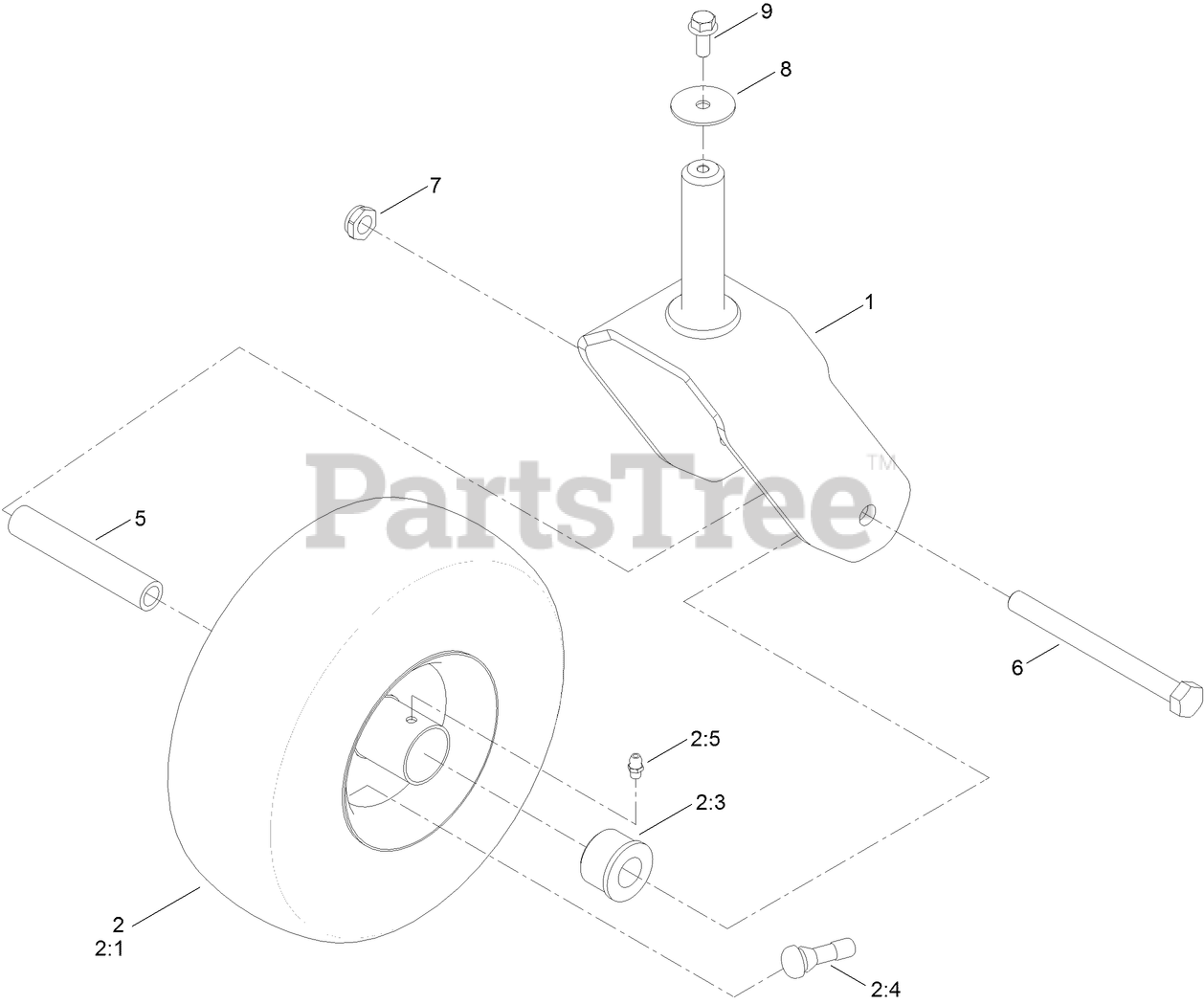

Tire and Caster Assembly Parts Diagram

  • Title

1

Toro 139-3274-01

FORK ASM

$62.99

$

In Stock, only 1 left!

0

2

Toro 139-5842

TIRE ASM
(Superseded to 147-2935)

$72.99

$

In Stock, Qty 6

0

2:1

Toro 140-2736

TIRE
(Superseded to 147-2936)

$49.99

$

In Stock, only 1 left!

0

2:3

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

2:4

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

2:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2:99

Toro 105-0844

TUBE-INNER

Note: Not illustrated

$46.99

$

In Stock, only 1 left!

0

2:99

Toro 105-0844

TUBE-INNER

Note: Optional Equipment

$46.99

$

In Stock, only 1 left!

0

5

Toro 138-7240

BUSHING-SPANNER

$10.99

$

In Stock, only 2 left!

0

6

Toro 139-2607

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

7

Toro 139-2617

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

8

Toro 115-1151

WASHER-FLAT

$3.49

$

Usually ships in 3-6 days

0

9

Toro 139-2598

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0
