74676 (SW 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 402262593) Brake Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

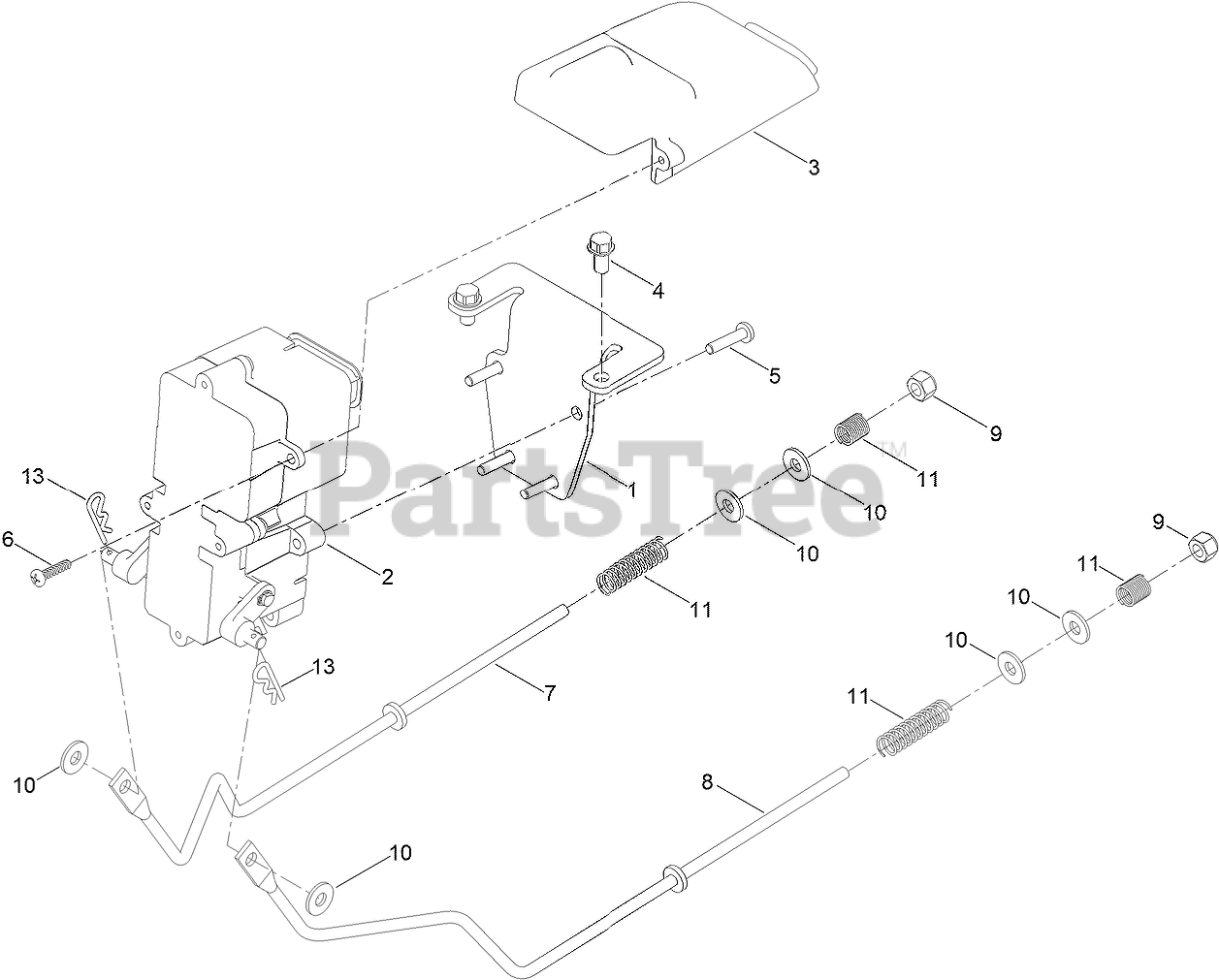

Brake Assembly Parts Diagram

  • Title
1

Toro 130-0790-03

BRACKET-MOUNT, BRAKE

$10.99

$

In Stock, only 1 left!

0

2

Toro 136-4214

BRAKE BOX ASM

$180.99

$

In Stock, Qty 5

0

3

Toro 132-6949

COVER-CONNECTOR

$13.99

$

In Stock, only 1 left!

0

4

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

5

Toro 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 6

0

6

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Toro 121-2974

ROD-BRAKE, RH

$12.99

$

In Stock, only 1 left!

0

8

Toro 121-2975

ROD-BRAKE, LH

$12.99

$

Usually ships in 3-6 days

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

11

Toro 117-1169

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 14

0

13

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0
