74675 (SW 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 315000001 - 315000205) (2015) IGNITION AND ELECTRICAL ENGINE ASSEMBLY NO. 127-9041 Parts Diagram

42" TimeCutter Zero-Turn Mower

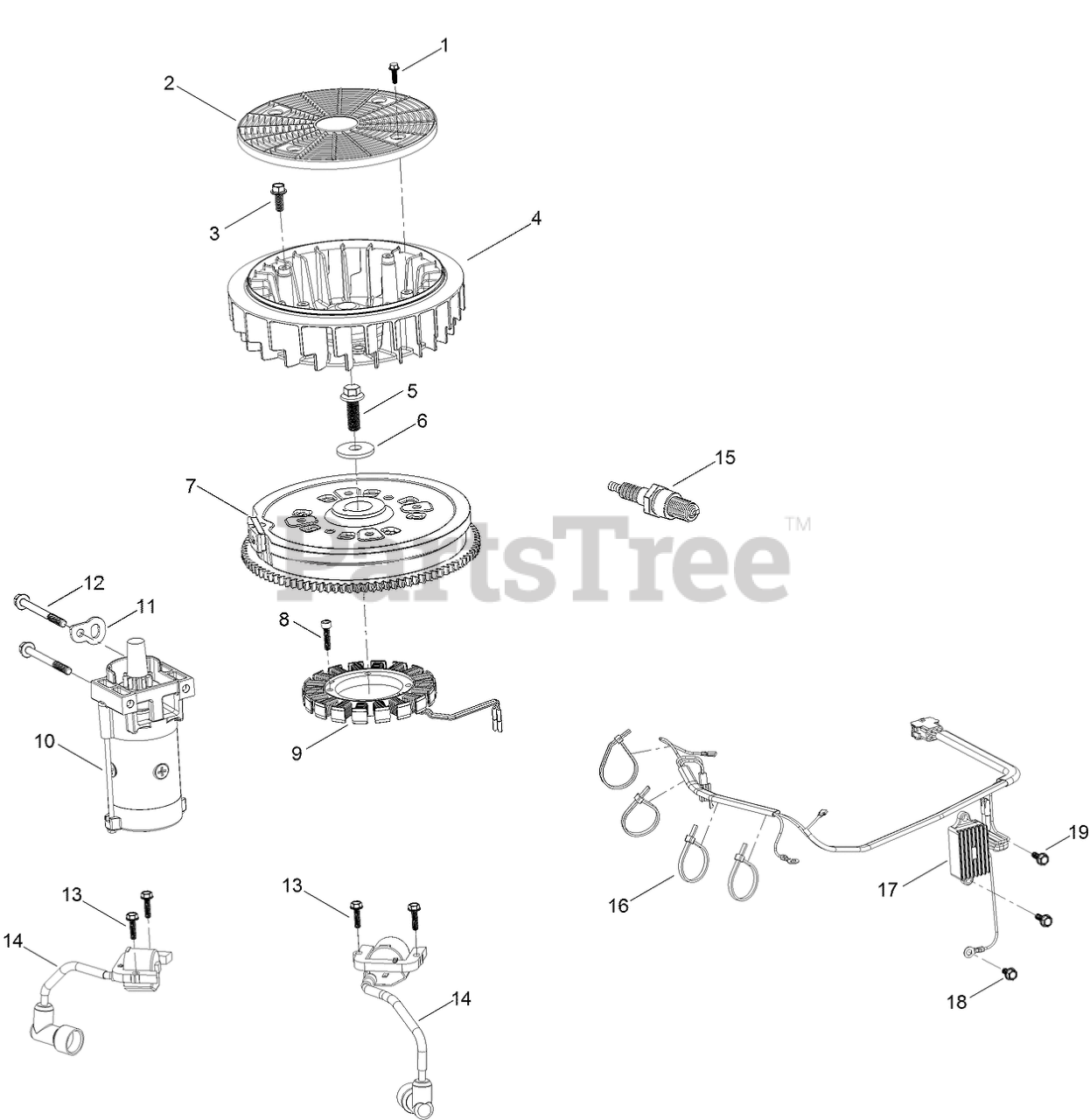

IGNITION AND ELECTRICAL ENGINE ASSEMBLY NO. 127-9041 Parts Diagram

  • Title

1

Toro 127-9197

SCREW-HWH

$1.49

$

In Stock, Qty 6

0

2

Toro 127-9198

SCREEN-ROTATING

$23.99

$

In Stock, only 3 left!

0

3

Toro 127-9199

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

4

Toro 127-9200

FAN-COOLING

$54.99

$

In Stock, only 1 left!

0

5

Toro 127-9201

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

6

Toro 127-9202

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

7

Toro 127-9306

FLYWHEEL

$229.99

$

In Stock, only 2 left!

0

8

Toro 127-9210

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

9

Toro 127-9211

ALTERNATOR
(Superseded to 136-7876)

$109.99

$

In Stock, Qty 5

0

10

Toro 127-9209

MOTOR-STARTER
(Superseded to 136-7880)

$286.99

$

In Stock, Qty 13

0

11

Toro 127-9208

BRACKET-LIFT

$2.99

$

Usually ships in 3-6 days

0

12

Toro 120-4231

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

13

Toro 121-0007

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

14

Toro 127-9216

IGNITION COIL ASM
(Superseded to 139-0720)

$62.99

$

In Stock, Qty 5

0

15

Toro 81-3250

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

16

Toro 127-9220

TIE-ZIP

$1.49

$

Usually ships in 3-6 days

0

17

Toro 127-9219

REGULATOR-VOLTAGE W/HARNESS
(Superseded to 136-7879)

$69.99

$

In Stock, only 2 left!

0

18

Toro 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

19

Toro 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0
