74670 (SW 3200) - Toro 32" TimeCutter Zero-Turn Mower (SN: 316000001 - 316999999) (2016) STEERING CABLE ASSEMBLY Parts Diagram

32" TimeCutter Zero-Turn Mower

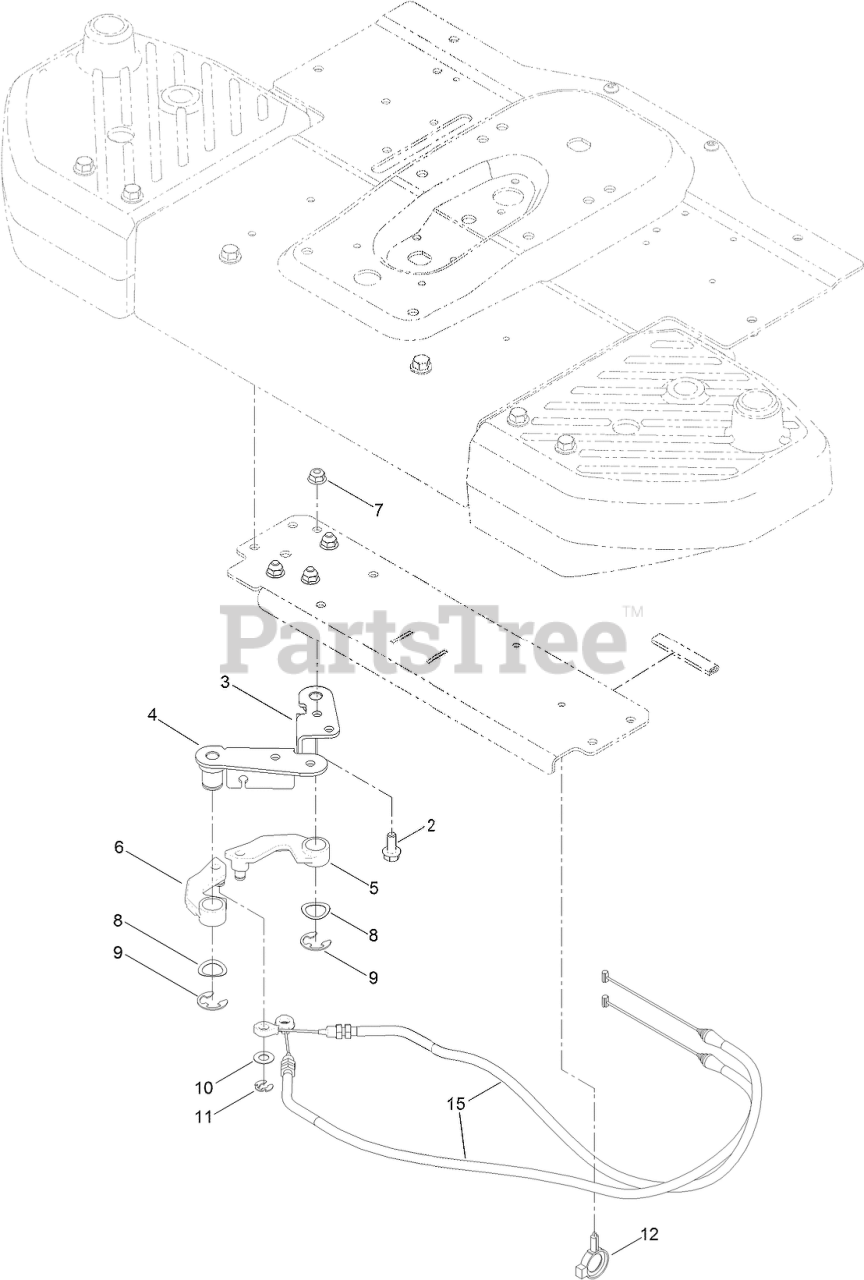

STEERING CABLE ASSEMBLY Parts Diagram

  • Title
2

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

3

Toro 132-6943

CABLE BRACKET ASM

$13.99

$

Usually ships in 3-6 days

0

4

Toro 132-6944

CABLE BRACKET ASM

$9.99

$

Usually ships in 3-6 days

0

5

Toro 131-3623

ARM-CABLE, RH

$39.99

$

Usually ships in 3-6 days

0

6

Toro 131-3647

ARM-CABLE, LH

$39.99

$

Usually ships in 3-6 days

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

9

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

10

Toro 37-8080

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

11

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

12

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

15

Toro 127-0118

CABLE-STEERING

$47.99

$

In Stock, only 4 left!

0
