74665 (ZS 4200 S) - Toro 42" TimeCutter Zero-Turn Mower (SN: 403284295 - 999999999) 42 Inch Deck Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

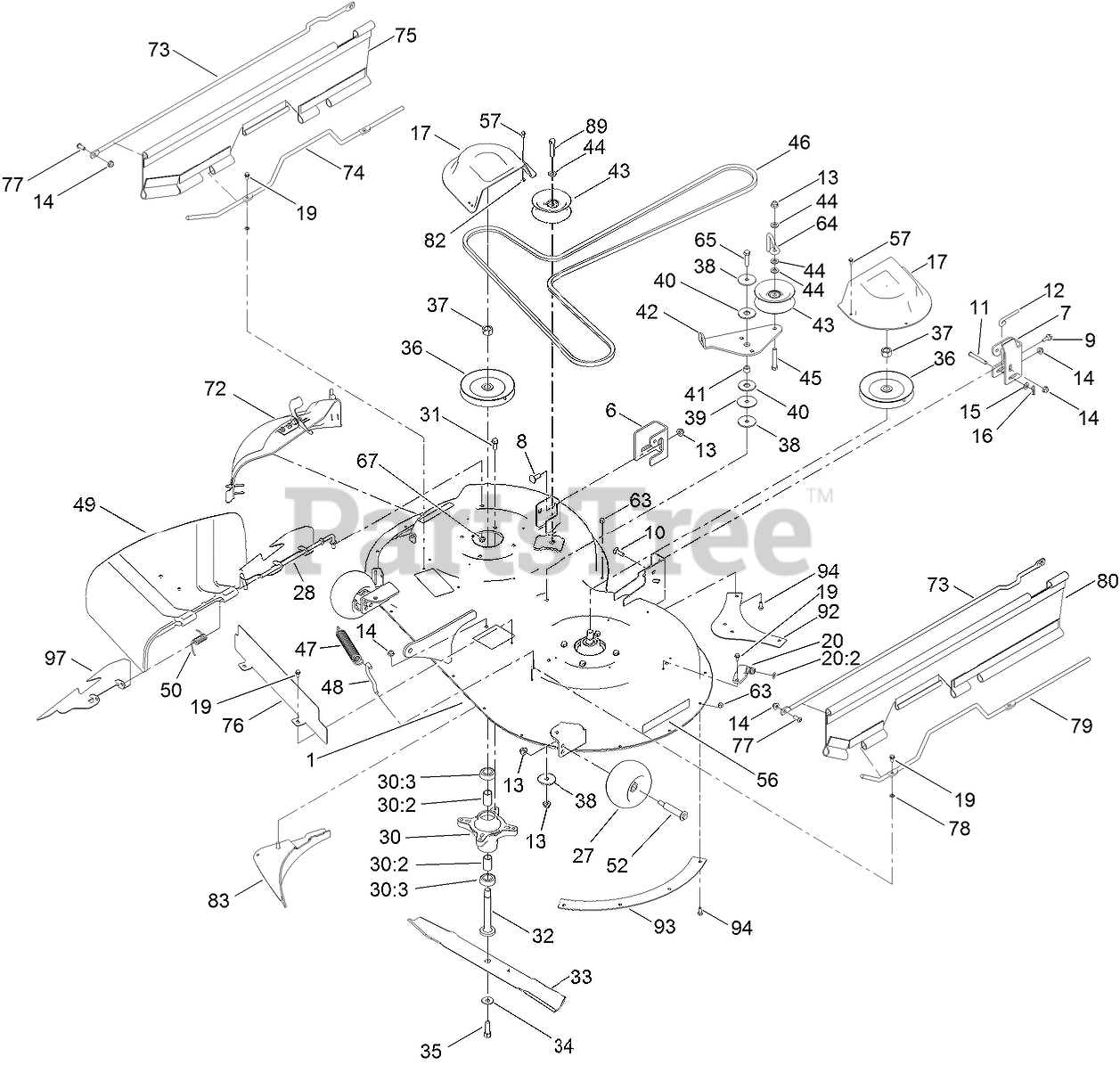

42 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 137-7041

42 INCH DECK AND DECAL ASM

$660.99

$

Usually ships in 3-6 days

0

6

Toro 131-4138

BRACKET-HANGER, RH

$13.99

$

In Stock, Qty 20+

0

7

Toro 131-1091

BRACKET-HANGER, LH

$14.99

$

In Stock, Qty 20+

0

8

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 20+

0

10

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

11

Toro 110-0618

PIN-CLEVIS

$13.99

$

In Stock, Qty 20+

0

12

Toro 131-0955

ROD-LEVEL, DECK

$7.99

$

In Stock, Qty 11

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Toro 108-7889

COVER-BELT

$34.99

$

In Stock, only 3 left!

0

19

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Toro 133-9289

FITTING-WASHOUT

$6.49

$

In Stock, Qty 20+

0

20:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 20+

0

27

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

28

Toro 137-2019

ROD-PIVOT

$12.99

$

In Stock, Qty 15

0

30

Toro 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$78.99

$

In Stock, Qty 20+

0

30:2

Toro 120-7935

SPACER

$2.49

$

In Stock, Qty 20+

0

30:3

Toro 136-5441

BEARING-BALL

$7.99

$

In Stock, Qty 20+

0

31

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

32

Toro 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 20+

0

33

Toro 117-5376-03

BLADE-MULCH

$30.99

$

In Stock, Qty 17

0

34

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

36

Toro 125-5574

PULLEY
(Superseded to 139-2433)

$37.99

$

In Stock, Qty 20+

0

37

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

38

Toro 63-7400

WASHER-REBOUND

$3.49

$

In Stock, Qty 20+

0

39

Toro 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

40

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

41

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0

42

Toro 114-8540

ARM-IDLER

$21.99

$

In Stock, Qty 16

0

43

Toro 132-9420

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

0

44

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

46

Toro 119-8819

V-BELT
(Superseded to 147-2924)

$

$

Not available

47

Toro 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, only 4 left!

0

48

Toro 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 20+

0

49

Toro 137-7046

DEFLECTOR

$85.99

$

In Stock, Qty 20+

0

50

Toro 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 20+

0

52

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 20+

0

56

Toro 119-2368

DECAL-RECYCLER

$6.49

$

In Stock, only 2 left!

0

57

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

63

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

64

Toro 107-7307

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 20+

0

65

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

67

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

72

Toro 137-5034

42 INCH MULCH PLUG ASM

$130.99

$

In Stock, only 1 left!

0

73

Toro 131-3669

ROD-SUPPORT, UPPER

$21.99

$

Usually ships in 3-6 days

0

74

Toro 137-5020

ROD-SUPPORT, LOWER (RH)

$28.99

$

Usually ships in 3-6 days

0

75

Toro 137-5026

RIGHT GUARD ASM

$21.99

$

Usually ships in 3-6 days

0

76

Toro 137-2039-03

SHIELD-FROUNT

$22.99

$

Usually ships in 3-6 days

0

77

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

78

Toro 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0

79

Toro 137-5019

ROD-SUPPORT, LOWER (LH)

$28.99

$

Usually ships in 3-6 days

0

80

Toro 137-5025

LEFT GUARD ASM

$21.99

$

Usually ships in 3-6 days

0

82

Toro 132-0900

NUT-RETAINING

$0.99

$

Usually ships in 3-6 days

0

83

Toro 137-7034-03

BAFFLE-CLIPPING

$56.99

$

Usually ships in 3-6 days

0

89

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

92

Toro 137-2036-03

BAFFLE-BLOWOUT, REAR

$18.99

$

In Stock, only 1 left!

0

93

Toro 137-2037-03

BAFFLE-BLOWOUT, SIDE

$11.99

$

In Stock, only 1 left!

0

94

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

97

Toro 138-2555-03

DEFLECTOR-INSERT

$26.99

$

Usually ships in 3-6 days

0
