74661 (ZS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400900000 - 402490292) Seat Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

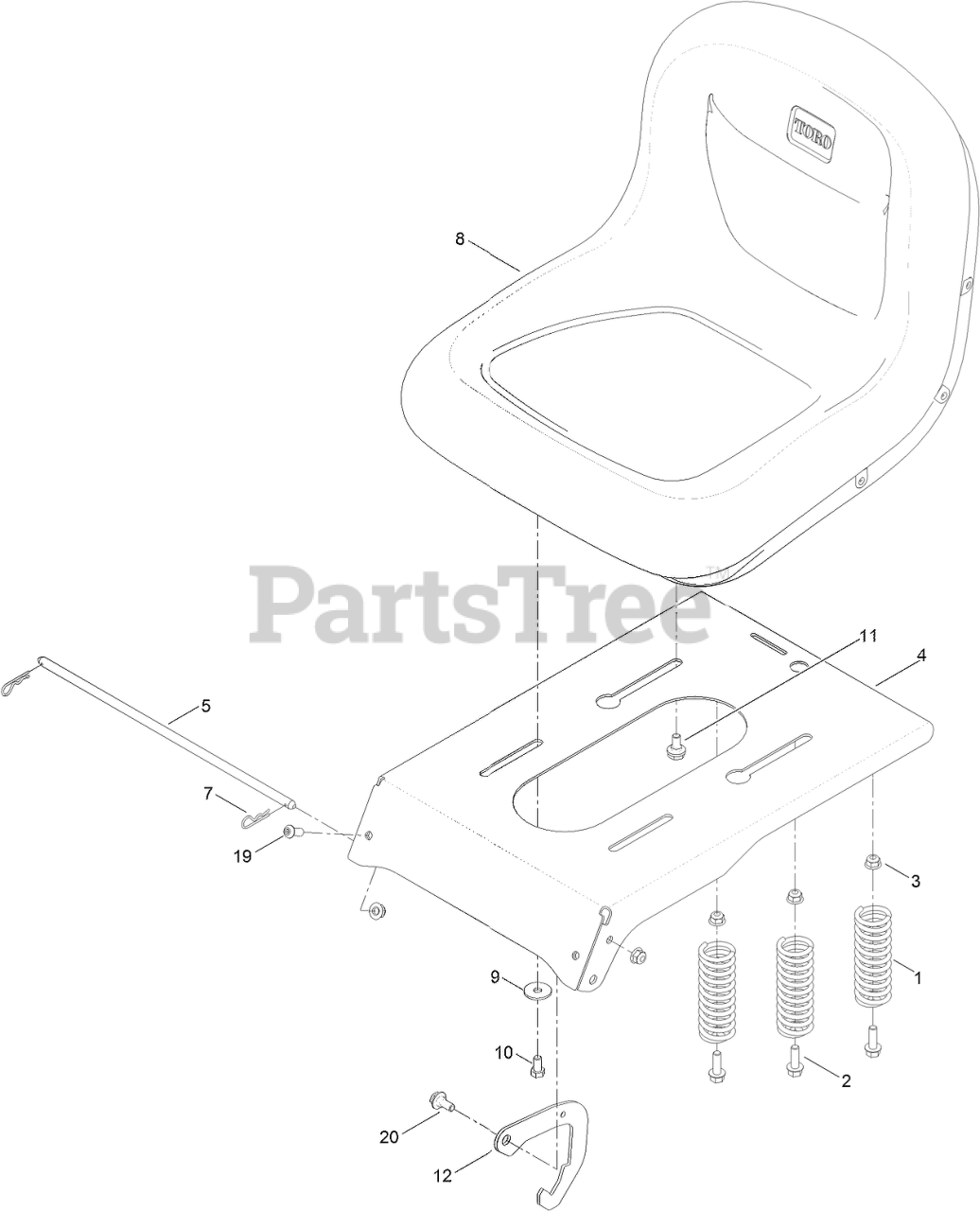

Seat Assembly Parts Diagram

  • Title

1

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

2

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 131-4037-01

PAN-SEAT

$78.99

$

Usually ships in 3-6 days

0

5

Toro 119-3433

ROD-PIVOT, NARROW

$12.99

$

Usually ships in 3-6 days

0

7

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 119-8830

SEAT-18 INCH

$482.99

$

Usually ships in 3-6 days

0

8:1

Toro 105-6978

ARMREST KIT (MILSCO)

Note: Not illustrated

$172.99

$

Usually ships in 3-6 days

0

9

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

10

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

11

Toro 37-8771

BOLT-SHOULDER,HFH

$5.49

$

In Stock, only 3 left!

0

12

Toro 132-9353

LATCH-SEAT
(Superseded to 138-7250)

$8.49

$

In Stock, only 1 left!

0

19

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

20

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0
