74660 (ZS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) SEAT ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

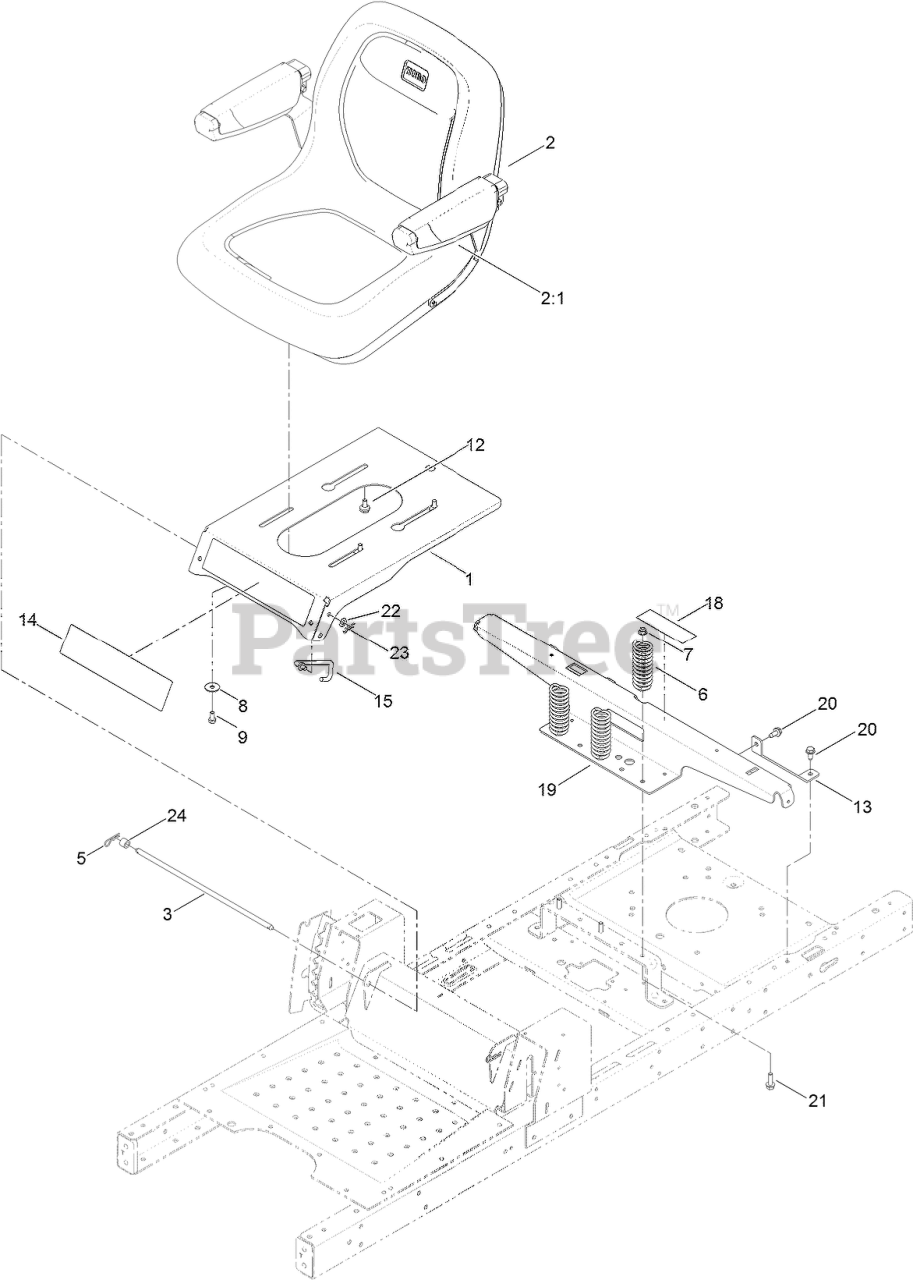

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3391-01

PAN-SEAT
(Superseded to 133-4468)

$102.99

$

In Stock, only 1 left!

0

2

Toro 119-8830

SEAT-18 Inch

$

$

Not available

2:1

Toro 105-6978

ARMREST KIT (MILSCO)

$172.99

$

Usually ships in 3-6 days

0

3

Toro 115-4966

ROD-STOP

$19.99

$

Usually ships in 3-6 days

0

5

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

6

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

9

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, Qty 20+

0

13

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.49

$

Usually ships in 3-6 days

0

14

Toro 121-3036

DECAL-TIMECUTTER

$10.99

$

Usually ships in 3-6 days

0

15

Toro 119-8972

STOP-SEAT

$7.99

$

Usually ships in 3-6 days

0

18

Toro 106-8717

DECAL-SERVICE, CE

$7.99

$

Usually ships in 3-6 days

0

19

Toro 131-1039-03

SUPPORT-POD, WIDE

$124.99

$

Usually ships in 3-6 days

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, Qty 16

0
