74650 (ZS 3200 S) - Toro 32" TimeCutter Zero-Turn Mower (SN: 401000000 - 403022889) Ignition and Electrical Assembly Parts Diagram

32" TimeCutter Zero-Turn Mower

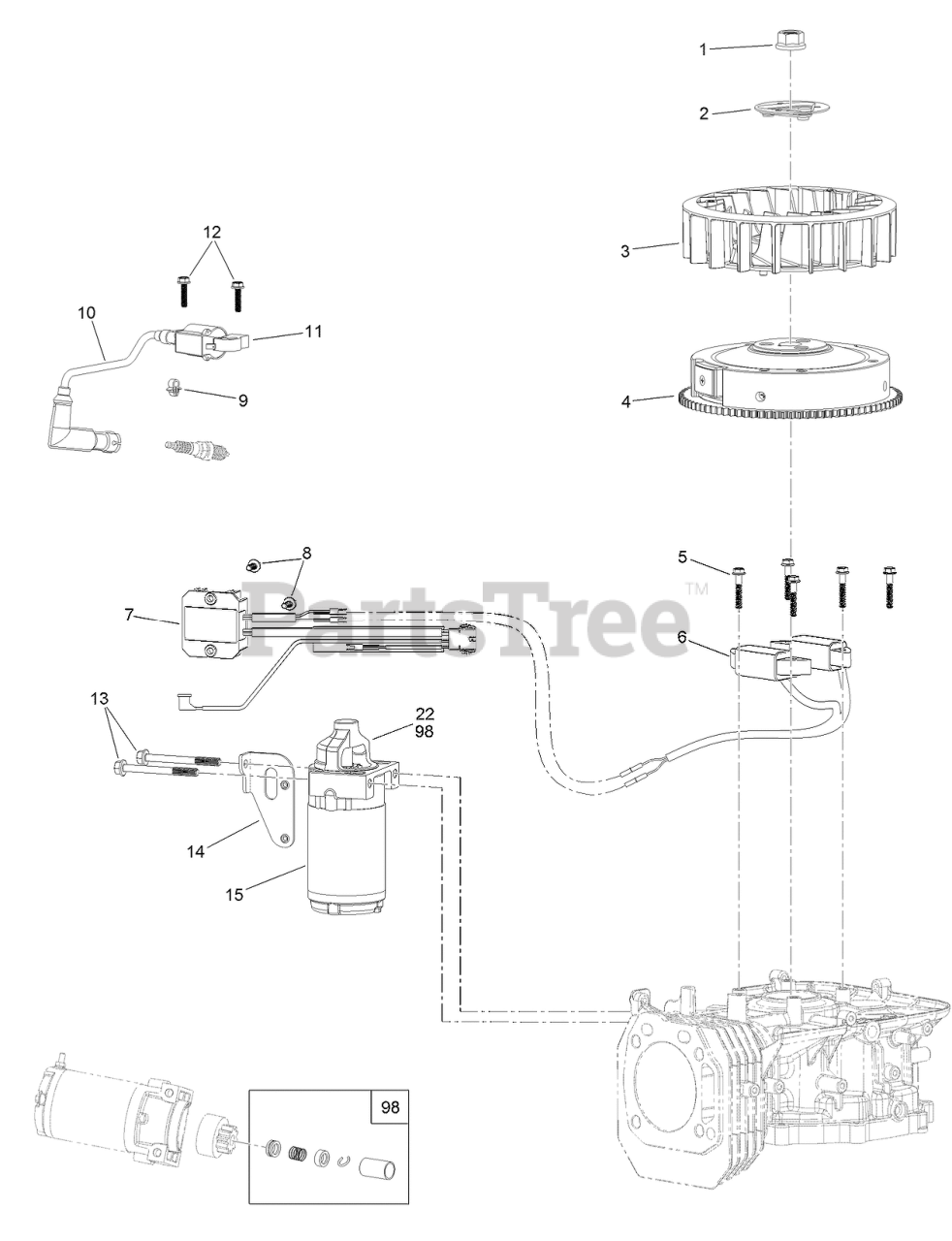

Ignition and Electrical Assembly Parts Diagram

  • Title

1

Toro 120-4213

NUT-FLANGE

$5.49

$

In Stock, only 1 left!

0

2

Toro 120-4212

PULLEY-STARTER

$11.99

$

In Stock, only 1 left!

0

3

Toro 120-4211

FAN-COOLING

$34.99

$

In Stock, only 1 left!

0

4

Toro 120-4399

FLYWHEEL

$183.99

$

Usually ships in 3-6 days

0

5

Toro 120-4223

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 127-9176

See Supercession: 136-7833
(Superseded to 136-7833)

$67.99

$

Usually ships in 3-6 days

0

7

Toro 127-9178

See Supercession: 136-7836
(Superseded to 136-7836)

$103.99

$

In Stock, only 1 left!

0

8

Toro 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

9

Toro 120-4316

CLAMP-WIRE

$1.49

$

Usually ships in 3-6 days

0

10

Toro 120-4226

BOOT-PLUG, SPARK

$12.99

$

Usually ships in 3-6 days

0

11

Toro 127-9177

See Supercession: 136-7831
(Superseded to 136-7831)

$67.99

$

Usually ships in 3-6 days

0

12

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0

13

Toro 120-4231

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

14

Toro 120-4230

BRACKET-STARTER

$15.99

$

Usually ships in 3-6 days

0

15

Toro 133-9832

MOTOR-STARTER
(Superseded to 136-7832)

$299.99

$

In Stock, Qty 10

0

22

Toro 133-1562

PINION-STARTER

$54.99

$

Usually ships in 3-6 days

0

98

Toro 120-4392

STARTER REPAIR KIT

$19.99

$

In Stock, only 1 left!

0
