74650 (ZS 3200 S) - Toro 32" TimeCutter Zero-Turn Mower (SN: 401000000 - 403022889) Air Intake and Filtration Assembly Parts Diagram

32" TimeCutter Zero-Turn Mower

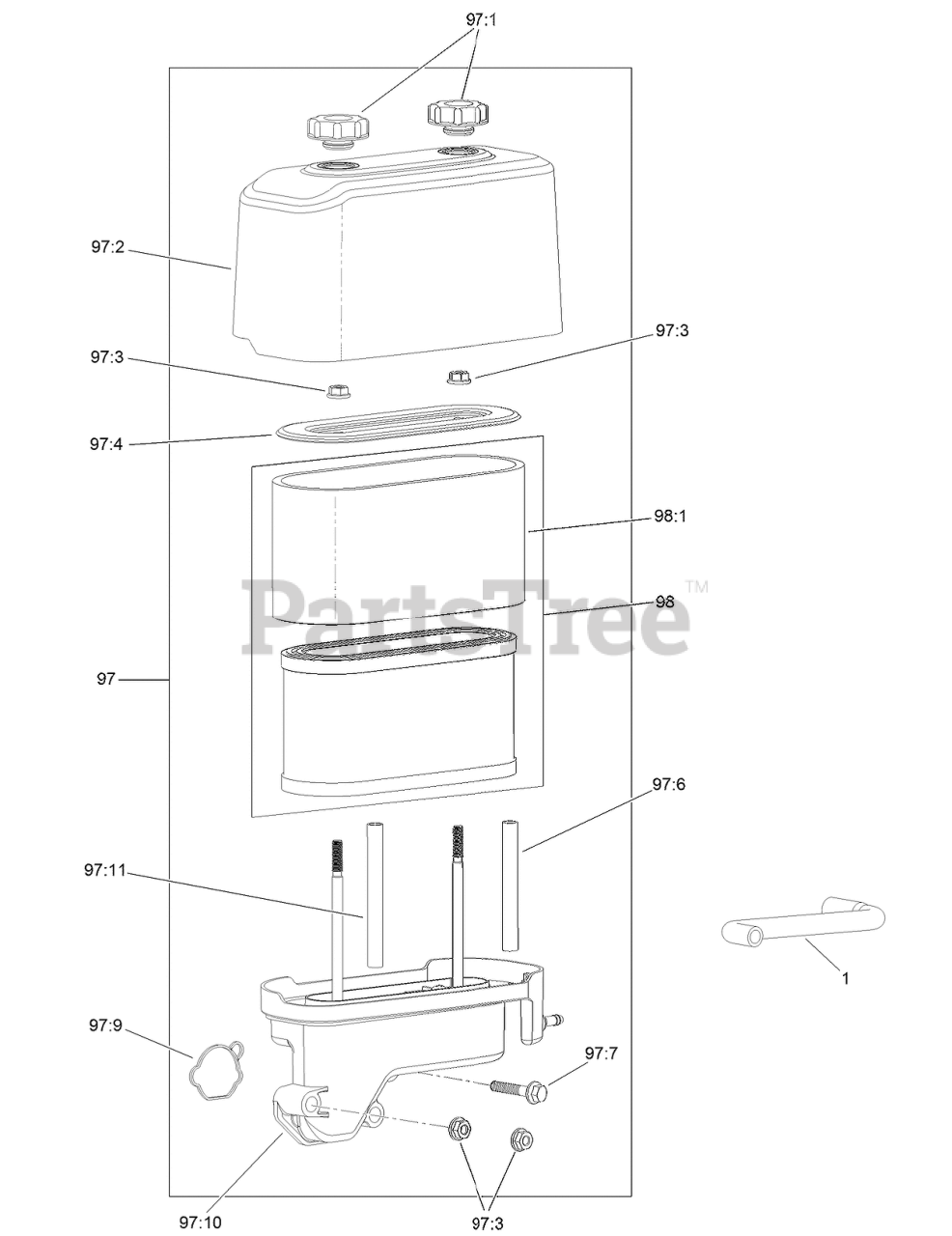

Air Intake and Filtration Assembly Parts Diagram

  • Title

1

Toro 120-4255

TUBE-BREATHER
(Superseded to 136-7829)

$5.49

$

In Stock, only 1 left!

0

97

Toro 127-9186

See Supercession: 136-7814
(Superseded to 136-7814)

$119.99

$

Usually ships in 3-6 days

0

97:1

Toro 120-4312

NUT-SPEED

$6.49

$

In Stock, only 1 left!

0

97:2

Toro 120-4311

COVER-FILTER, AIR

$17.99

$

In Stock, only 1 left!

0

97:3

Toro 120-4236

NUT-FLANGE

$1.49

$

In Stock, Qty 20+

0

97:4

Toro 120-4310

DISCONTINUED

$

$

Not available

97:6

Toro 120-4333

SPACER-FILTER, AIR
(Superseded to 136-7809)

$25.99

$

In Stock, only 2 left!

0

97:7

Toro 120-4284

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

97:9

Toro 127-9185

GASKET-CARBURETOR

$5.49

$

In Stock, only 1 left!

0

97:10

Toro 127-9191

See Supercession: 127-9348
(Superseded to 127-9348)

$29.99

$

In Stock, only 1 left!

0

97:11

Toro 120-4334

SPACER-FILTER, AIR
(Superseded to 136-7809)

$25.99

$

In Stock, only 2 left!

0

98

Toro 127-9193

See Supercession: 136-7809
(Superseded to 136-7809)

$25.99

$

In Stock, only 2 left!

0

98:1

Toro 120-4309

PREFILTER
(Superseded to 136-7807)

$8.49

$

In Stock, only 4 left!

0
