74650 (ZS 3200 S) - Toro 32" TimeCutter Zero-Turn Mower (SN: 316000001 - 316999999) (2016) FUEL SYSTEM ASSEMBLY ENGINE ASSEMBLY NO. 127-9358 Parts Diagram

32" TimeCutter Zero-Turn Mower

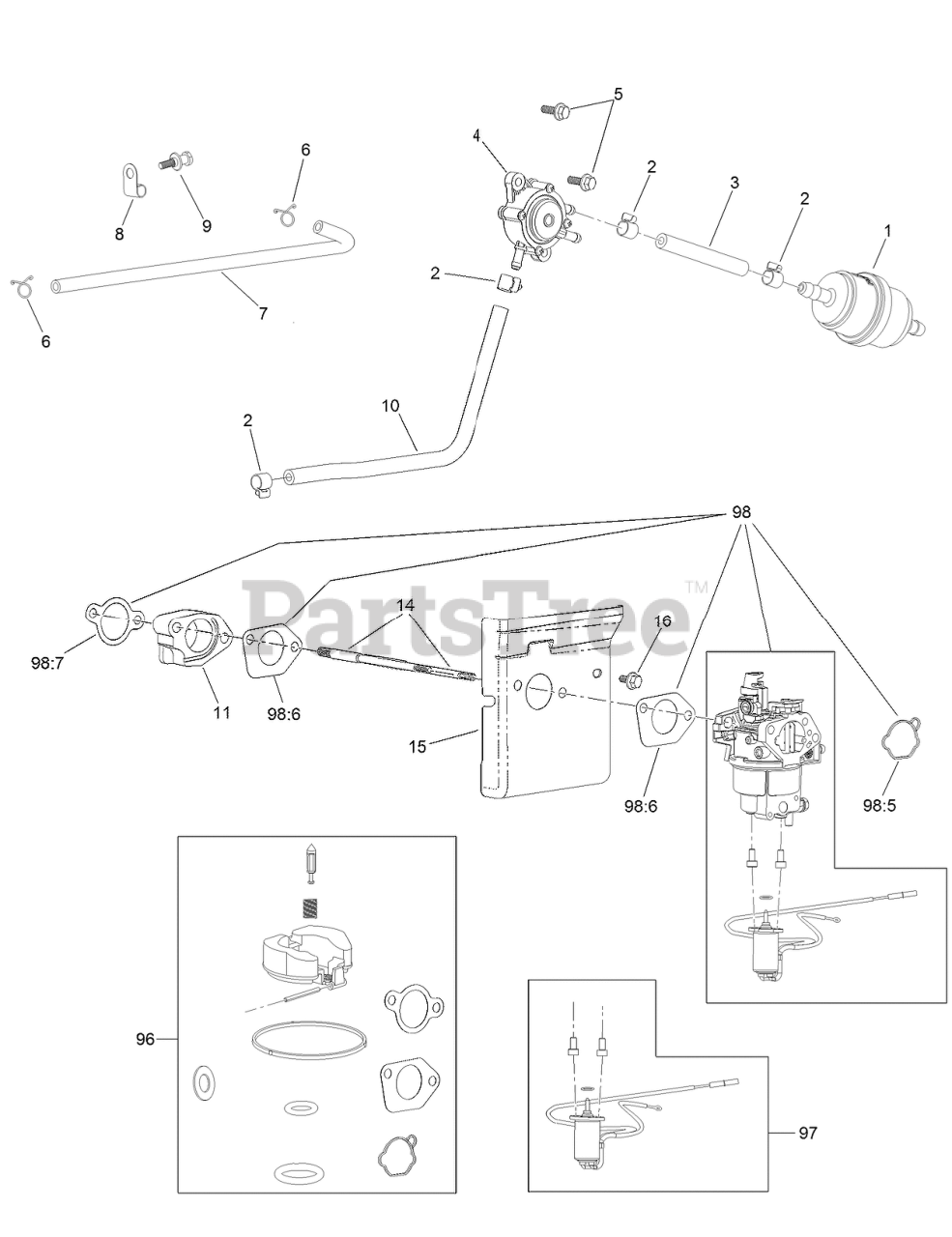

FUEL SYSTEM ASSEMBLY ENGINE ASSEMBLY NO. 127-9358 Parts Diagram

  • Title

1

Toro 133-1563

FILTER-FUEL
(Superseded to 139-0717)

$12.99

$

In Stock, Qty 20+

0

2

Toro 120-4251

CLAMP-FUEL LINE
(Superseded to 139-0719)

$5.49

$

Usually ships in 3-6 days

0

3

Toro 120-4371

LINE-FUEL

$6.49

$

Usually ships in 3-6 days

0

4

Toro 120-4353

PUMP-PULSE, FUEL
(Superseded to 139-0685)

$79.99

$

Usually ships in 3-6 days

0

5

Toro 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

6

Toro 121-0114

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

7

Toro 120-4372

LINE-PULSE
(Superseded to 136-7830)

$7.99

$

In Stock, only 1 left!

0

8

Toro 120-4287

CLAMP-J

$2.99

$

Usually ships in 3-6 days

0

9

Toro 120-4217

SCREW-SHOULDER, HH

$7.99

$

In Stock, only 3 left!

0

10

Toro 120-4370

LINE-FUEL

$15.99

$

Usually ships in 3-6 days

0

11

Toro 120-4249

INSULATOR-CARBURETOR

$6.99

$

Usually ships in 3-6 days

0

14

Toro 120-4202

STUD-MOUNT, CARBURETOR

$7.99

$

In Stock, only 1 left!

0

15

Toro 120-4248

SHIELD-HEAT

$18.99

$

Usually ships in 3-6 days

0

16

Toro 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

96

Toro 127-9194

CARB REPAIR KIT WITH GASKETS

$28.99

$

In Stock, only 1 left!

0

97

Toro 127-9190

SOLENOID KIT

$45.99

$

In Stock, only 1 left!

0

98

Toro 127-9183

CARBURETOR KIT
(Superseded to 136-7826)

$124.99

$

In Stock, only 1 left!

0

98:5

Toro 127-9185

GASKET-CARBURETOR

$5.49

$

In Stock, only 1 left!

0

98:6

Toro 120-4247

GASKET-CARBURETOR

$2.99

$

In Stock, Qty 8

0

98:7

Toro 120-4250

GASKET-CARBURETOR

$2.99

$

In Stock, Qty 8

0

99

Toro 127-9362

HIGH ALTITUDE KIT (1P92)
(Superseded to 133-9929)

Note: Not illustrated

$18.99

$

Usually ships in 3-6 days

0
