74650 (ZS 3200 S) - Toro 32" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) HYDRO TRANSAXLE AND REAR WHEEL ASSEMBLY Parts Diagram

32" TimeCutter Zero-Turn Mower

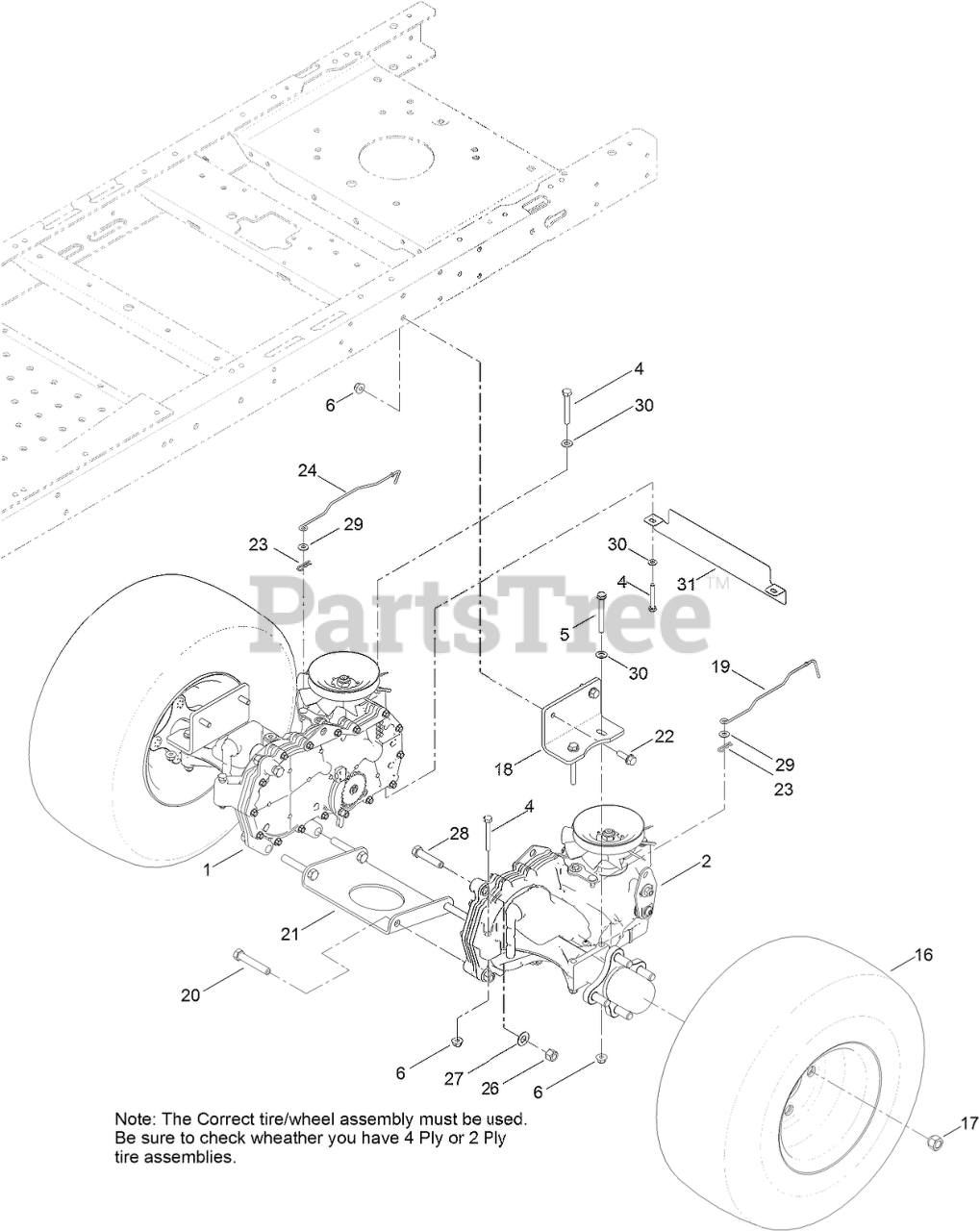

HYDRO TRANSAXLE AND REAR WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3331

RH HYDRO TRANSAXLE ASM

$1354.99

$

Usually ships in 3-6 days

0

2

Toro 119-3330

LH HYDRO TRANSAXLE ASM

$1340.99

$

Usually ships in 3-6 days

0

4

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

5

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

16

Toro 119-3422

4 PLY WHEEL AND TIRE ASM

$181.99

$

Usually ships in 3-6 days

0

16

Toro 131-3670

2 PLY TIRE AND WHEEL ASM

$166.99

$

Usually ships in 3-6 days

0

17

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 117-7264-03

MOUNT-HYDRO

$9.49

$

Usually ships in 3-6 days

0

19

Toro 131-0900

ROD-BYPASS, LH
(Superseded to 138-7243)

$8.49

$

In Stock, only 1 left!

0

20

Toro 324-10

SCREW-HH

$2.49

$

In Stock, Qty 15

0

21

Toro 119-3339-03

PLATE-CROSS, HYDRO

$25.99

$

Usually ships in 3-6 days

0

22

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

23

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

24

Toro 130-7049

ROD-BYPASS, RH
(Superseded to 138-7245)

$8.49

$

Usually ships in 3-6 days

0

26

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 324-8

SCREW-HH

$5.99

$

In Stock, Qty 18

0

29

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Toro 131-3668-03

GUARD REAR, NARROW

$15.99

$

Usually ships in 3-6 days

0
