74650 (ZS 3200 S) - Toro 32" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) 32 INCH DECK ASSEMBLY NO. 131-3602 Parts Diagram

32" TimeCutter Zero-Turn Mower

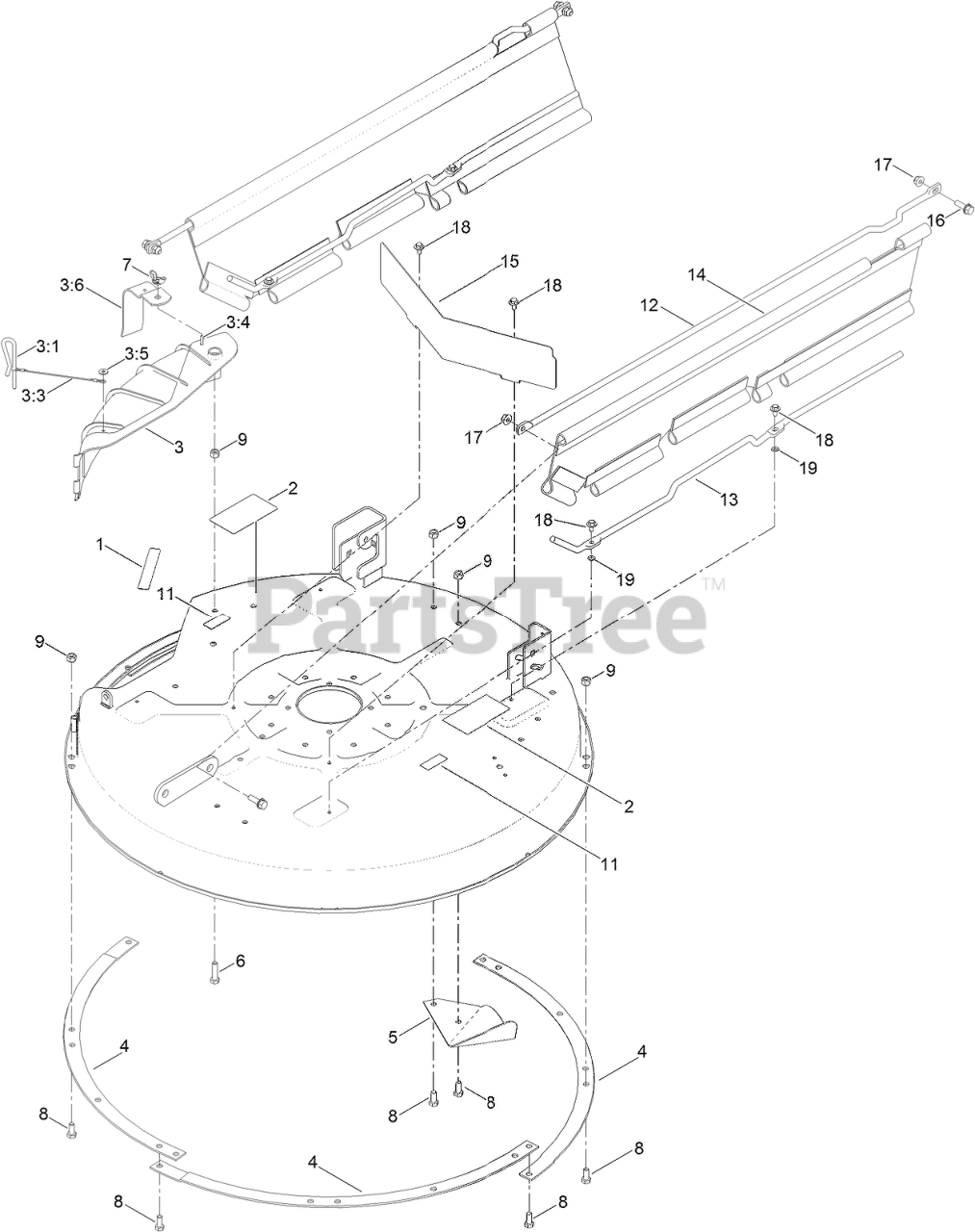

32 INCH DECK ASSEMBLY NO. 131-3602 Parts Diagram

  • Title

1

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

2

Toro 110-6691

DECAL-DANGER

$5.49

$

In Stock, only 2 left!

0

3

Toro 82-6151

DISCHARGE COVER ASM

$121.99

$

In Stock, only 2 left!

0

3:1

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

3:3

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

3:4

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

3:5

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

3:6

Toro 83-7010-03

BRACE

$27.99

$

Usually ships in 3-6 days

0

4

Toro 80-4490-03

RING-DECK

$19.99

$

Usually ships in 3-6 days

0

5

Toro 80-2630-03

KICKER

$33.99

$

In Stock, only 4 left!

0

6

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

7

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 114-1606

DECAL-DANGER

$2.99

$

In Stock, Qty 7

0

12

Toro 131-3669

ROD-SUPPORT, UPPER

$21.99

$

Usually ships in 3-6 days

0

13

Toro 131-3681

ROD-SUPPORT, LOWER

$22.99

$

Usually ships in 3-6 days

0

14

Toro 131-3685

GUARD-SIDE

$25.99

$

Usually ships in 3-6 days

0

15

Toro 131-3666-03

SHIELD-FRONT

$20.99

$

Usually ships in 3-6 days

0

16

Toro 131-4080

SCREW-HSBH

$1.49

$

Usually ships in 3-6 days

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

19

Toro 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0
