74643 (MX 5060) - Toro 50" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) DECK LIFT ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

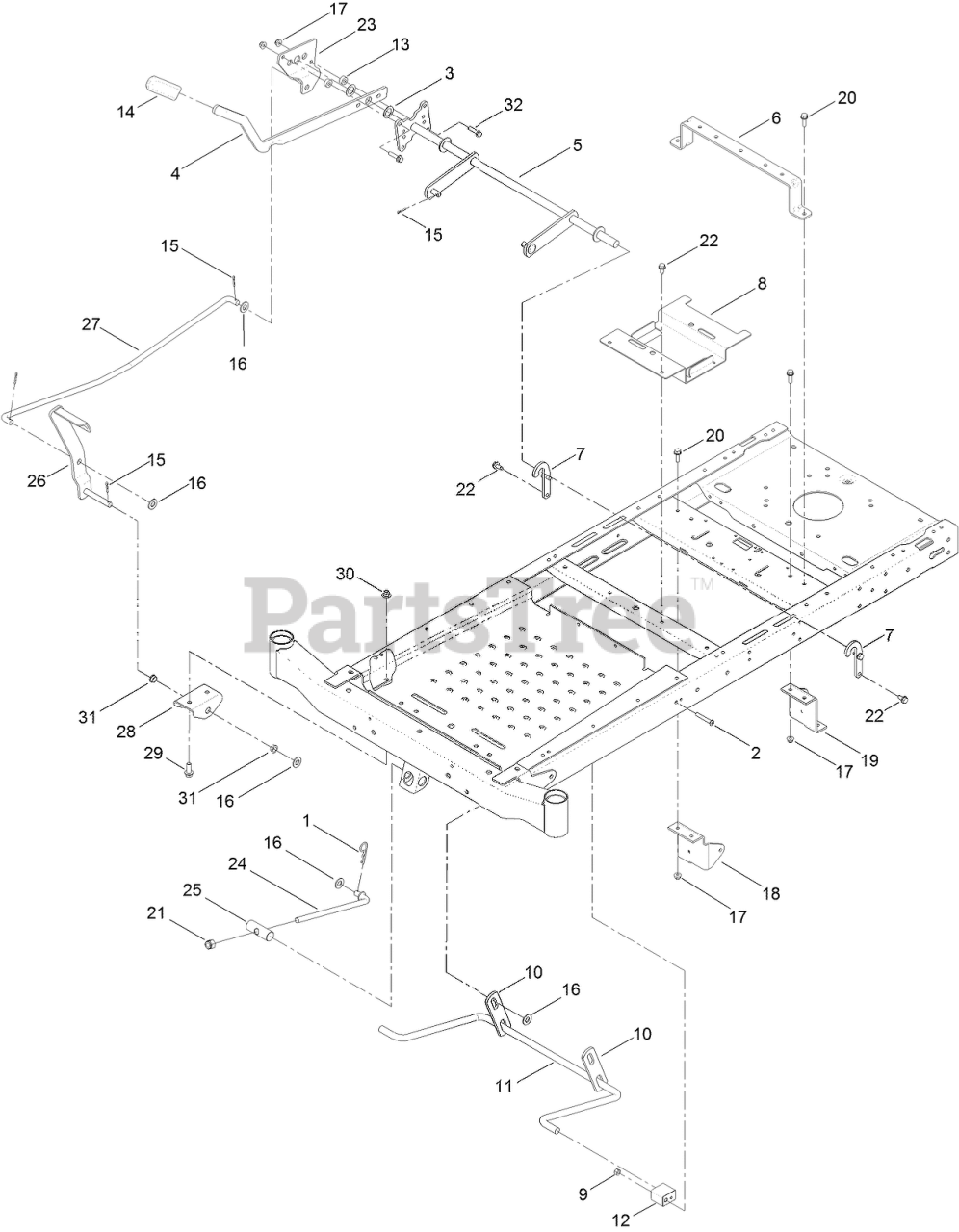

DECK LIFT ASSEMBLY Parts Diagram

  • Title
1

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

2

Toro 120-5499

SCREW-HSBH

$2.99

$

In Stock, Qty 20+

0

3

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

4

Toro 119-3427-03

LEVER-LIFT

$25.99

$

In Stock, only 1 left!

0

5

Toro 119-3424-03

LIFT-DECK, WIDE
(Superseded to 132-6878-03)

$61.99

$

In Stock, only 2 left!

0

6

Toro 117-7337-03

BRACE-SEAT, REAR

$21.99

$

Usually ships in 3-6 days

0

7

Toro 119-8875

BRACKET-LIFT
(Superseded to 138-7233)

$6.49

$

In Stock, only 3 left!

0

8

Toro 119-3406-03

BRACKET-BATTERY
(Superseded to 135-0507-03)

$27.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 108-7840

LINK-LIFT
(Superseded to 138-7235)

$7.99

$

In Stock, Qty 16

0

11

Toro 119-3347

ARM-LIFT, REAR (WIDE)
(Superseded to 138-7239)

$37.99

$

In Stock, Qty 20+

0

12

Toro 108-7845

BLOCK-PIVOT

$17.99

$

In Stock, Qty 19

0

13

Toro 121-1759

SPACER

$2.99

$

In Stock, only 1 left!

0

14

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 3 left!

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 120-7936-01

MOUNT-HYDRO, FRONT (RH)

$30.99

$

Usually ships in 3-6 days

0

19

Toro 120-7937-01

MOUNT-HYDRO, FRONT (LH)

$30.99

$

Usually ships in 3-6 days

0

20

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

21

Toro 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 120-2275

PLATE-FOOTLIFT

$33.99

$

Usually ships in 3-6 days

0

24

Toro 104-8047

ROD-TRUNION
(Superseded to 131-3945)

$43.99

$

In Stock, Qty 11

0

25

Toro 119-8810

PIN-PIVOT

$17.99

$

In Stock, Qty 20+

0

26

$75.99

$

Usually ships in 3-6 days

0

27

Toro 120-2242

ROD-FOOTLIFT

$23.99

$

Usually ships in 3-6 days

0

28

Toro 120-2294-03

BRACKET-FOOTLIFT

$13.99

$

Usually ships in 3-6 days

0

29

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

30

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

32

Toro 3234-36

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0
