74641 (MX 5060) - Toro 50" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) SEAT ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

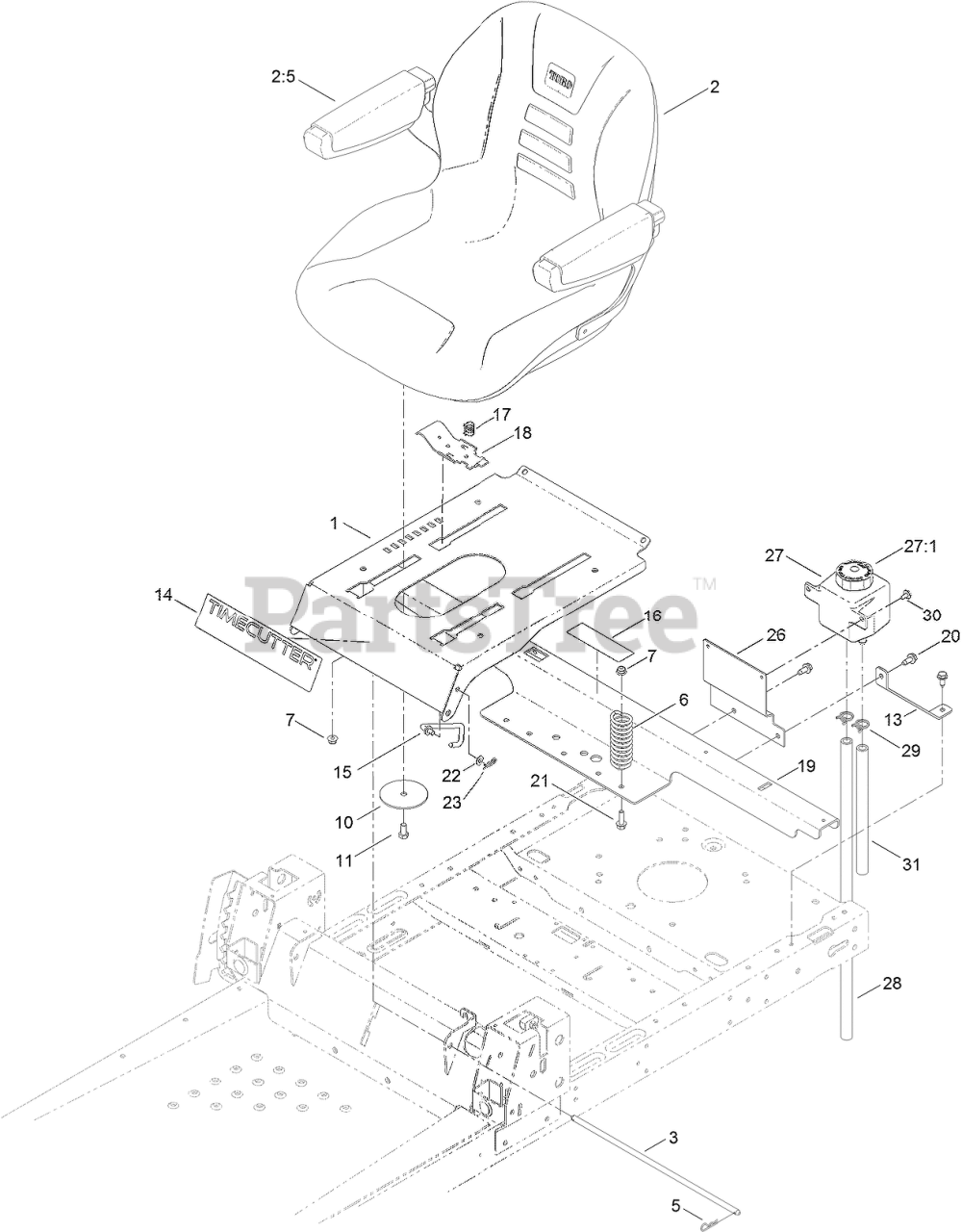

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3390-03

PAN-SEAT

$100.99

$

Usually ships in 3-6 days

0

2

Toro 115-5053

18 INCH SEAT ASM

$846.99

$

Usually ships in 3-6 days

0

2:5

Toro 119-3307

ARMREST KIT

$169.99

$

Usually ships in 3-6 days

0

3

Toro 115-4966

ROD-STOP

$19.99

$

Usually ships in 3-6 days

0

5

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

6

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 117-5307

WASHER-SEAT

$7.99

$

Usually ships in 3-6 days

0

11

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

13

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.49

$

Usually ships in 3-6 days

0

14

Toro 121-3019

DECAL-TIMECUTTER

$10.99

$

Usually ships in 3-6 days

0

15

Toro 119-8972

STOP-SEAT

$7.99

$

Usually ships in 3-6 days

0

16

Toro 106-8717

DECAL-SERVICE, CE

$7.99

$

Usually ships in 3-6 days

0

17

Toro 115-9624

SPRING-COMPRESSION

$1.99

$

In Stock, only 1 left!

0

18

Toro 115-9623

LATCH-SEAT

$19.99

$

In Stock, only 1 left!

0

19

Toro 119-3414-03

SUPPORT-POD
(Superseded to 131-1039-03)

$124.99

$

Usually ships in 3-6 days

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

26

Toro 120-7970-03

MOUNT-TANK

$26.99

$

Usually ships in 3-6 days

0

27

Toro 109-2250

VENT-TANK, HYD

$66.99

$

In Stock, only 4 left!

0

27:1

Toro 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 3 left!

0

28

Toro 121-2951

HOSE-OVERFLOW

$9.49

$

Usually ships in 3-6 days

0

29

Toro 117-1193

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

30

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

31

Toro 121-2952

HOSE-OVERFLOW

$5.49

$

Usually ships in 3-6 days

0
