74633 (SS 4235) - Toro 42" TimeCutter Zero-Turn Mower (SN: 313000001 - 313100000) (2013) SEAT ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

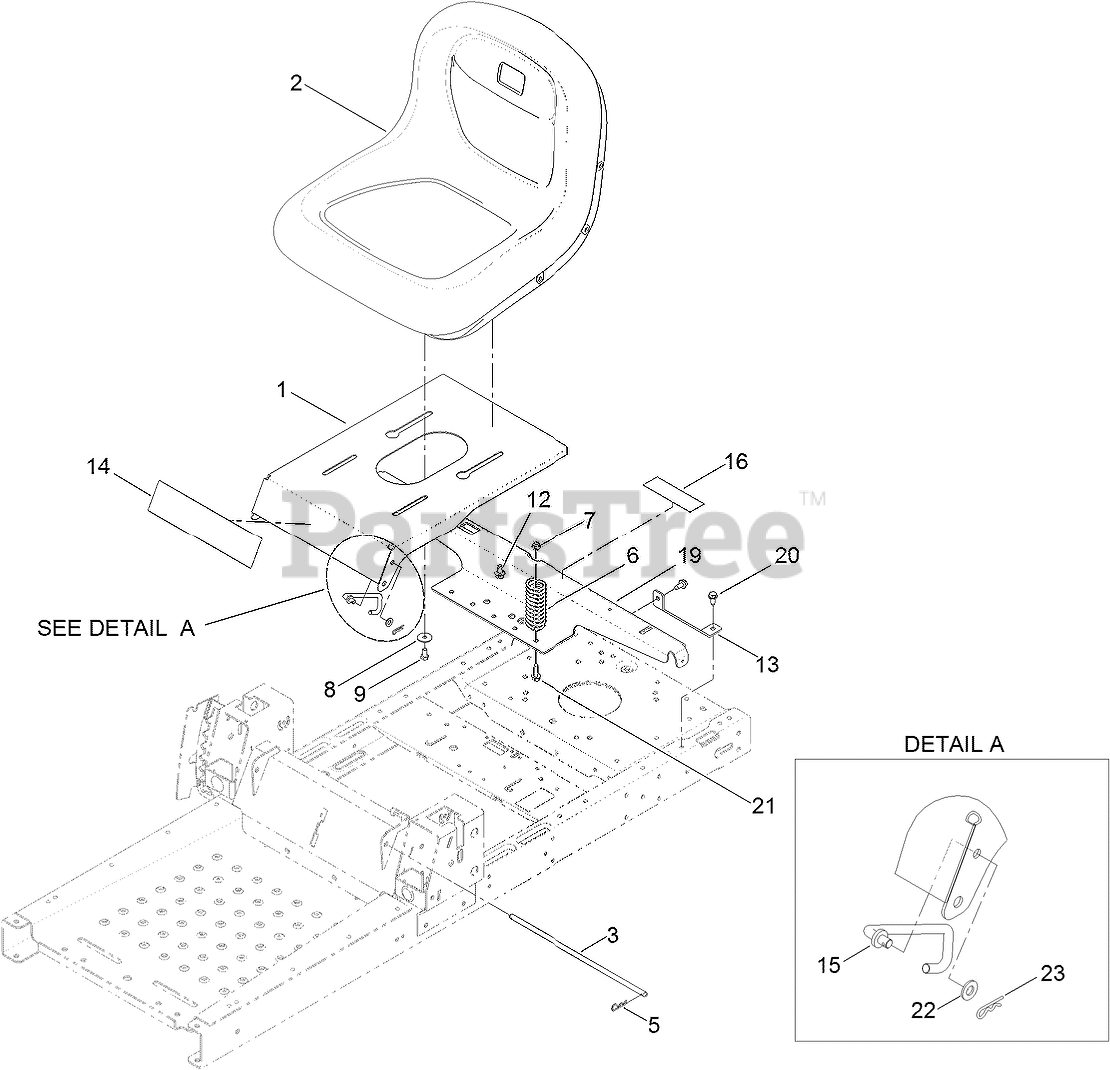

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3391-01

PAN-SEAT
(Superseded to 133-4468)

$102.99

$

Usually ships in 3-6 days

0

2

Toro 119-8828

SEAT-15 INCH

$347.99

$

Usually ships in 3-6 days

0

3

Toro 119-3433

ROD-PIVOT, NARROW

$12.99

$

Usually ships in 3-6 days

0

5

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

6

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

9

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

12

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, Qty 13

0

13

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.49

$

Usually ships in 3-6 days

0

14

Toro 120-5458

DECAL-TIMECUTTER

$22.99

$

Usually ships in 3-6 days

0

15

Toro 119-8972

STOP-SEAT

$7.99

$

Usually ships in 3-6 days

0

16

Toro 106-8717

DECAL-SERVICE, CE

$7.99

$

Usually ships in 3-6 days

0

19

Toro 121-0732-03

SUPPORT-POD

$128.99

$

Usually ships in 3-6 days

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0
