74632 (SS 5060) - Toro 50" TimeCutter Zero-Turn Mower (SN: 313000001 - 313999999) (2013) BODY STYLING AND FUEL POD ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

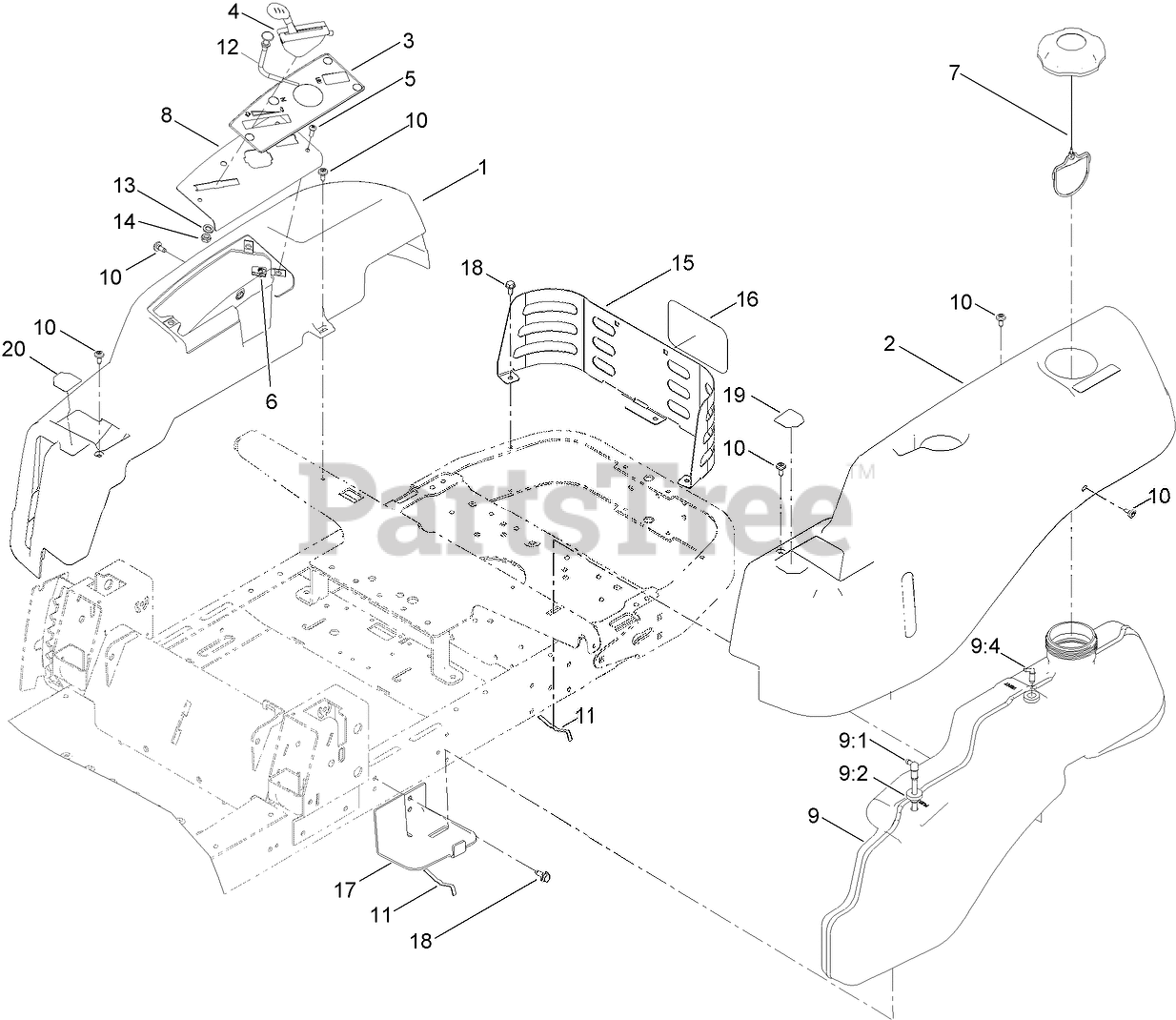

BODY STYLING AND FUEL POD ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3338

POD-RH

$77.99

$

Usually ships in 3-6 days

0

2

Toro 119-3337

POD-LH

$77.99

$

In Stock, only 1 left!

0

3

Toro 121-0773

DECAL-PANEL, CONTROL

$14.99

$

In Stock, only 1 left!

0

4

Toro 121-0769

CABLE-THROTTLE

$50.99

$

In Stock, only 1 left!

0

5

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

7

Toro 120-5461

CAP-FUEL, RATCHETING
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

8

Toro 119-3377-03

PLATE-CONTROL

$12.99

$

Usually ships in 3-6 days

0

9

Toro 119-3324

FUEL TANK ASM

$322.99

$

In Stock, only 2 left!

0

9:1

Toro 121-0793

CONNECTOR-ELBOW, 90 DEG

$11.99

$

In Stock, only 1 left!

0

9:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 10

0

9:4

Toro 117-7400

FITTING-PLASTIC

$6.49

$

In Stock, only 4 left!

0

10

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

11

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

12

Toro 112-9753

CABLE-CHOKE

$45.99

$

In Stock, Qty 18

0

13

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

14

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

15

Toro 119-3304-03

GUARD-REAR

$60.99

$

Usually ships in 3-6 days

0

16

Toro 99-4693

DECAL

$25.99

$

In Stock, only 1 left!

0

17

Toro 119-3395-03

SUPPORT-TANK, FRONT

$17.99

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

19

Toro 119-8814

DECAL-CONTROL LEVER, LH

$2.99

$

In Stock, only 1 left!

0

20

Toro 119-8815

DECAL-CONTROL LEVER, RH

$2.99

$

In Stock, only 2 left!

0
