74631 (SS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

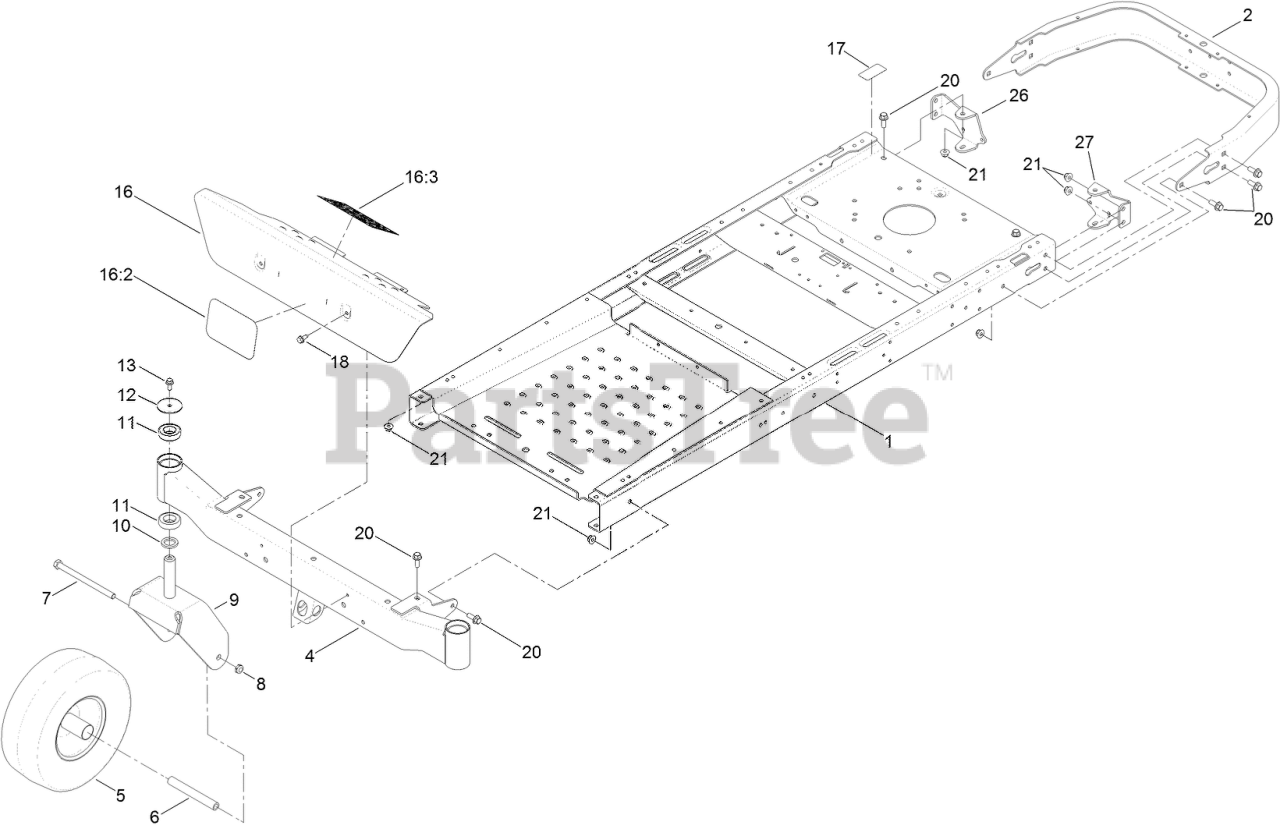

FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 120-7963-01

FRAME

$531.99

$

Usually ships in 3-6 days

0

2

Toro 117-7415-01

BUMPER-REAR (WIDE)

$136.99

$

Usually ships in 3-6 days

0

4

Toro 120-5513-01

AXLE-FRONT, WIDE
(Superseded to 121-5683-01)

$377.99

$

Usually ships in 3-6 days

0

5

Toro 119-3473

13 INCH WHEEL AND TIRE ASM

$117.99

$

In Stock, Qty 11

0

6

Toro 119-3475

SPANNER

$11.99

$

In Stock, Qty 20+

0

7

Toro 325-37

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 119-3349-01

FORK-CASTER

$166.99

$

In Stock, only 4 left!

0

10

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

11

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Toro 119-8915

WASHER

$2.99

$

In Stock, only 2 left!

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

16

Toro 125-0074

FOOTREST ASM
(Superseded to 132-0892)

$217.99

$

Usually ships in 3-6 days

0

16:2

Toro 99-4693

DECAL

$25.99

$

In Stock, Qty 10

0

16:3

Toro 120-2239

DECAL-DANGER
(Superseded to 132-0869)

$10.99

$

Usually ships in 3-6 days

0

17

Toro 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 121-0737-01

MOUNT-HYDRO, REAR (RH)

$17.99

$

Usually ships in 3-6 days

0

27

Toro 121-0738-01

MOUNT-HYDRO, REAR (LH)

$17.99

$

Usually ships in 3-6 days

0
