74631 (SS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) BATTERY AND ELECTRICAL ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

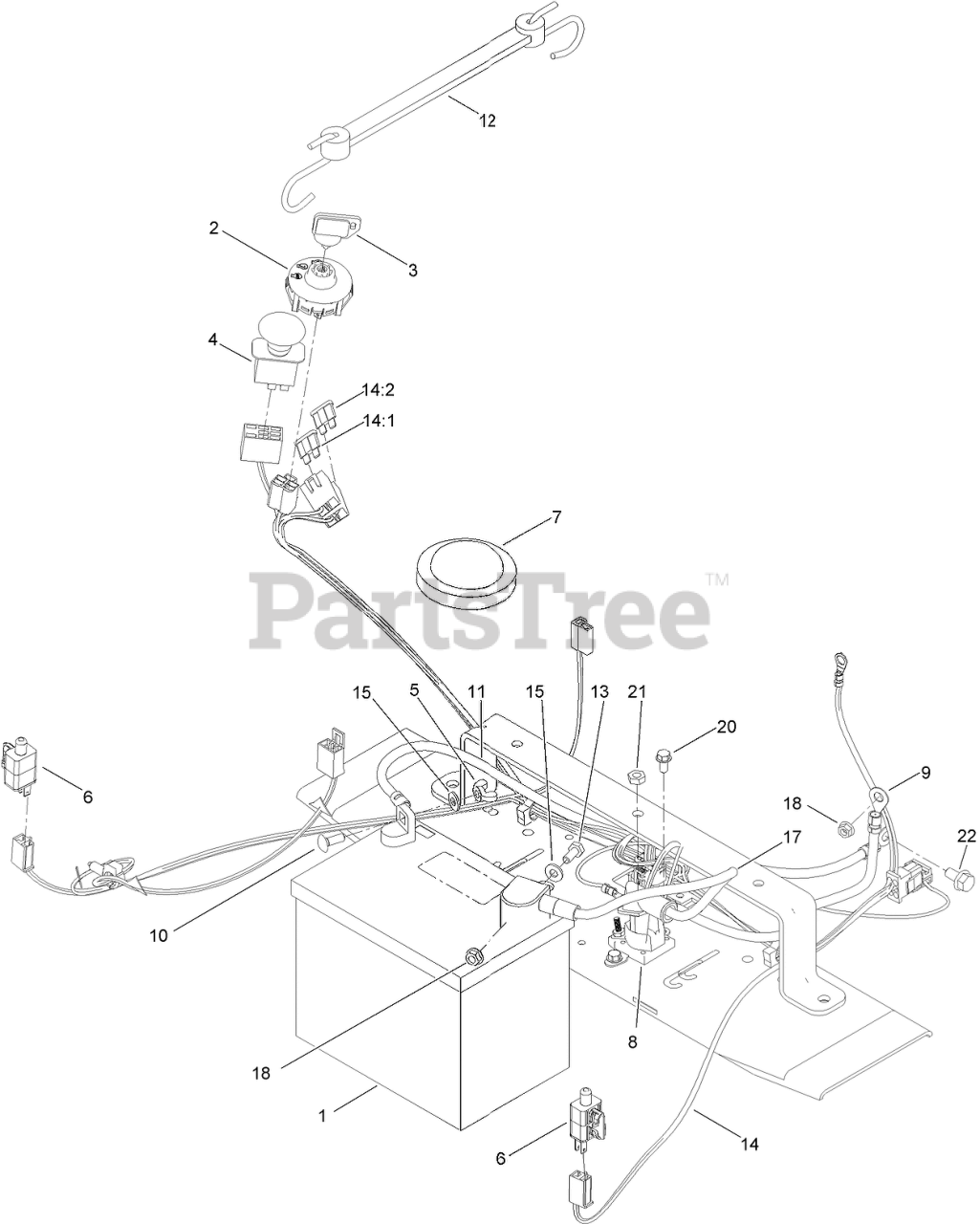

BATTERY AND ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 105-1692

BATTERY

$

$

Not available

2

Toro 117-2221

SWITCH-IGNITION
(Superseded to 137-4100)

$37.99

$

In Stock, Qty 20+

0

3

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

4

Toro 103-5221

SWITCH-PTO

$55.99

$

In Stock, Qty 20+

0

5

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

6

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 8

0

7

Toro 100-3524

SWITCH-SEAT

$60.99

$

In Stock, only 4 left!

0

8

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

9

Toro 119-8898

CABLE-BATTERY, RED

$17.99

$

In Stock, only 1 left!

0

10

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 119-8899

CABLE-BATTERY, BLACK

$17.99

$

In Stock, only 1 left!

0

12

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 121-5652

HARNESS-WIRE
(Superseded to 136-9184)

$156.99

$

Usually ships in 3-6 days

0

14:1

Toro 109103

FUSE-BLADE, 30 AMP

$6.49

$

In Stock, Qty 6

0

14:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, Qty 9

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 119-8897

CABLE-BATTERY, RED

$21.99

$

In Stock, only 1 left!

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

22

Toro 33104-016

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0
